Promat Fire rated glass and glazing systems

Specified for a reason®

Promat’s fire rated glass and glazing systems offer assured fire protection along with an aesthetically pleasing solution. These products and systems maximise light transmission and create an open-plan, contemporary environment within new-build and renovated properties.

Promat provide a wide variety of fully tested fire-resistant glass and glazing systems with fire ratings ranging from 30 minutes up to 120 minutes (integrity and integrity & insulation). Our experts are ready to provide project and technical support to deliver the most effective passive fire protection solution for your requirements.

Fire-resistant glass and glazing systems: Why Promat

Fire-resistant glass and glazing systems: Why Promat

When we enter into a partnership, we leave nothing to chance. Here is what you can expect from us:

Comprehensive range of glass and glazing systems

ISO 9001:2015 and ISO 14001:2015 certified products

Systems produced in-house

Promat 360-degree Wheel of Assurance

Third-party testing and certification

Fire rated glass for OEM applications

Fire rated glass for OEM applications

Promat supply an extensive range of certified fire-resistant glass for OEM applications including doors, screens, windows and partitioning systems. For over 30 years, we have collaborated with architects, door fabricators, installers, joiners, glaziers partitioning manufacturers and glaziers providing technical assistance and continuous customer support. Processed in-house to ISO 9001:2015 and ISO 14001:2015 standards, our fire rated glass, including the PYROSEC® range are certified to third party standards (CERTIFIRE) for assured fire protection.

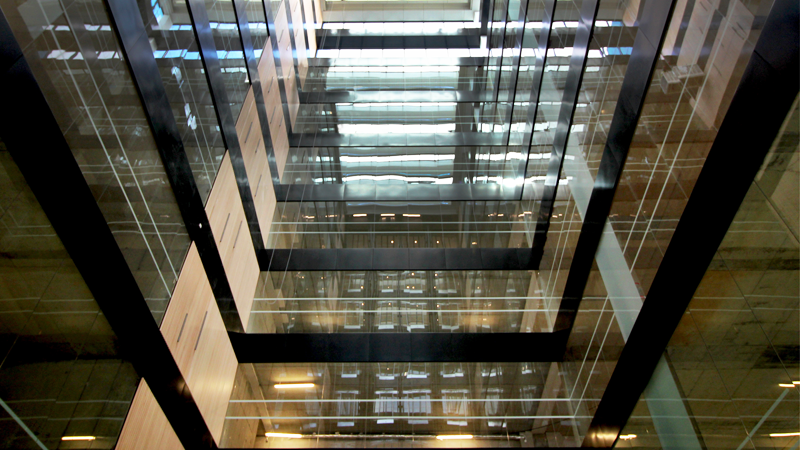

Fire rated glazing systems

Fire rated glazing systems

A fully certified fire rated glazing system reduces supply chain ambiguity, specification misinterpretation or risk of product substitution. For over 30 years, Promat’s SYSTEMGLAS® range of fire-resistant glazing systems have offered fire protection from 30 minutes (E30) up to 120 minutes (EI120), whilst creating contemporary aesthetics with butt-jointed glazing and a variety of framing options.

As part of the 360-degree Wheel of Assurance, the system is produced in-house by Promat, fitted by a Promat-approved installer and a Certificate of Conformity is issued upon completion for maximum peace of mind. A variety of framing options are available, including steel and timber along calcium silicate which can be concealed in walls and floors to offer a ‘virtually frameless’ solution or over clad to suit any building interior.

Classifications of fire-resistant glass

Classifications of fire-resistant glass

There are three classifications of fire rated glass.

E – Integrity – non insulating
The ability of a material to withstand fire exposure to one side without transmission of the fire as a result of the passage of flames or hot gasses. It acts as a physical barrier to stop the fire.

EW – Integrity and low radiation
The ability of a material not to collapse in order to prevent the passage of flame to limit the heat transfer through the material.

EI – Integrity & Insulation
The ability of a material to withstand fire exposure on one side without transmission of fire to the unexposed side by limiting heat transfer due to conduction, convection or radiation (in addition to integrity). It maintains a mean temperature of 140 °C and a maximum temperature of 180 °C on the non-fire side of construction.

Promat supply a wide variety of fire rated glass with different classifications to meet a range project requirements and specifications along with technical assistance and continuous support from concept through to completion.

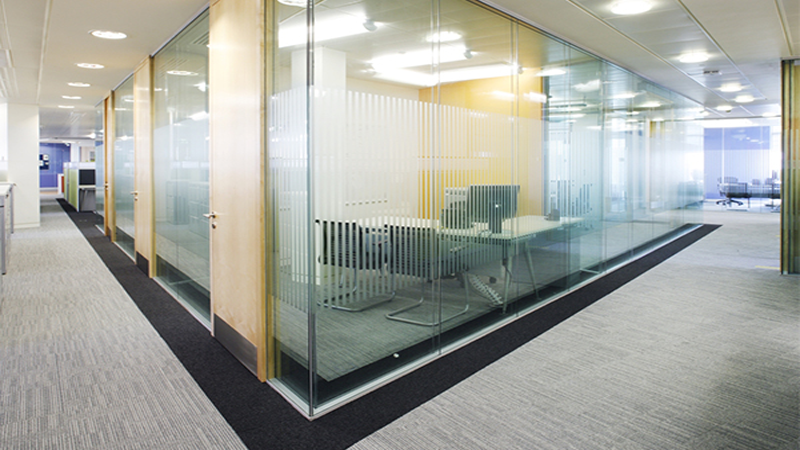

Fire rated glass - Types of framing

Fire rated glass - Types of framing



Fire resistant glass is always part of a system so there will always be framing or structure to retain the glass. The glass, framing and glazing materials should be tested as a system which means all components are compatible. Fire rated glass can be used with a variety of framing options, such as timber, steel and calcium silicate, to meet different project requirements and design options.

Promat supply a wide variety of fire rated glass for different framing options and applications, such as the PYROSEC® range, and also produce market leading SYSTEMGLAS® range of fire rated glazing systems with the 360o Wheel of Assurance which provides supply chain traceability. SYSTEMGLAS® Celare utilises a concealed calcium silicate frame for a contemporary ‘virtually frameless’ appearance, the over clad calcium silicate framing on SYSTEMGLAS® Advenerat complements a variety of building interiors. SYSTEMGLAS® Ligna utilises a timber framing, whilst SYSTEMGLAS® Ferro has a contemporary steel frame.

Find your fire-rated glass product or system

Search Now





Fire rated glass and glazing systems

Fire rated glass and glazing systems

Discover our product range and solutions

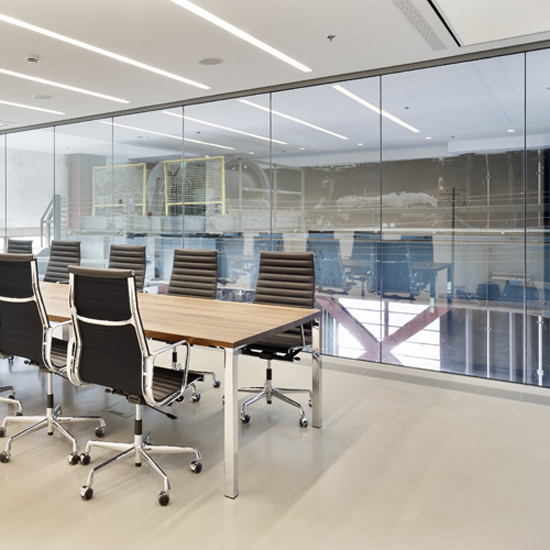

SYSTEMGLAS® Advenerat

SYSTEMGLAS® Advenerat

Innovative fire rated glazing system with over clad framing

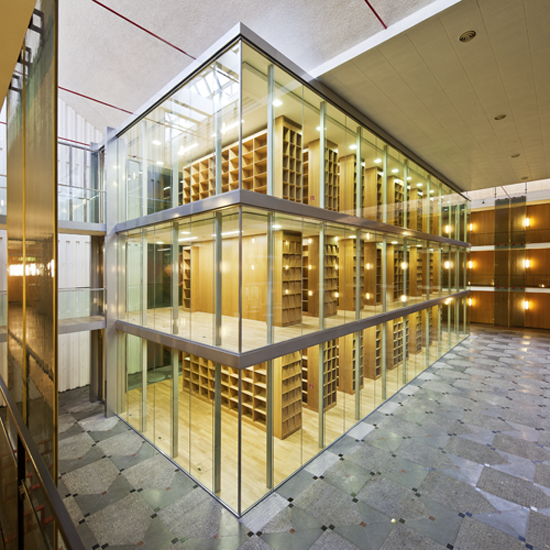

SYSTEMGLAS® Celare

SYSTEMGLAS® Celare

Innovative fire rated glazing system with over clad framing

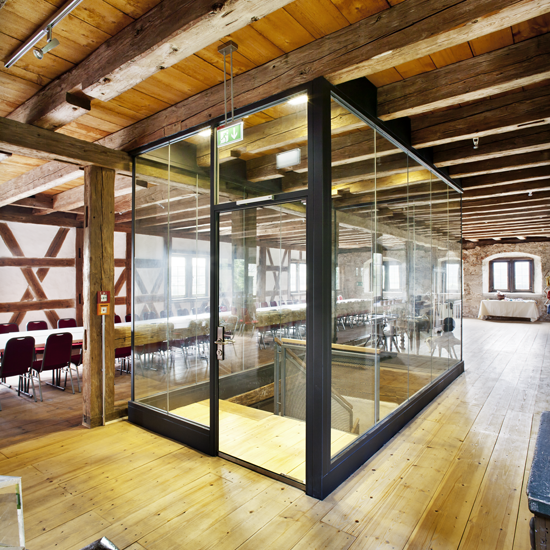

SYSTEMGLAS® Ferro

SYSTEMGLAS® Ferro

Pioneering fire rated glazing system with over steel framing

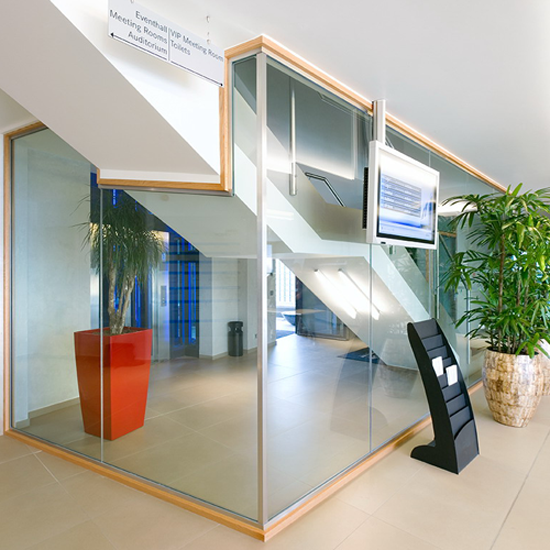

SYSTEMGLAS® Ligna

SYSTEMGLAS® Ligna

Contemporary fire rated glazing system with timber framing

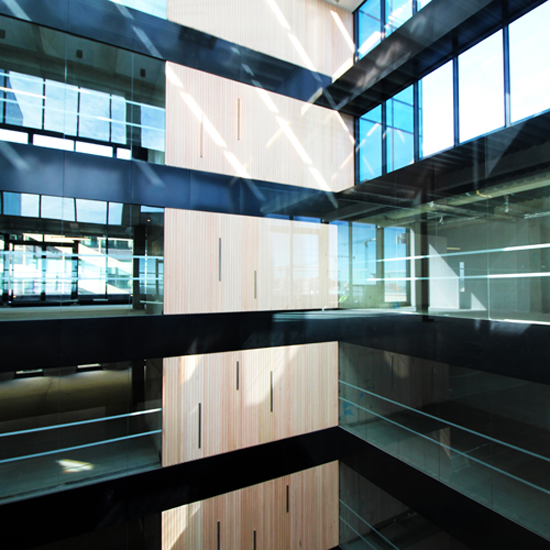

SYSTEMGLAS® F1

SYSTEMGLAS® F1

Specialist fire rated glazing system with intumescent gel

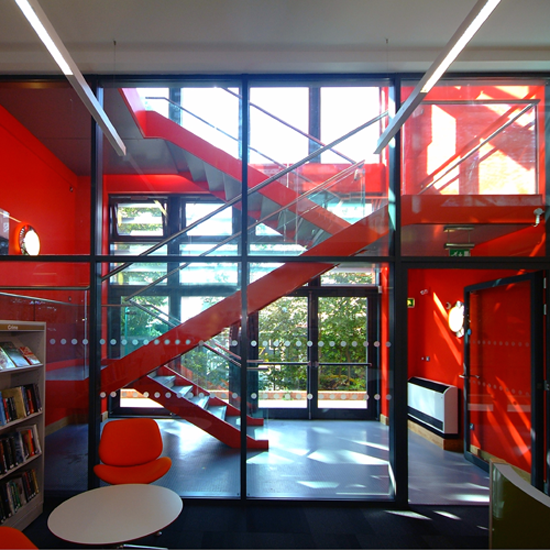

PYROSEC®

PYROSEC®

Versatile laminated fire rated glass

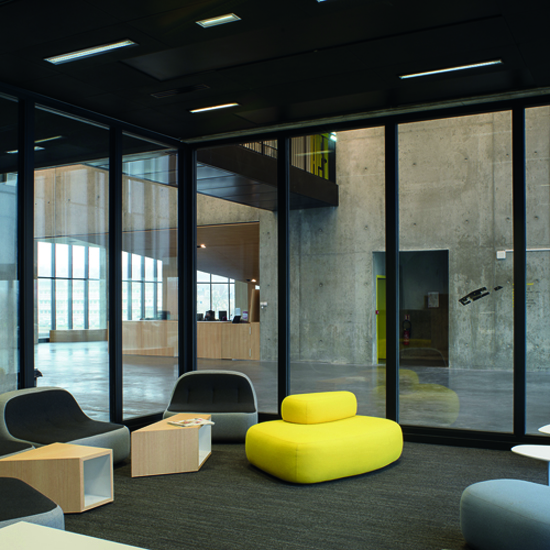

PROMAGLAS® F1

PROMAGLAS® F1

Specialist fire rated glass with intumescent gel

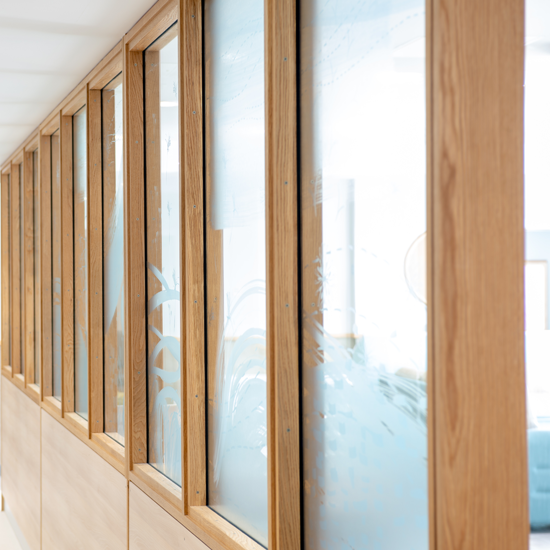

PYROSEC® 19

PYROSEC® 19

Durable fire/ physical attack glass

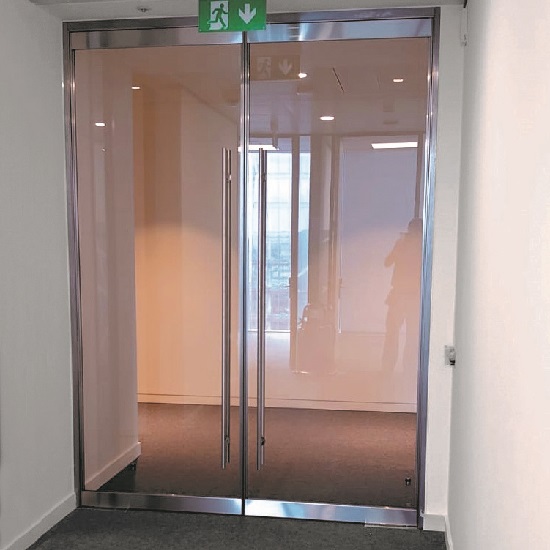

PYROSEC® Door

PYROSEC® Door

Modern glass fire doors

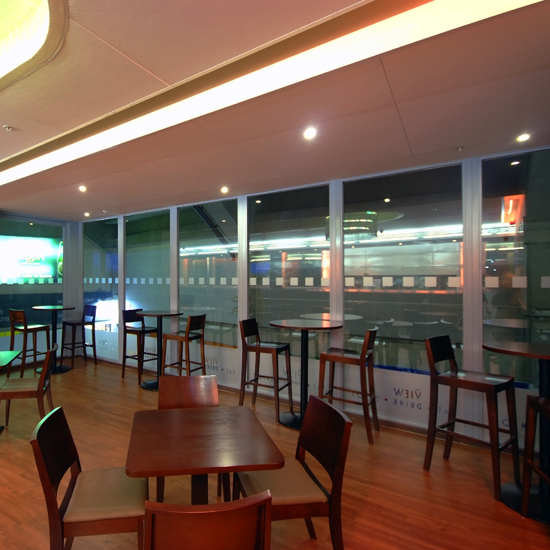

FIRELITE

FIRELITE

Leading fire rated ceramic glass

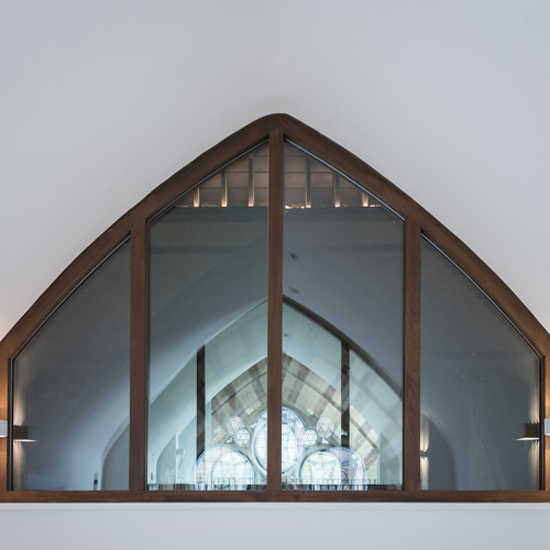

PYROBEL

PYROBEL

Laminated fire rated glass

PYROBELITE

PYROBELITE

Fire rated glass with float glass and intumescent layers
