PipeBloc® PWP Wrap

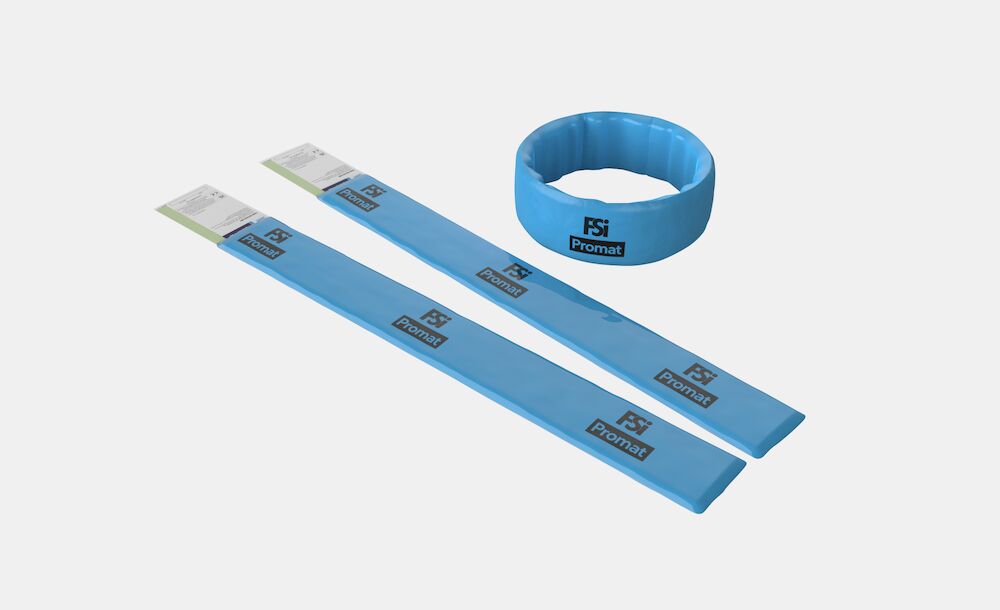

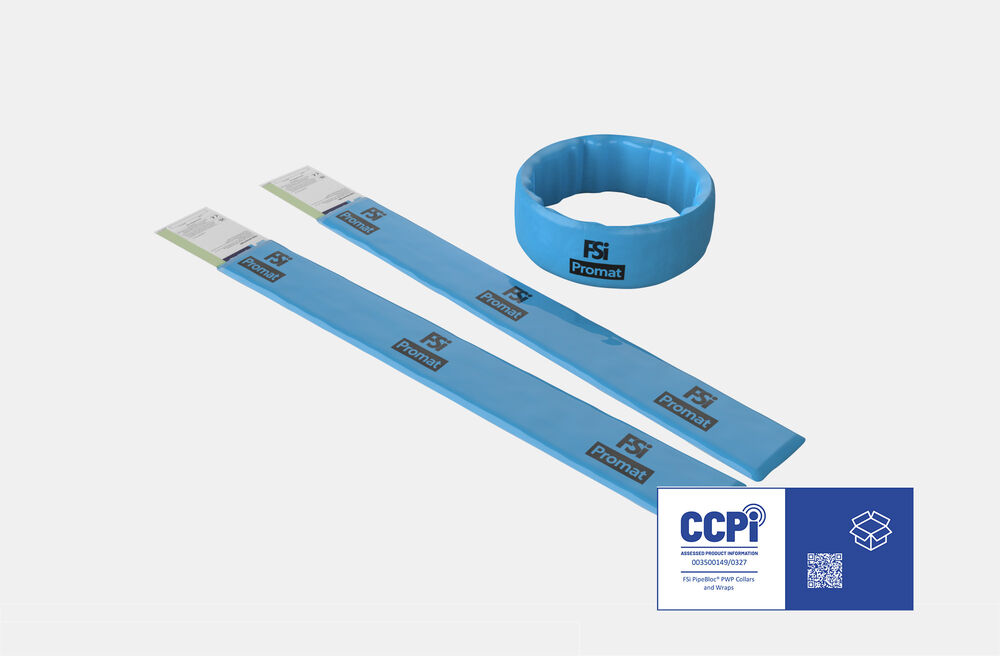

Pipebloc PWP is a fire resistant prefabricated pipe wrap consisting of a PE sheathing and an intumescent insert for interior penetration sealing applications. Pipebloc PWP is designed to provide a high volume expansion and pressure seal during a fire to combustible pipes that pass through floor and wall service openings.

PipeBloc® PWP Wrap

Further Information

Applications:

  • To reinstate fire resistance through walls and floors where combustible services penetrate the substrate
  • Used in conjunction with FSi products such as Stopseal® Batt, Silverseal Compound and Pyrocoustic® Sealant

Benefits:

  • Tested to BS EN 1366-3: 2009 (Fire resistance tests for service installations - Penetration seals)
  • Supplied pre-assembled, available in variety of sizes 40 - 160mm
  • Can be fixed directly to PROMASEAL® Fire Barrier batts.
  • Up to 240 minutes fire resistance* UL-EU Approval UL-EU-01022-CPR
  • CE Marked
  • UK CA Marked

Use Category: X, Y1, Y2, Z1, Z2
Storage Conditions: For unopened material, store in a well-ventilated, dry, cool environment. Recommended temp ranges +5°c - +35°c. Protect against exposure to direct sunlight. Always ensure that safe manual handling procedures are followed at all times
