PipeBloc® PCP Collar

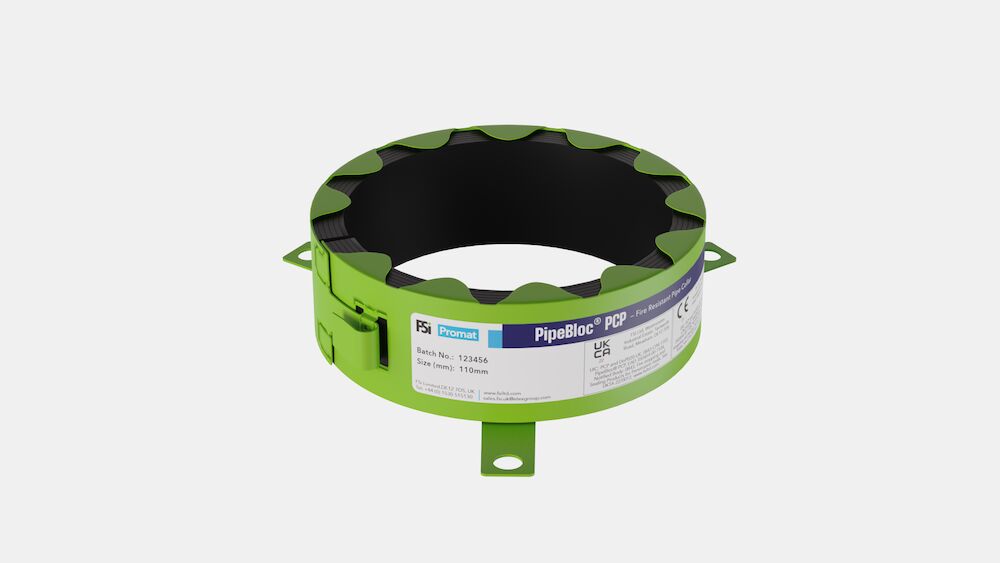

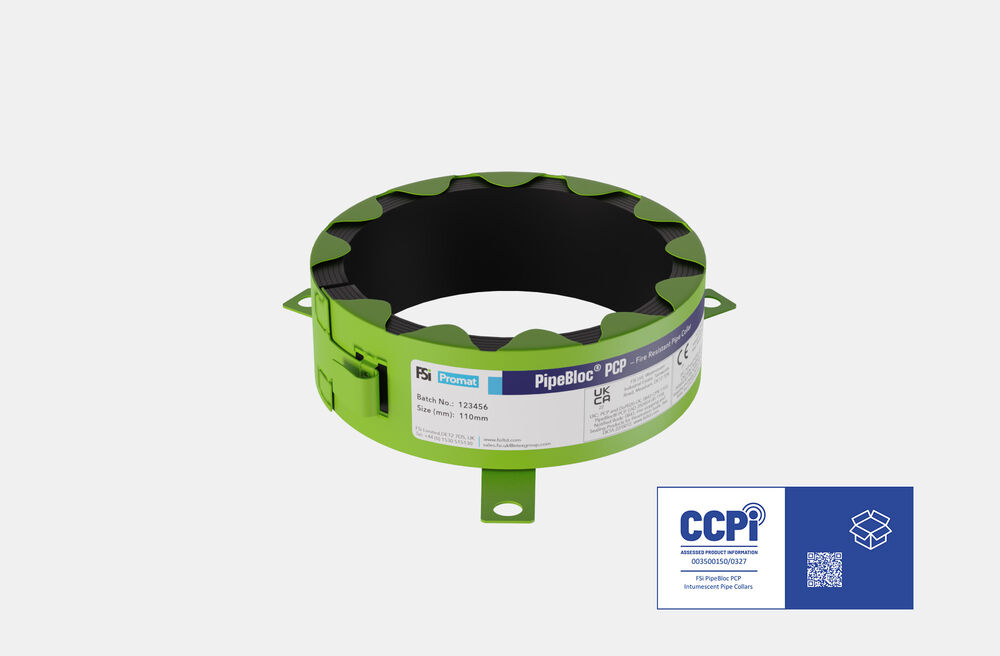

PipeBloc PCP is a fire resistant prefabricated pipe collar consisting of a metal casing and an intumescent insert for interior penetration sealing applications. PipeBloc PCP is designed to provide a high volume expansion and pressure seal during a fire to combustible pipes that pass through floor and wall service openings.

PipeBloc® PCP Collar

Further Information

Applications:

  • Wide range of collars from 55-160mm.
  • Tested on angled pipes.
  • Easy fixing method using common fixings or ‘pigtail’ screws.
  • Tested with a wide range of services, including plastic pipes, cables and insulated non-combustible pipes.
  • Allows mechanical movement of pipe. • Used in conjunction with FSi products such as Stopseal® Batt, Silverseal Compound and Pyrocoustic® Sealant

Benefits:

  • Tested to BS EN 1366-3: 2009 (Fire resistance tests for service installations - Penetration seals)
  • Supplied pre-assembled, available in variety of sizes 55 - 160mm
  • Ease of fixing to suit location – 5 fixing types tested (fixings not supplied)
  • Can be fixed directly to PROMASEAL® Fire Barrier batts.
  • Up to 240 minutes fire resistance
  • UL-EU approval UL-EU-00942
  • Allows thermal and mechanical movement of the pipe.
  • Halogen free, contains no asbestos, ceramic or mineral fibres.
  • CE Marked
  • UKCA Marked

Storage Conditions: For unopened material, store in a well-ventilated, dry, cool environment. Recommended temp ranges +5°c - +35°c. Protect against exposure to direct sunlight. Always ensure that safe manual handling procedures are followed at all times
