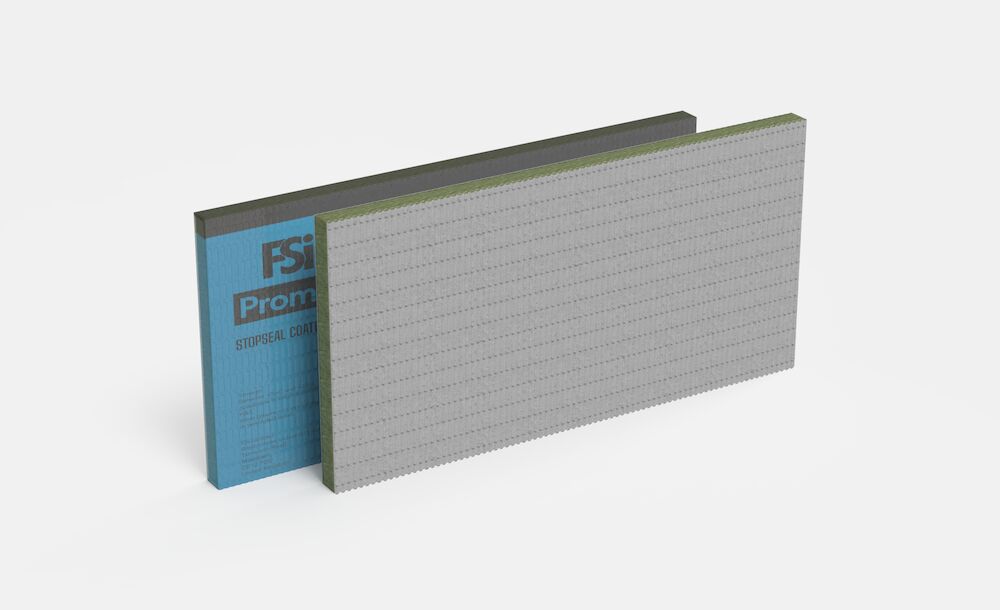

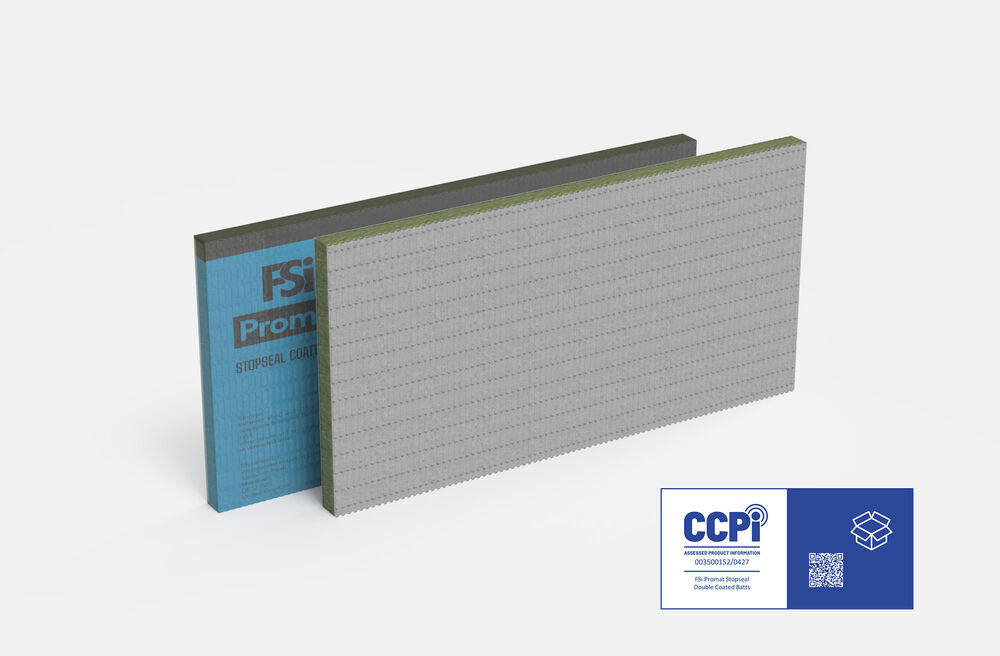

Stopseal® Batt

Stopseal® Batt is a mineral wool based protection board coated with the fire resistant, ablative coating on both sides. It can be combined with many other FSi passive fire protection products for sealing a wide range of installation service penetrations.

Stopseal® Batt

Further Information

Applications:

  • To reinstate fire resistance through walls and floors
  • Multi-service penetrations
  • Prevention of air leakage
  • Maintains Acoustic performance
  • Assumed working life 30 years · For internal use

Benefits:

  • Tested to BS EN 1366-3: 2009 (Fire resistance tests for service installations - Penetration seals)
  • Achieves fire resistance up to 120 minutes in floors and walls using single layer of Stopseal® Batt
  • Achieves fire resistance up to 240 minutes in walls using double layer of Stopseal® Batt
  • UL-EU approval UL-EU-00771-CPR
  • Easily cut to size
  • Quick and easy installation
  • Lightweight
  • CE Marked
  • UK CA Marked

Approx. Expansion Temperature (°C): 1000 °C
Use Category: Z1, Z2
Colour: White
