Flexi Coat®

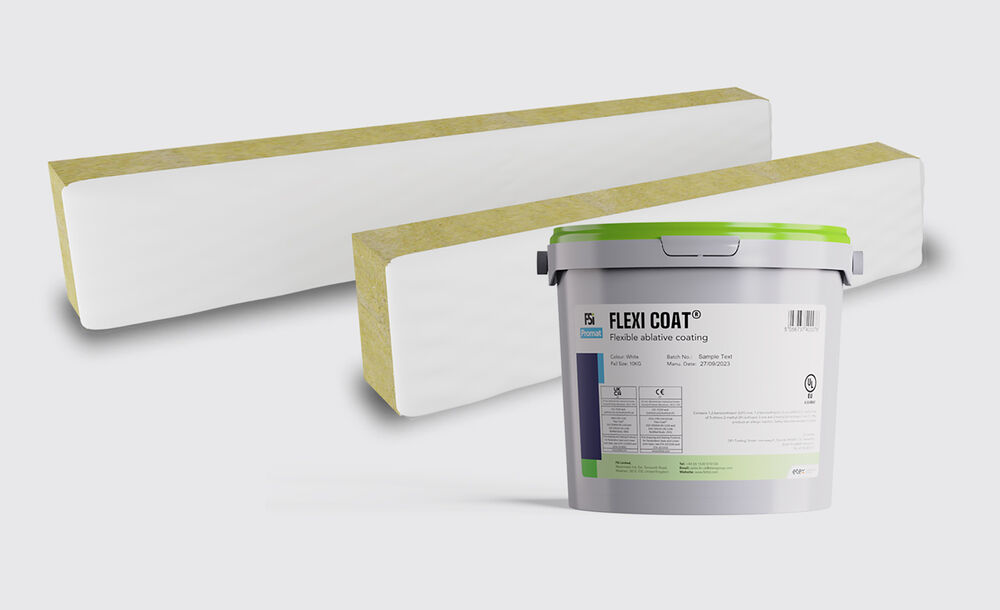

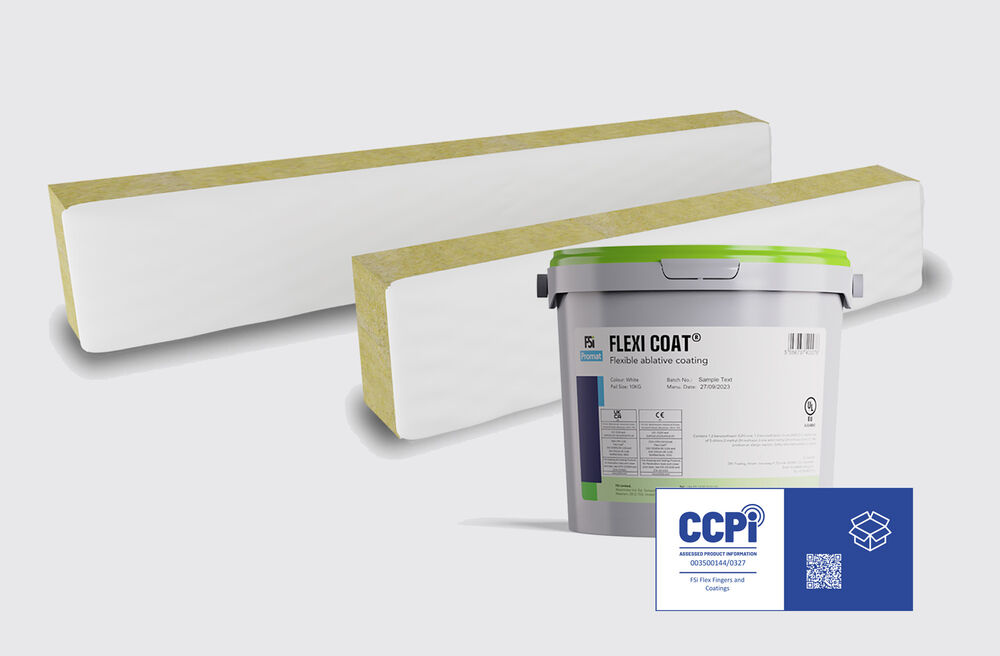

Flexi-Coat® is a highly advanced flexible penetration and aperture sealing system. The Flexi-Coat® is supplied in the form of both completed pre-coated Flexi-Coat® Fingers and as a coating to be applied to stone/mineral wool backing material. Flexi-Coat® has also been tested in accordance with EN1364-4 and is third party certified.

Further Information

Applications:

Flexible Walls: A wall used for the fire testing of penetration seals comprising of steel stud, Type F gypsum boards with or without mineral wool in the cavity, with an overall depth and make up appropriate to the required fire resistance. Rigid Walls: A wall made of aerated, lightweight, medium or high density blocks, lightweight or high density concrete with a thickness appropriate to the required fire resistance. Masonry: A brick or concrete wall with minimum density 850 Kg/m3, and 650 Kg/m3 for aerated concrete blocks. Rigid Floors: A floor made of aerated, lightweight or high density concrete and a thickness appropriate to the required fire resistance classification. Masonry/concrete floors to have a minimum density 850 Kg/m3, and 650 Kg/m3 for aerated concrete slabs

Benefits:

  • Tested to BS EN 1366-4: 2006(Fire resistance tests for service installations - Penetration seals)
  • UL EU Approval UL-EU-01023-CPR
  • Up to 240 minutes fire resistance (E240 / EI180)
  • Fire resistance testing in rigid and flexible walls, and rigid floors
  • Ideal for slab edge applications, head of wall movement, or where movement is expected in service penetrations
  • Air permeability and acoustic test data available
  • Suitable for indoor use without additional environmental protection
  • CE Marked
  • UKCA Marked
Approx. Expansion Temperature (°C): 180 °C
Solids Content (%): 70 %
Use Category: X, Y1, Y2, Z1, Z2
Storage Conditions: For unopened material, store in a well-ventilated, dry, cool environment. Recommended temp ranges +5°c - +35°c. Protect against exposure to direct sunlight. Always ensure that safe manual handling procedures are followed at all times
Storage Temperature Min (°C): 5 °C
Storage Temperature Max (°C): 35 °C
