PROMATECT®-100
PROMATECT®-100 comprises autoclaved calcium silicate spheres (PROMAXON® is a synthetic hydrated calcium silicate in spherical form) bound in a mineral matrix. PromaX® technology provides excellent fire performance in most applications.

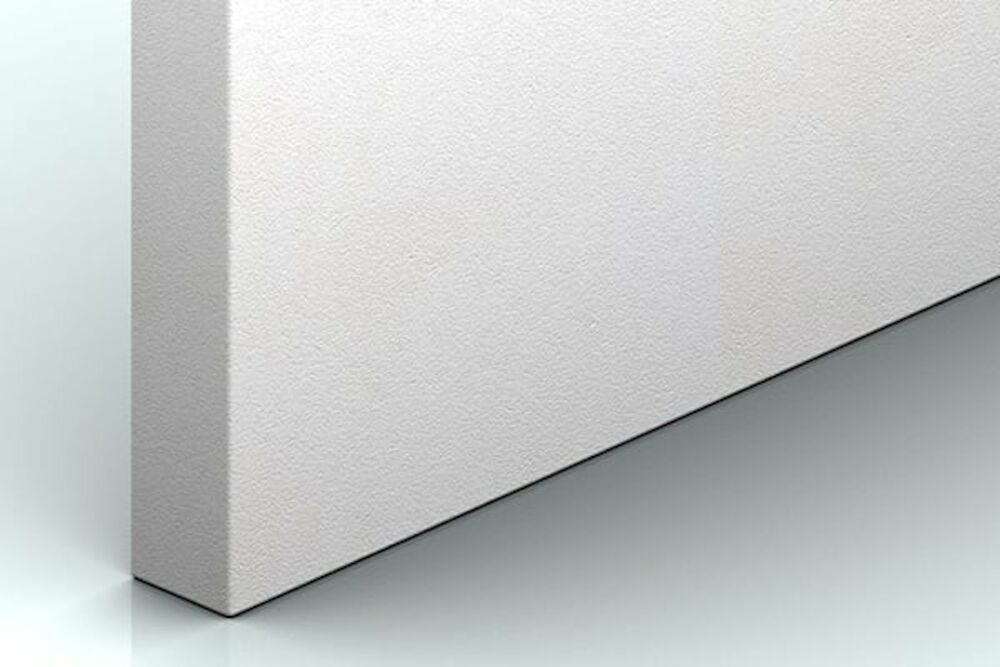

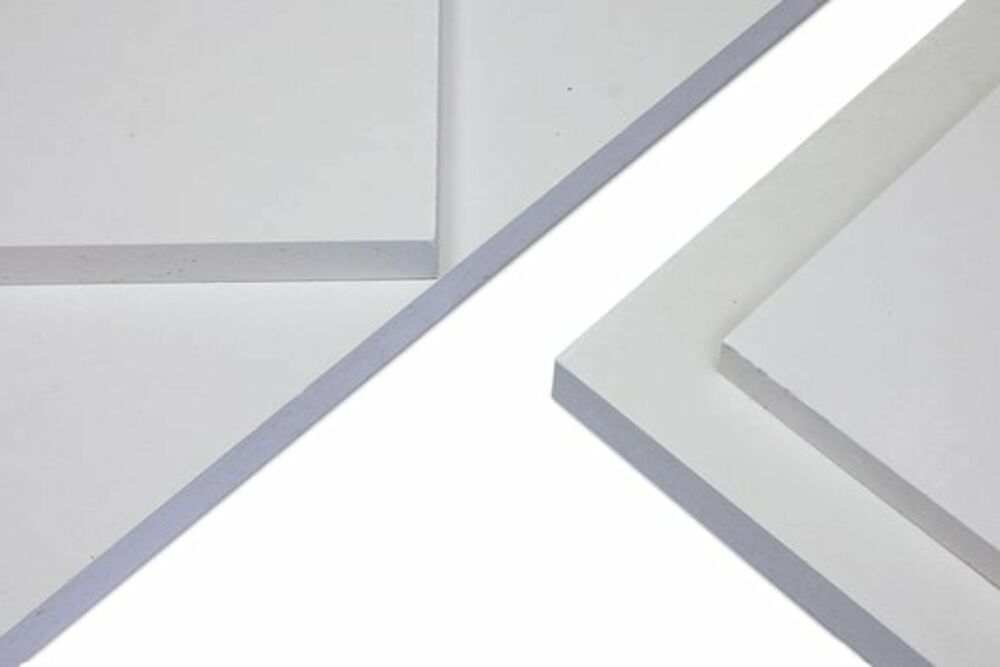

PROMATECT®-100 is off-white in colour. One face is smooth and ready to form a finished surface, able to receive almost any form of architectural/finish treatment. The reverse face is sanded.
PROMATECT®-100 is resistant to the effects of moisture and will not physically deteriorate when used in damp or humid conditions. Performance characteristics are not degraded by age or moisture. However, PROMATECT®-100 is not designed for use in areas subject to continual damp or high temperatures. PROMATECT®-100 is for internal applications only.
Further Information
Applications:
Protective membrane under steel or concrete structures. Ceiling. Partition.
Benefits:
- Single layer systems for walls and ceilings with high fire resistance
- High level of finish
- Most types of architectural finishes can be applied
- Non combustible A1
Reaction to fire:
A1, non-combustible
Use Category:
Z2
Approx. Alkalinity (pH):
7 pH
Approx. Dry Density (kg/m³):
875 kg/m³
Moisture Content Min (%):
1 %
Moisture Content Max (%):
3 %
Approx. Moisture Diffusion Resistance Min (μ):
3
Approx. Thermal Conductivity @ 20 °C (W/m°K):
0.285 W/m K
Bending Strength Longitudinal (N/mm²):
5 N/mm²
Tensile Strength Longitudinal (N/mm²):
1.21 N/mm²
Compressive Strength (N/mm² perpendicularly to the board surface):
6.6 N/mm²
Storage Conditions:
Store in a dry and well-ventilated space, under cover, on a flat surface.
Please note
All physical and mechanical values are averages based on standard production and tested according to internal procedures. The typical values are given for guidance. The figures can change dependent on the test methods used. If a particular value is of prime importance for a specification, please consult Promat Technical Department.
