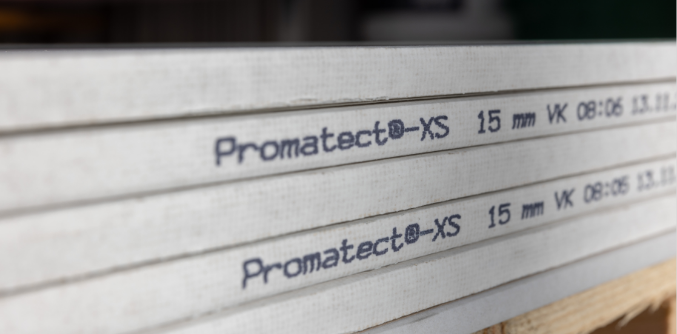

PROMATECT®-XS is an A1 non-combustible board designed to fire protect structural steel for up to 60 minutes. It’s durable and quick to install, even before the building is weathertight – making it ideal for early-stage construction. With no glue, filler or sub-framing needed, it saves time and space on site, without compromising on performance. Available in 15mm and 20mm thicknesses, it delivers a clean, boxed finish that’s ready to decorate. From columns to beams, it’s a smarter way to build in peace of mind.
PROMATECT®-XS now has bespoke junction testing, for interfaces between encasements and partitions - in collaboration with our sister company Siniat. One combined solution. Our boards. Their walls. A full-on steel solution that really pulls its weight.
One board. One system. Every angle covered. Promatect-XS is A1 non-combustible to EN 13501-1, and third-party classified to provide 60 minutes fire resistance. It installs quickly because it needs minimal framing. It holds its own for up to six months* exposed on site. And its junction details are fire tested so the edges are as robust as the face. Confidence, from every angle.
*subject to conditions – see brochure for more information.
A1 non-combustible board to EN 13501-1

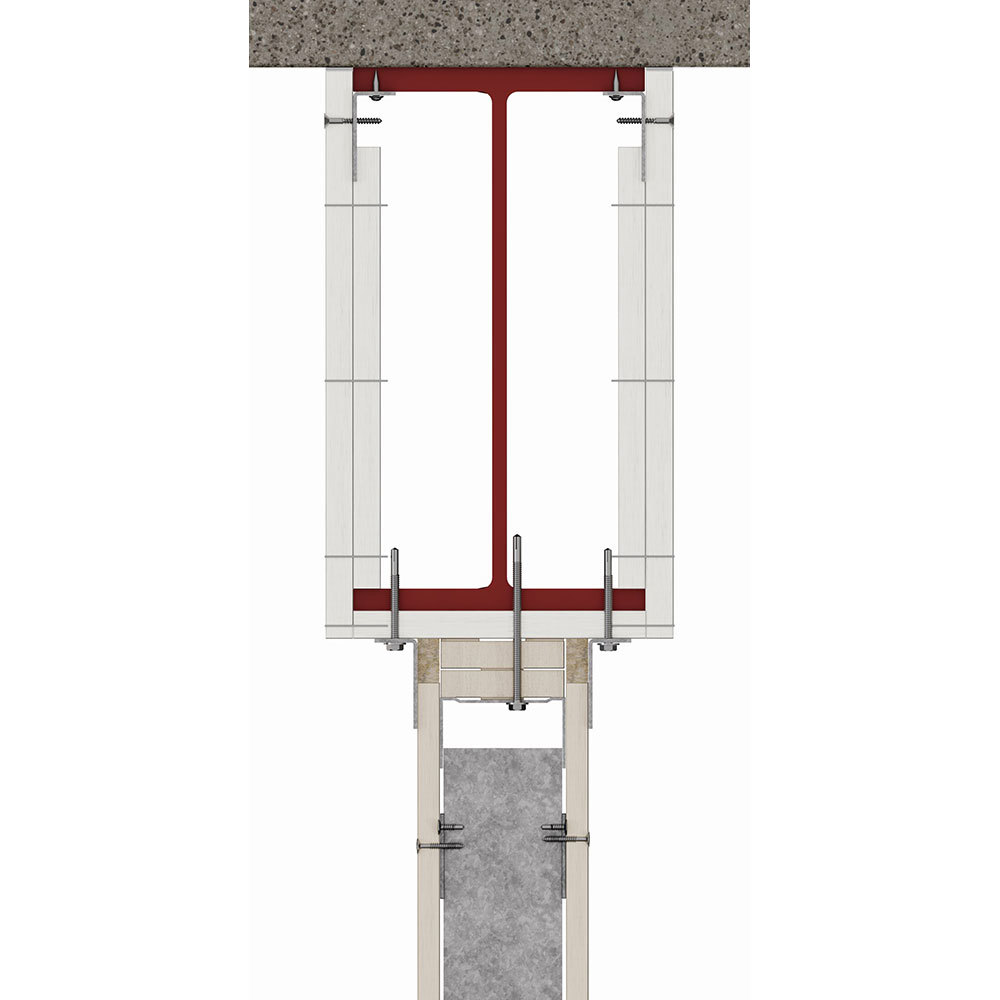

For interfaces between encasements and partitions
Minimal framing components required. Direct fix using staples.
EN tested and classified to achieve 60 minutes fire protection to EN 13501-2
Can be left exposed for up to 6 months, subject to specific conditions.
Additionally tested for fire integrity and insulation
Standard fire tests often overlook how steel encasements and partitions connect, leaving junctions unprotected.
That’s why Siniat and Promat have gone further, carrying out bespoke fire tests on partitions and encased beam and column interfaces, based on EN 1364-1:2015.
When specified by our Architectural Specification Managers and built to our guidance, these tested solutions are backed by the ETEX BP warranty.
Learn more about the features and benefits of PROMATECT®-XS, and get step-by-step guidance on using the product.
Enhance your knowledge and stay up to date with our comprehensive CPD course on fire protection for structural steel.
Access all technical documentation and guidance for PROMATECT®-XS to support your fire protection project.
Our guide explains the solutions to common challenges faced by architects when specifying passive fire protection for structural steel. It covers specifying compliant solutions in situations that fall outside of testing standards, and other complexities, helping you design in fire protection with complete confidence.
Question? A technical challenge we can help you with? Or would you like a comforting second opinion from a Promat expert? Just fill in the contact form and we will get back to you soon.
