ST P250-045S - PROMATECT-250®

2-Sided column protection up to 600mm x 600mm. Board fix to angle, angle fix to steel column.

A third party EN certified solution which maintains the loadbearing capacity of structural steel for up to 120 minutes. This system can provide protection to limiting steel temperatures between 350°C to 750°C.

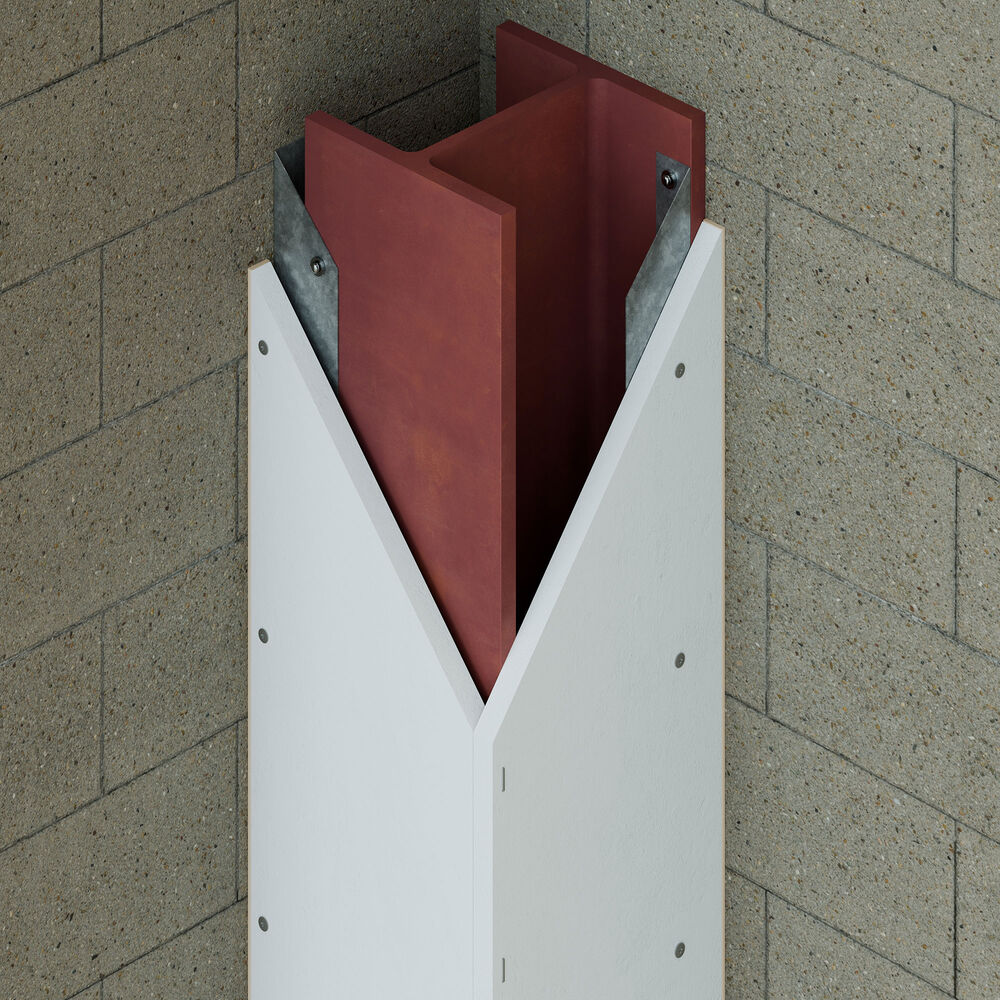

ST P250-045S-Option1

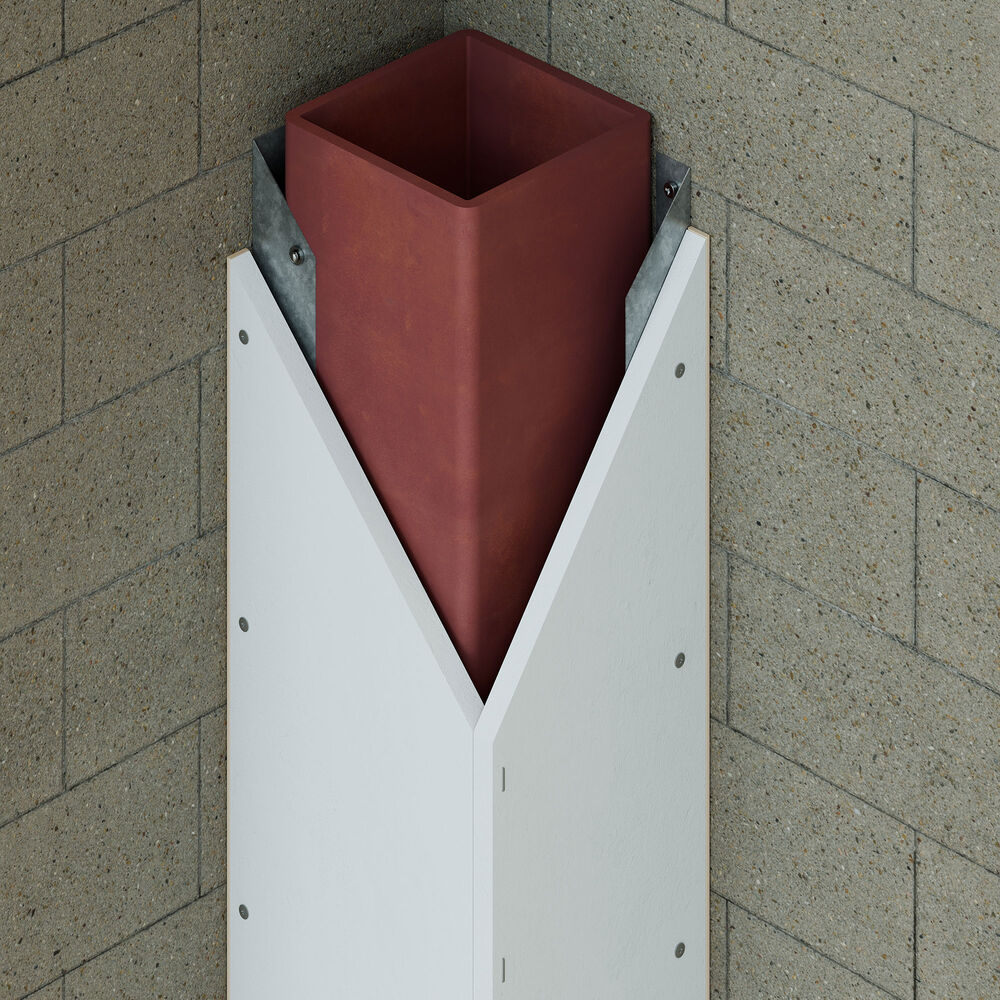

ST P250-045-Option2
ST P250-045S-Option1
ST P250-045-Option2

Further Information

Advantages:

  • EN certification covering a wide scope of application
  • Can be easily decorated if required
  • Limiting steel temperatures ranging from 350°C to 750°C
  • Board to board fixing, for faster installation whilst maximising useable space in the building

Application:

  • For the protection of hot-rolled structural steel
  • Warehouses, in conjunction with the mezzanine floor protection
  • Dry environments only
Fire Performance to EN 13381-4: 120 minutes
Max Steel Depth: 600 mm
Max Steel Width: 600 mm
Max Steel Section Factor: 350 A/V
