ST VLUX-010S - VERMICULUX-S®

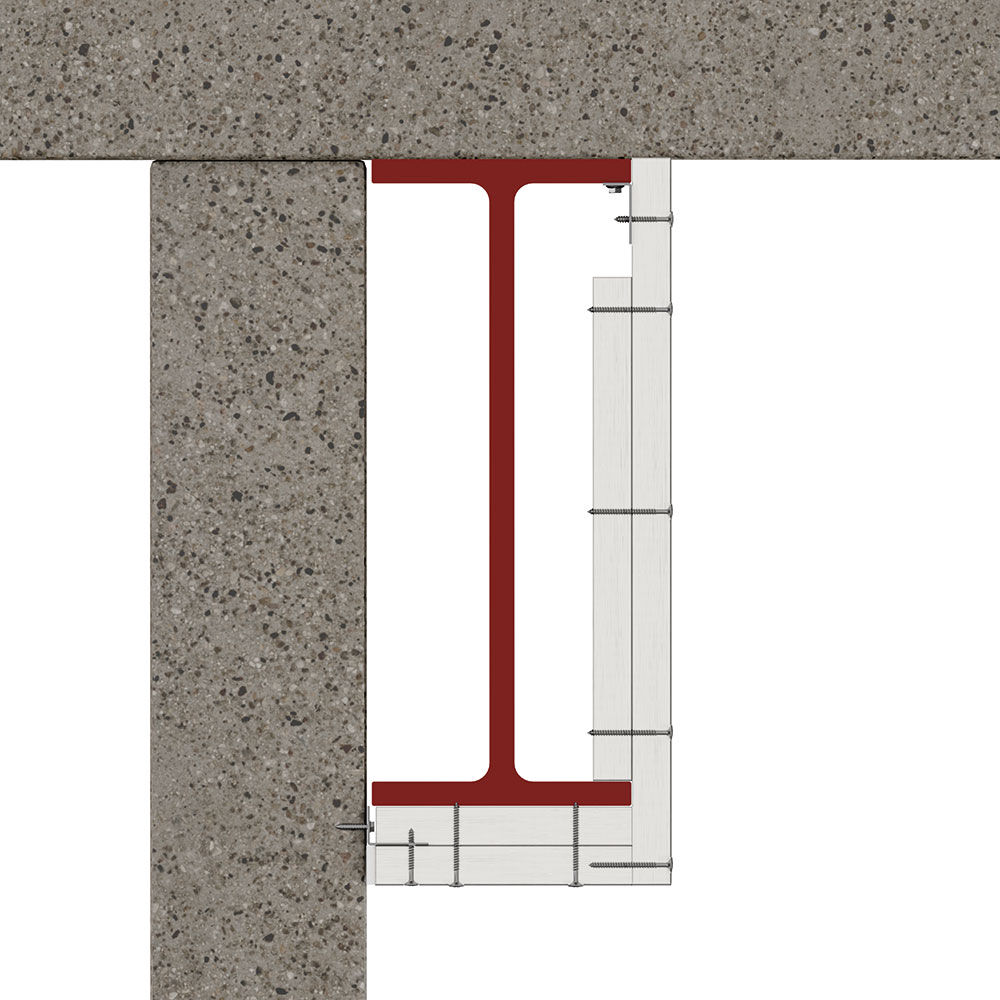

2 sided beam protection up to 609mm deep and 380mm wide. Board fix to angle, angle fixed to wall.
Further Information
Advantages:
- BS certification covering a wide scope of application
- Can be easily decorated if required
- Limiting steel temperatures ranging from 350°C to 750°C
- Board to board fixing, for faster installation whilst maximising useable space in the building
Application:
- For the protection of hot-rolled structural steel
- Suitable for semi-exposed and unheated spaces
Fire Performance To BS 476-21:
240 min
Max Steel Depth:
609 mm
Max Steel Width:
380 mm
Max Steel Section Factor:
275 A/V
