Name	Fire Performance to EN 13381-4	Fire Performance To BS 476-21	Max Steel Depth	Max Steel Width	Max Steel Section Factor	Number Of Sides Exposed	Environmental Conditions

ST P250-027S - PROMATECT-250® ST P250-027S - PROMATECT-250®	120 minutes	N/A	1200 mm	325 mm	350 A/V	4	N/A

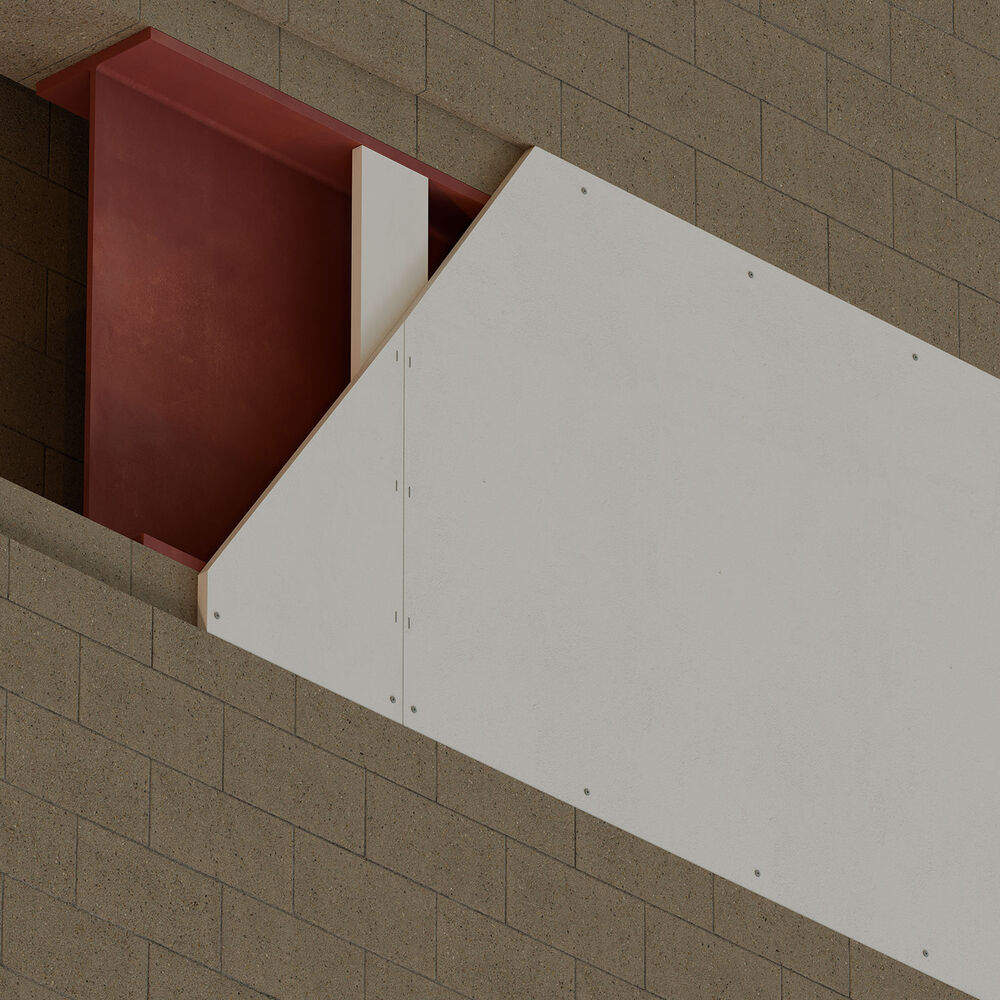

ST P250-003S - PROMATECT-250® ST P250-003S - PROMATECT-250®	120 minutes	N/A	600 mm	N/A	350 A/V	1	N/A

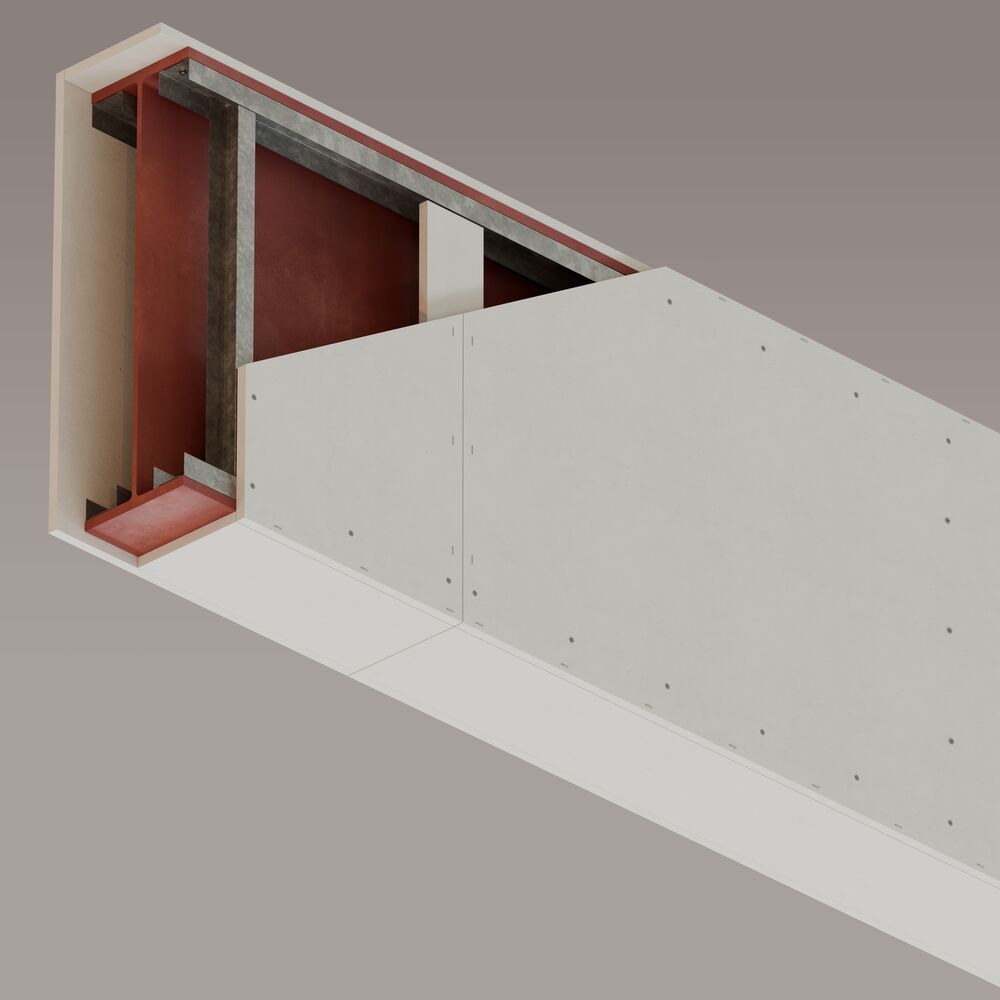

ST VLUX-020S - VERMICULUX-S® ST VLUX-020S - VERMICULUX-S®	N/A	240 min	2000 mm	380 mm	275 A/V	4	N/A

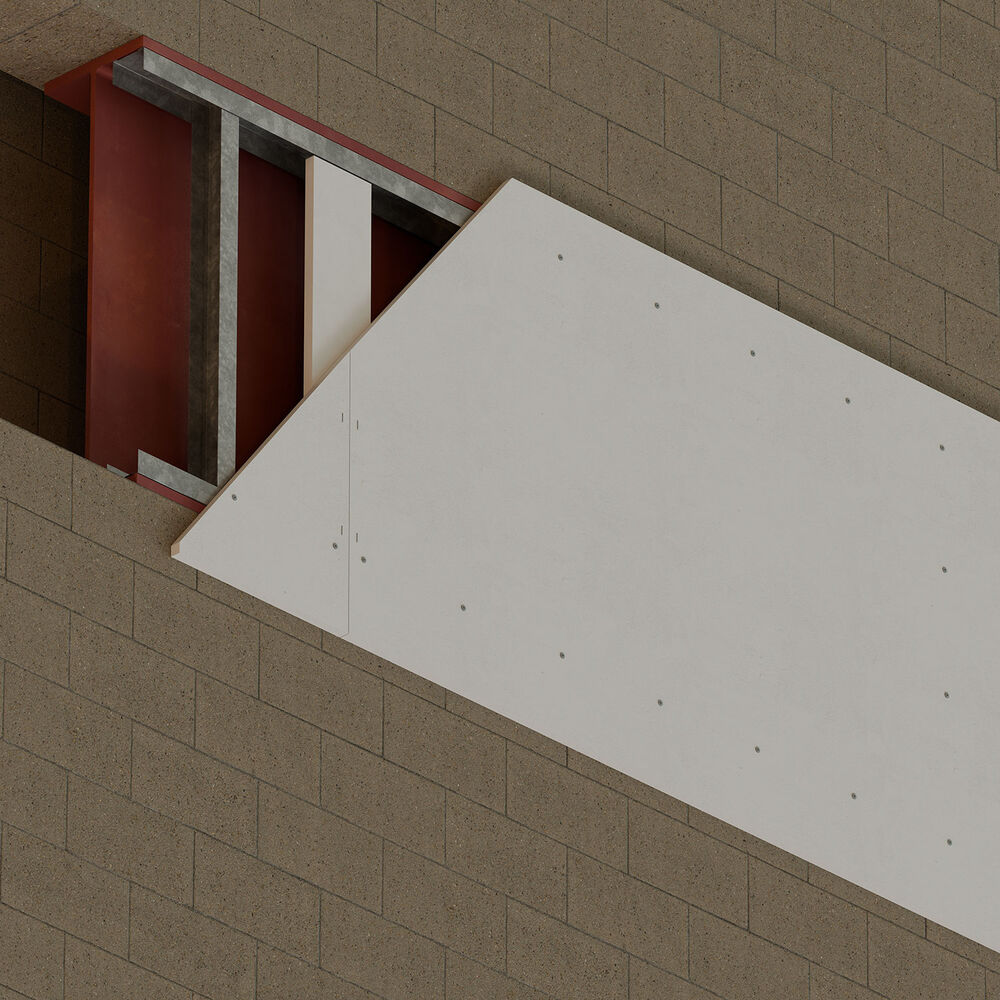

ST P250-033S - PROMATECT-250® ST P250-033S - PROMATECT-250®	120 minutes	N/A	1200 mm	325 mm	350 A/V	1	N/A

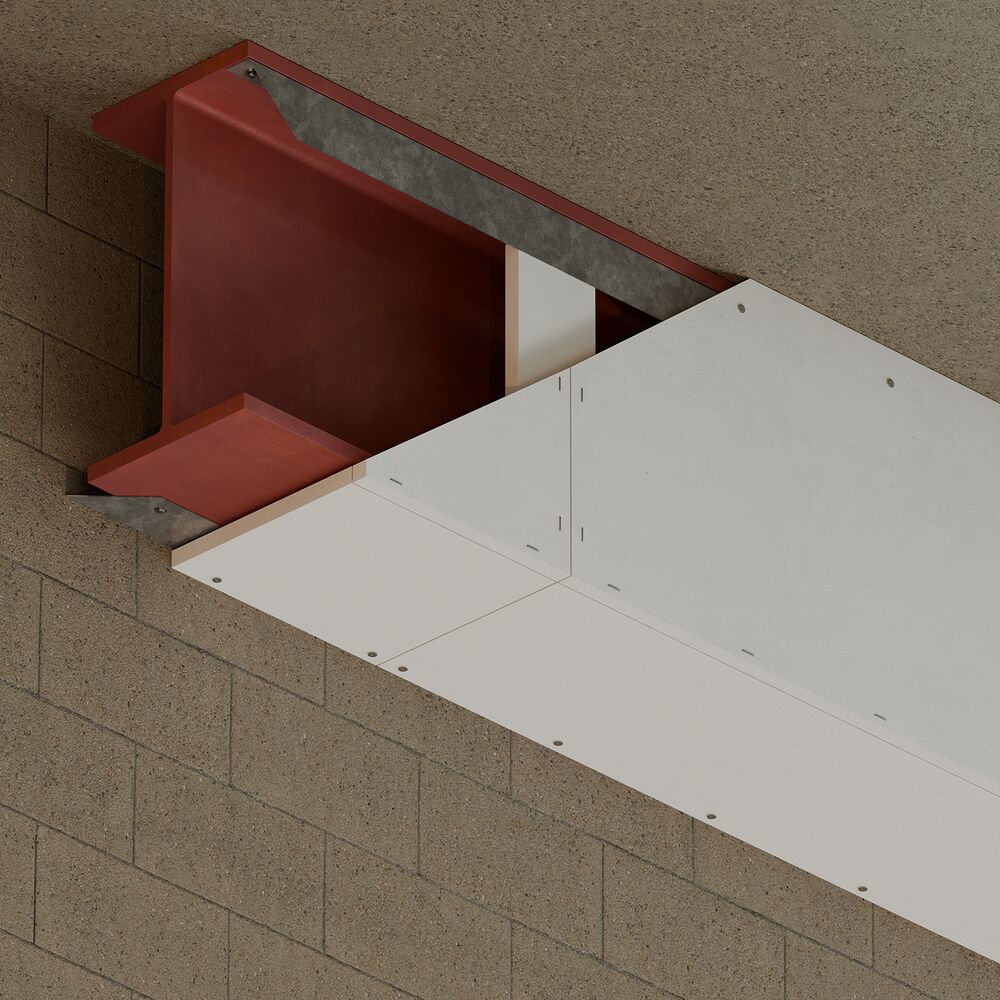

ST P250-011S - PROMATECT-250® ST P250-011S - PROMATECT-250®	120 minutes	N/A	600 mm	325 mm	350 A/V	2	N/A

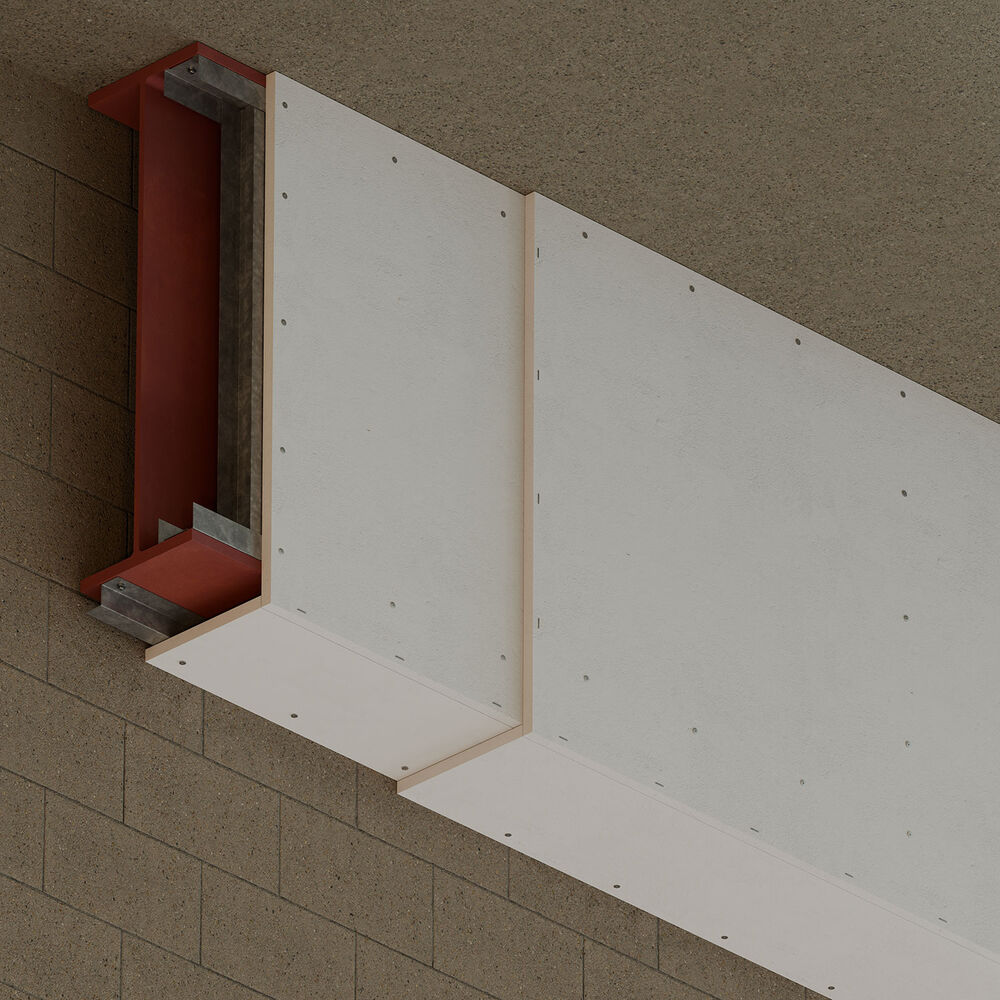

ST P250-030S - PROMATECT-250® ST P250-030S - PROMATECT-250®	120 minutes	N/A	1200 mm	325 mm	350 A/V	2	N/A

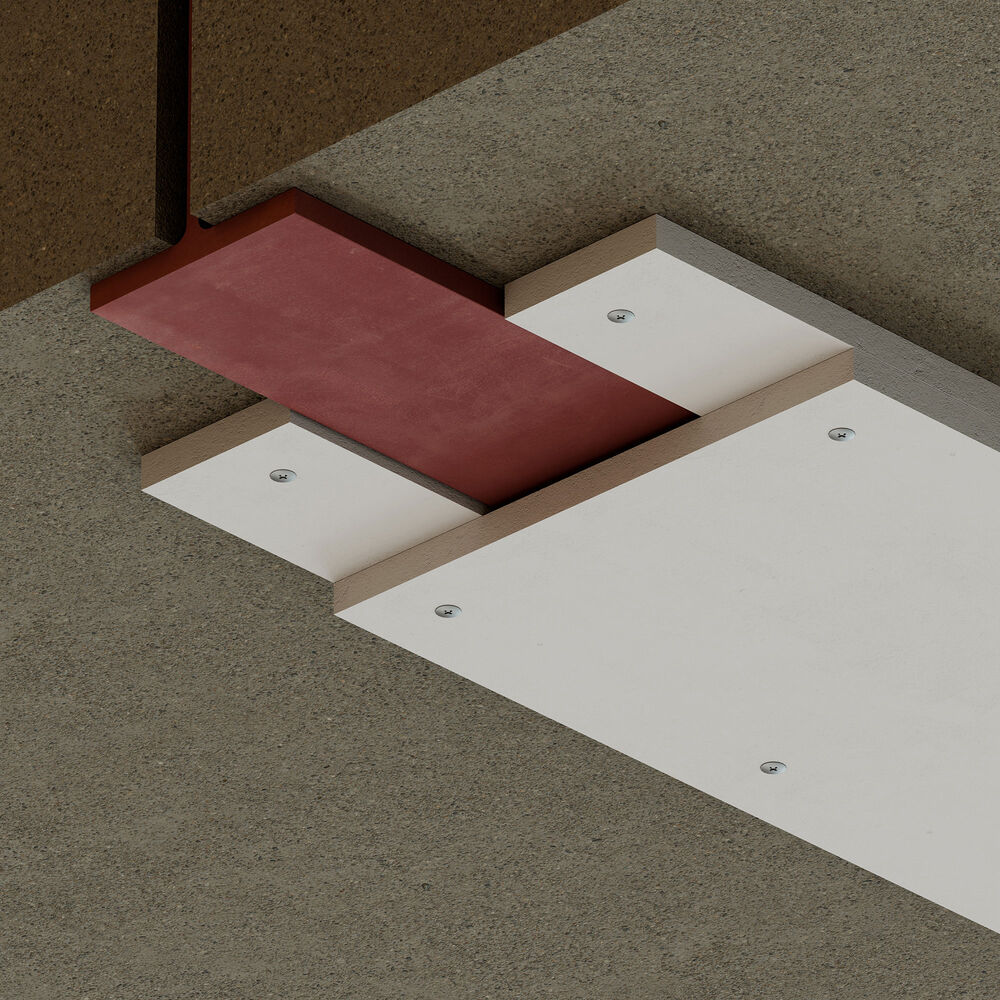

ST P250-004S - PROMATECT-250® ST P250-004S - PROMATECT-250®	120 minutes	N/A	N/A	325 mm	350 A/V	1	N/A

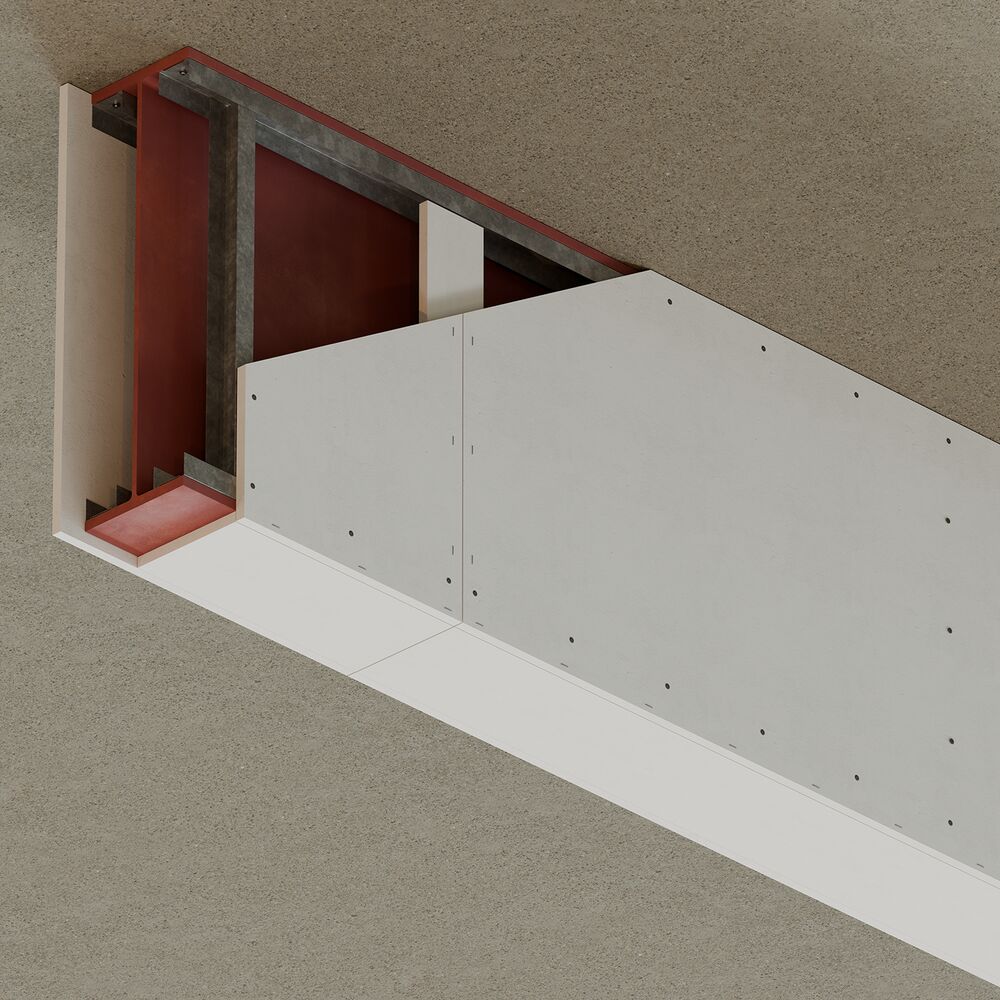

ST P250-021S - PROMATECT-250® ST P250-021S - PROMATECT-250®	120 minutes	N/A	1200 mm	325 mm	350 A/V	3	N/A

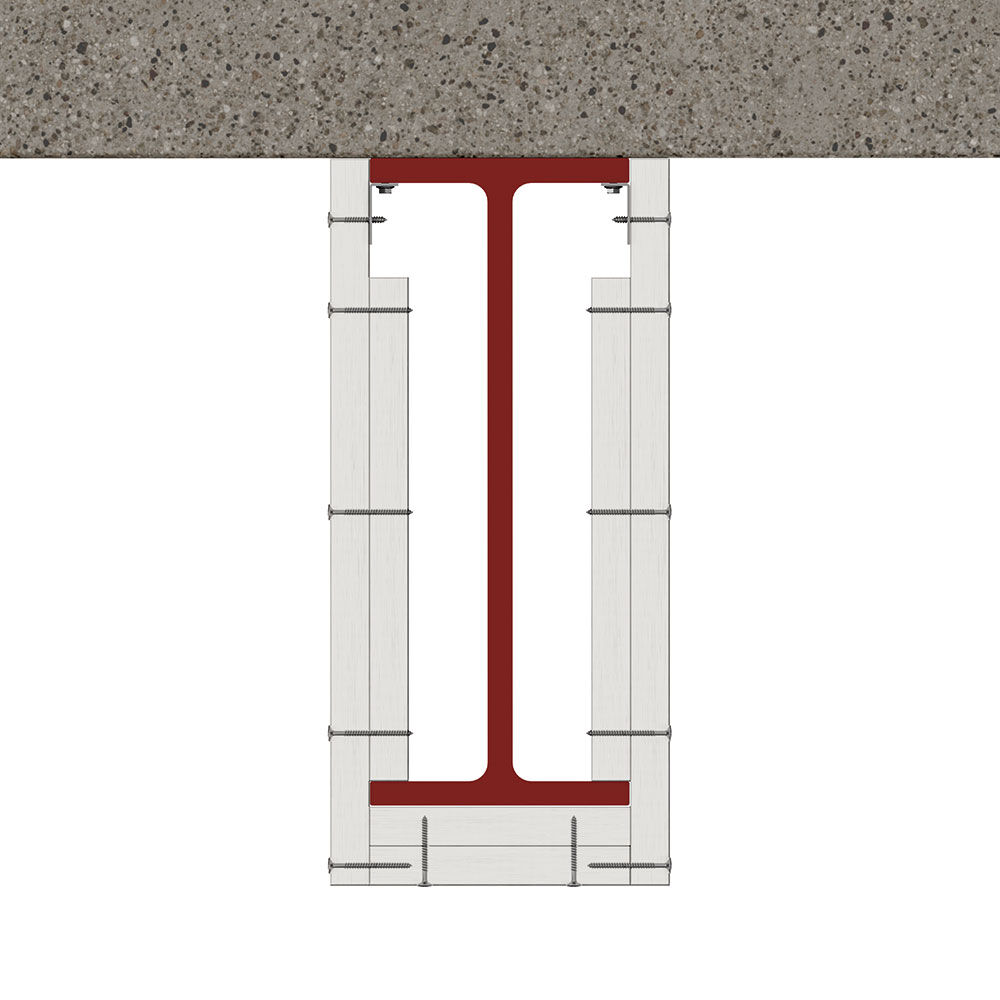

ST VLUX-015S - VERMICULUX-S® ST VLUX-015S - VERMICULUX-S®	240 minutes	240 min	609 mm	325 mm	275 A/V	3	N/A

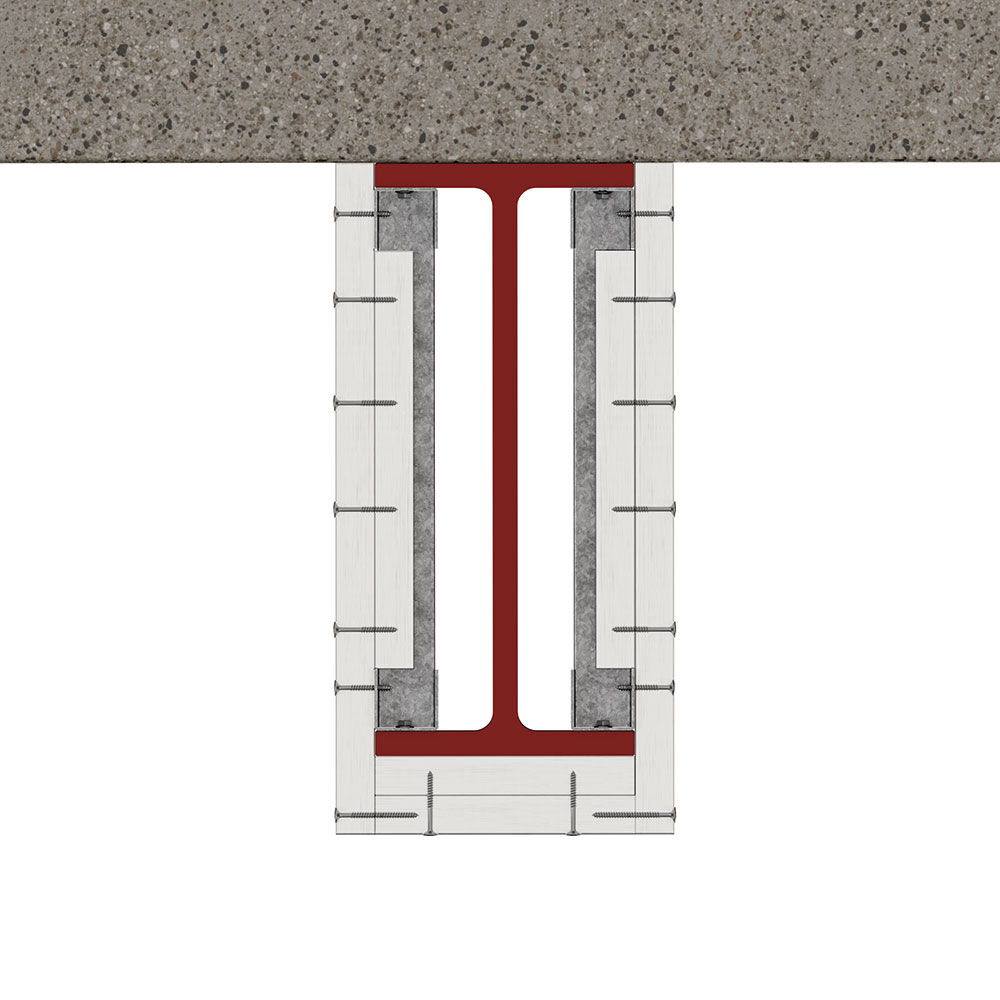

ST VLUX-016S - VERMICULUX-S® ST VLUX-016S - VERMICULUX-S®	N/A	240 min	2000 mm	380 mm	275 A/V	3	N/A

Steel loses its loadbearing capacity at a temperature in excess of 550°C during a fire; therefore structural steel protection (e.g. with board, paint, spray etc) is required to preserve the stability of the building structure in the event of fire. All Promat products and systems have been tested at nationally accredited laboratories around the world to a variety of standards, e.g. BS 476: Part 21, AS 1530: Part 4, DIN 4102, ASTM E119 and EN 13381-4.

Not all steel configurations are included in our Structural Steel Protection System Selector. If you cannot find a solution, please email our technical Support Team at technical@promat.com
