CL SLUX-EI60-001S - SUPALUX®

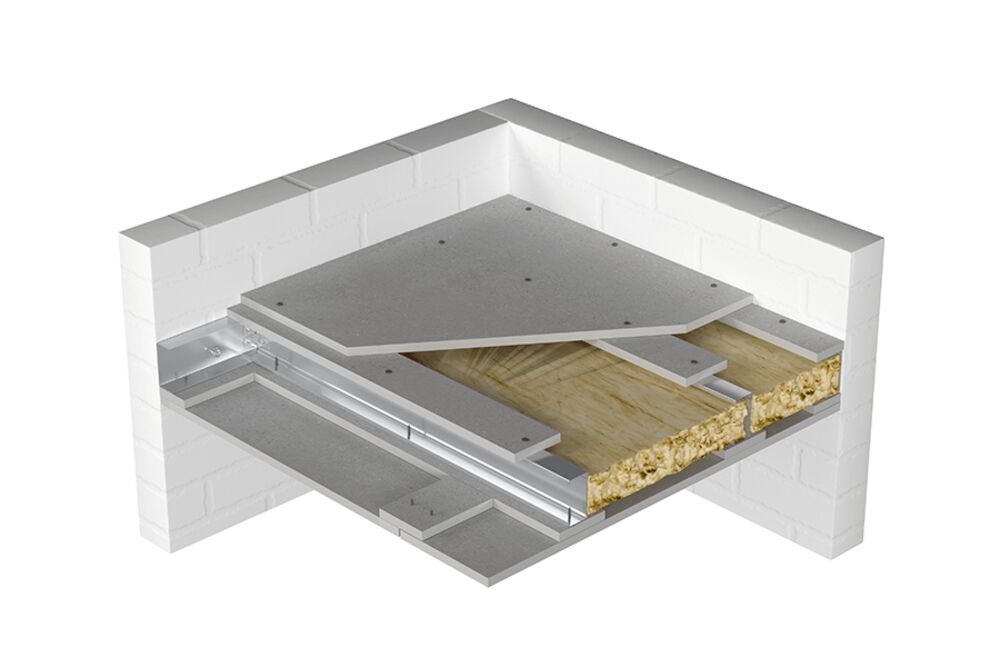

EI60 Self-supporting ceiling membrane (fire from above or below).

A self-supporting ceiling designed for applications with limited access to the soffit above. The system provides 60 minutes of integrity and insulation against fire from above or below.

CL SLUX-EI60-001S
CL SLUX-EI60-001S

Further Information

Advantages:

  • Self-supporting
  • For applications with limited access to the soffit above
  • Spans of up to 4m in one direction, unlimited in the other direction

Application:

  • Refurbishment
  • Unheated spaces
  • Areas with high humidity
  • Firefighting lobbies
Fire Performance To BS 476-22: 60 min
Maximum horizontal span: 4000 mm
Insulation type: Stone Wool
Insulation Thickness: 100 mm
Insulation breakdown: Consists of 2 x 50mm stone wool slabs
Insulation Density: 45 kg/m³
Direction Of Fire Exposure: From Above and Below
