PZ SLUX-E240-EI30-001S - SUPALUX®

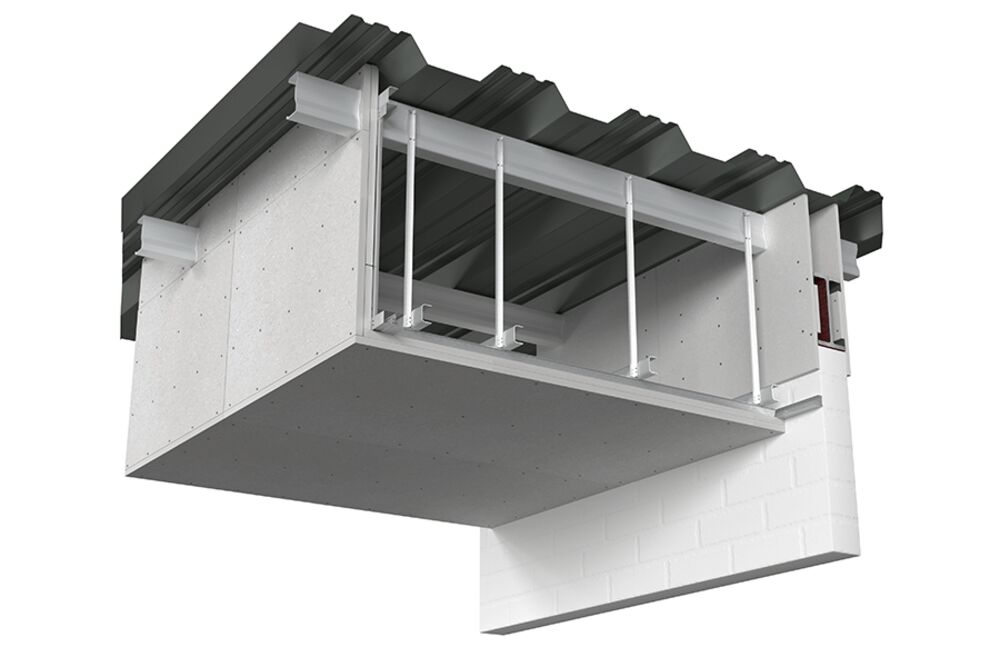

E240 EI30 Protected zone, fixed 1.5m - 5m either side of a compartment wall.

A protected zone is designed to prevent fire from bypassing the compartment wall at a junction with roof or external wall. Intelligently designed to use part of the existing structure and provide 240 minutes of integrity and 30 minutes of insulation.

PZ SLUX-E240-EI30-001S
PZ SLUX-E240-EI30-001S

Further Information

Advantages:

  • Follows the FPA Design Guide for the Fire Protection of Buildings - Protected Zone
  • Can be used to comply with Approved Document B guidance at the junction of a compartment wall with a roof
  • Can be installed in unheated and semi-exposed spaces

Application:

  • Warehouses
  • Industrial buildings
  • Car parks
  • Junctions between two adjoining properties
Fire Performance To EN 1364-2: 240 min
Direction Of Fire Exposure: From Below
