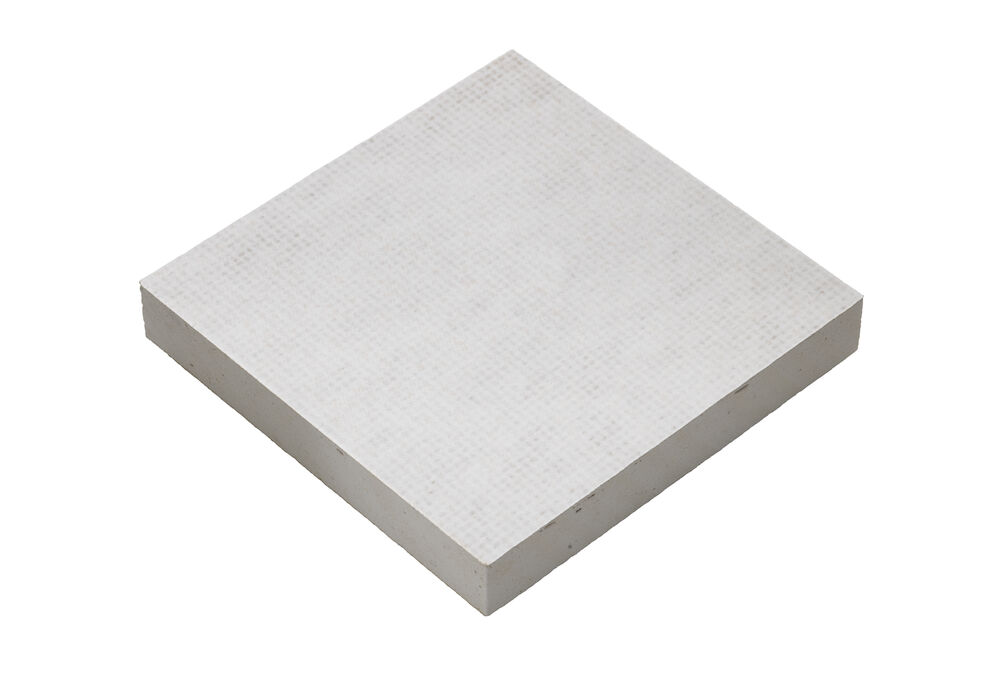

PROMATECT®-XS

Promatect® XS is an A1 non-combustible board for use with structural steelwork fire protection and can be installed 6 months before the building is weathertight. Explore more

Promatect® XS is edged stapled, which is an extremely fast method of installation. This results in a more economical solution when compared to other technologies or systems.

It can also offer a quick installation providing 60 minutes fire resistance for lightweight mezzanine floor constructions.

PROMATECT®-XS

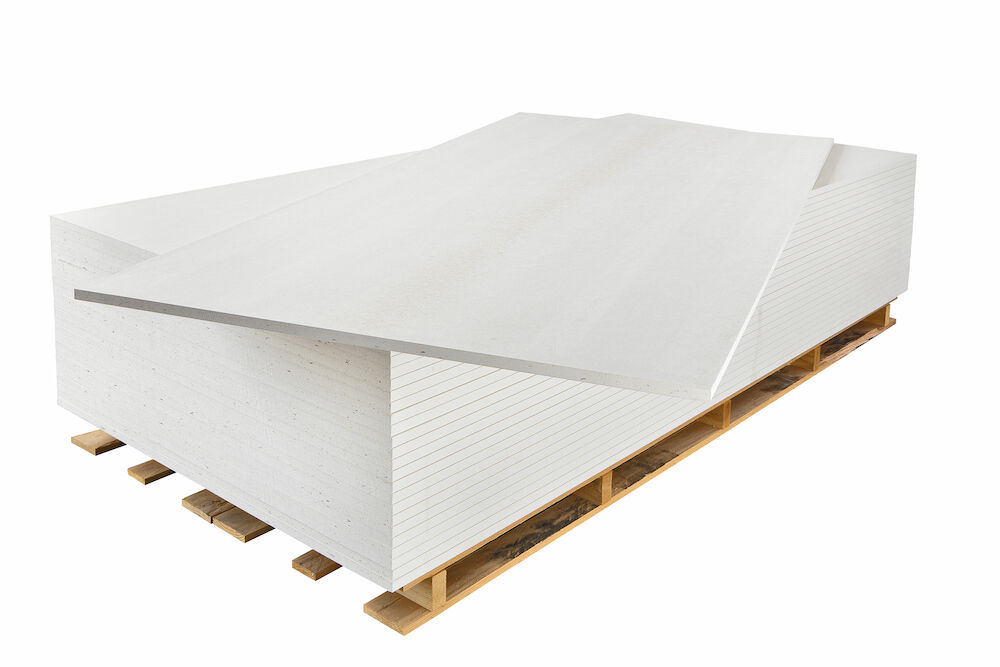

PROMATECT®-XS Pallet
PROMATECT®-XS

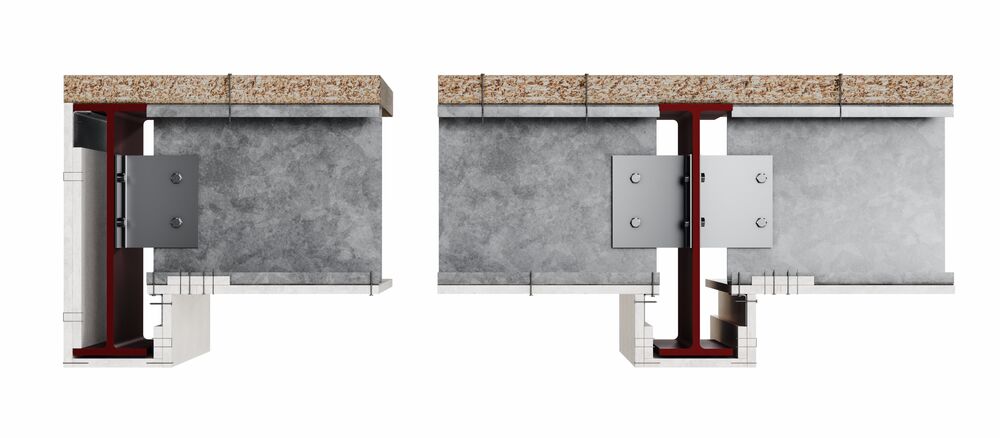

MZ PXS-REI60-001S
PROMATECT®-XS Pallet
MZ PXS-REI60-001S

Further Information

Applications:

  • 60 minutes Fire resistance for Mezzanine floors

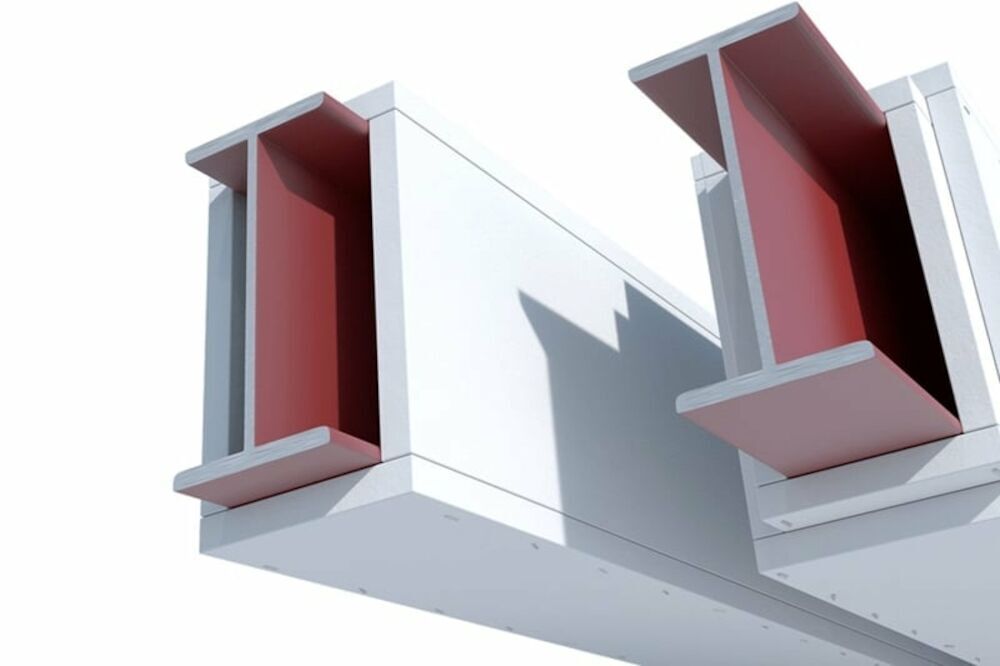

  • 60 minutes Fire Protection to structural Steel

Benefits:

  • Designed for installers to save cost and save time
  • Up to 60 minutes fire protection
  • Easy installation with staple fixings and no glue or filler
  • Low board thickness needed for any given fire protection
  • Can be installed 6 months before the building is weathertight
  • Backed by EN testing and Classification
Reaction to fire: A1, non-combustible
Use Category: Y, Z2
Approx. Thermal Conductivity @ 20 °C (W/m°K): 0.3 W/m K
Bending Strength Longitudinal (N/mm²): 5 N/mm²
Tensile Strength Longitudinal (N/mm²): 1.5 N/mm²
Compressive Strength (N/mm² perpendicularly to the board surface): 6 N/mm²
Storage Conditions: Store in a dry and well-ventilated space, under cover, on a flat surface.

Please note
All physical and mechanical values are averages based on standard production and tested according to internal procedures. The typical values are given for guidance. The figures can change dependent on the test methods used. If a particular value is of prime importance for a specification, please consult Promat Technical Department.
