PROMATECT®-H
PROMATECT®-H is a non combustible matrix engineered mineral board reinforced with selected fibres and fillers. It does not contain formaldehyde.

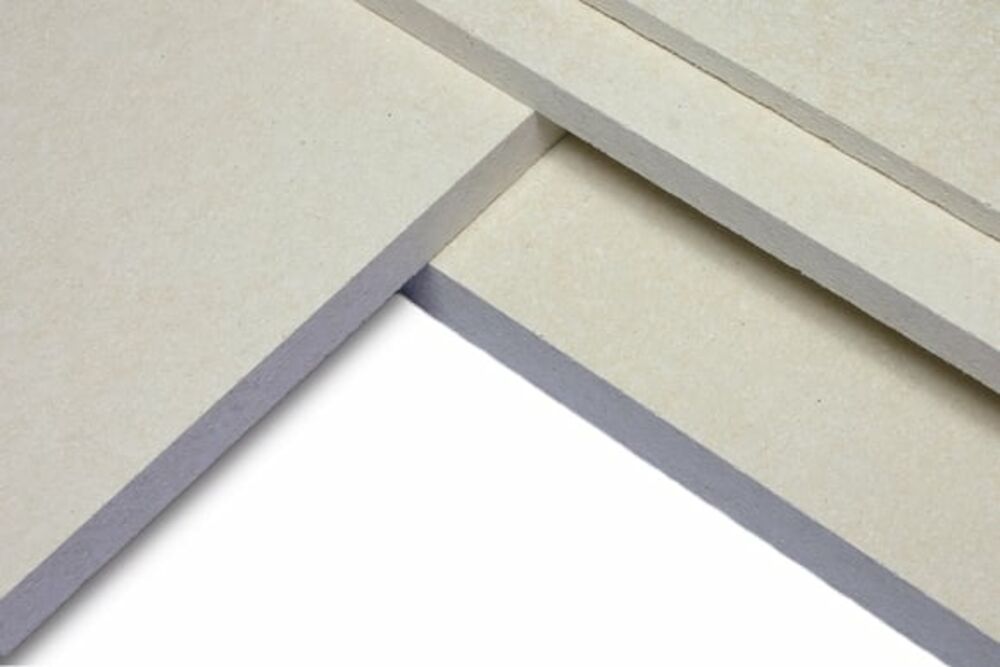

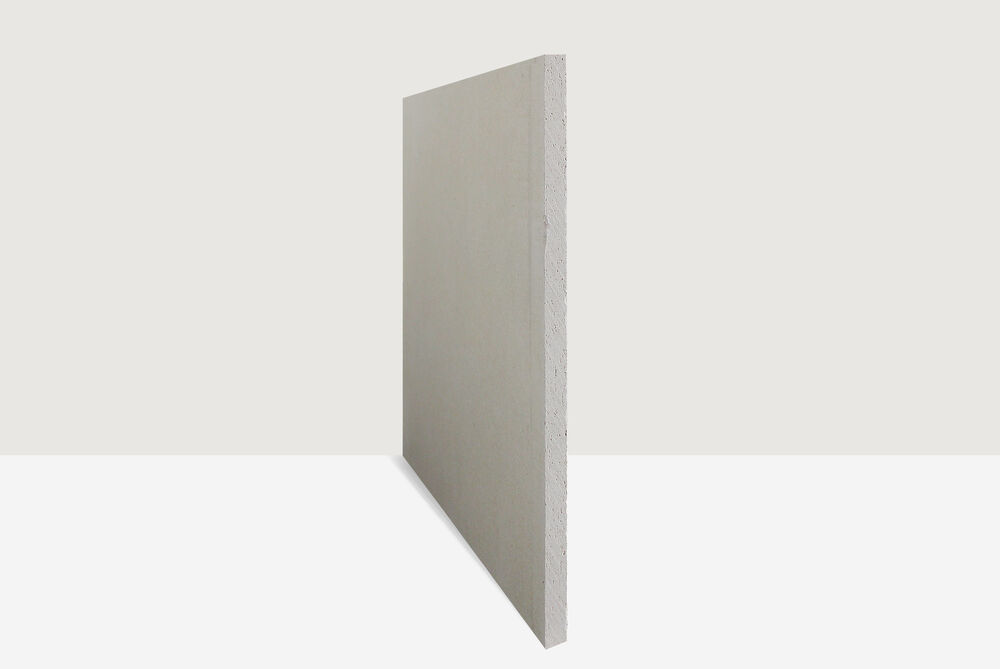

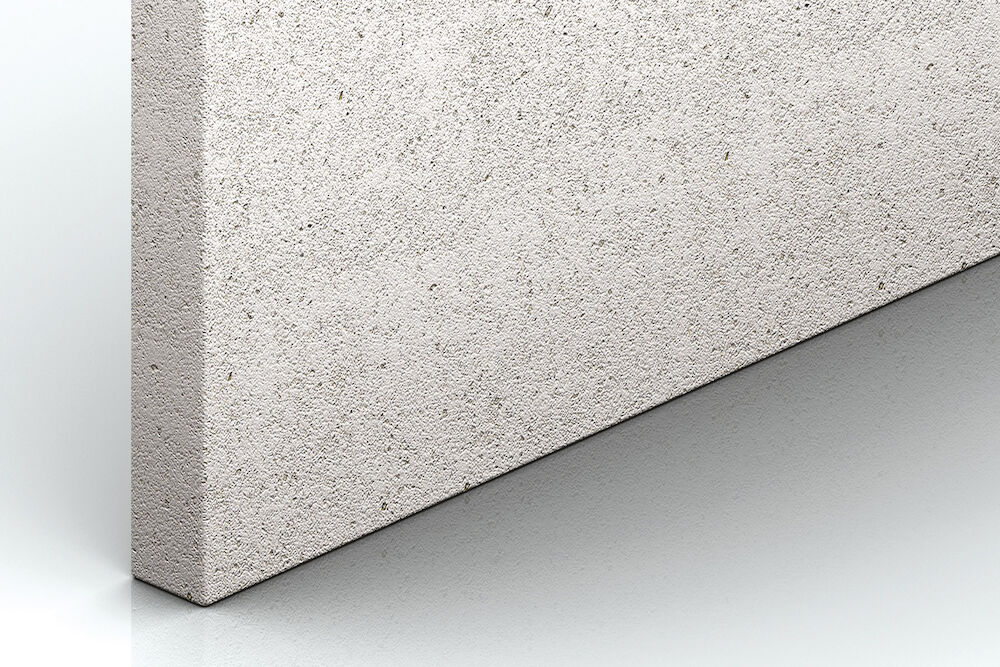

PROMATECT®-H is off-white in colour and has a smooth finish on one face with a sanded reverse face. The board can be left undecorated or easily finished with paints, wallpapers or tiles.
PROMATECT®-H is resistant to the effects of moisture and will not physically deteriorate when used in damp or humid conditions. Whilst its performance characteristics are not degraded by age or moisture, PROMATECT®-H is not designed for application in areas subject to continual damp or high temperatures.
Further Information
Applications:
- Concrete Wall & Slab Upgrade
- Masonry Wall Upgrade
- Ceilings
- Self Supporting & Post Clad Duct Protection
Benefits:
- Non-Combustible to AS1530.1
- Resistant to the effects of moisture and humidity
- Hard wearing and resistant to impact
- Up to 4hr protection for some systems
- Performance characteristics are not degraded by age or moisture
| Thickness (mm) | Dimensions (mm) | Boards Per Pallet | Weight per board (kg) |
|---|---|---|---|
| 15 | 2440 x 1220 | 36 | 43 |
| 25 | 2440 x 1220 | 22 | 70 |
- Other thicknesses and sizes available as special order
Use Category:
Y, Z₁, Z₂
Approx. Alkalinity (pH):
12 pH
Approx. Dry Density (kg/m³):
870 kg/m³
Approx. Moisture Diffusion Resistance (μ):
20
Approx. Thermal Conductivity @ 20 °C (W/m°K):
0.175 W/m K
Bending Strength Longitudinal (N/mm²):
7.6 N/mm²
Tensile Strength Longitudinal (N/mm²):
4.8 N/mm²
Compressive Strength (N/mm² perpendicularly to the board surface):
9.3 N/mm²
Storage Conditions:
Store in a dry and well-ventilated space, under cover, on a flat surface.
