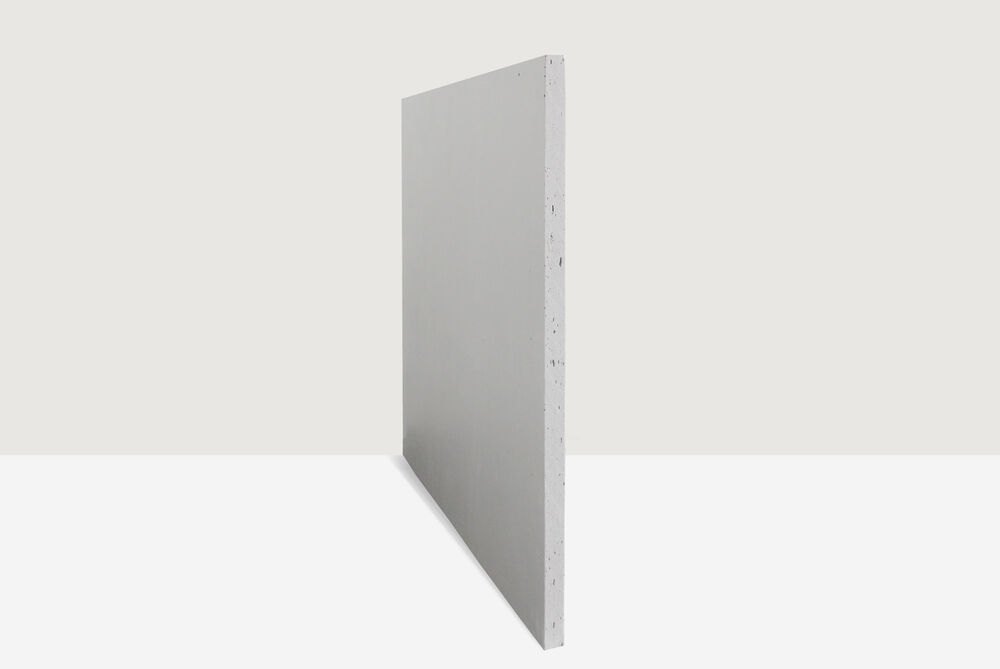

PROMATECT® 100 comprises autoclaved calcium silicate spheres (PROMAXON® is a synthetic hydrated calcium silicate in spherical form) bound in a mineral matrix. PromaX® technology provides excellent fire performance in most applications.

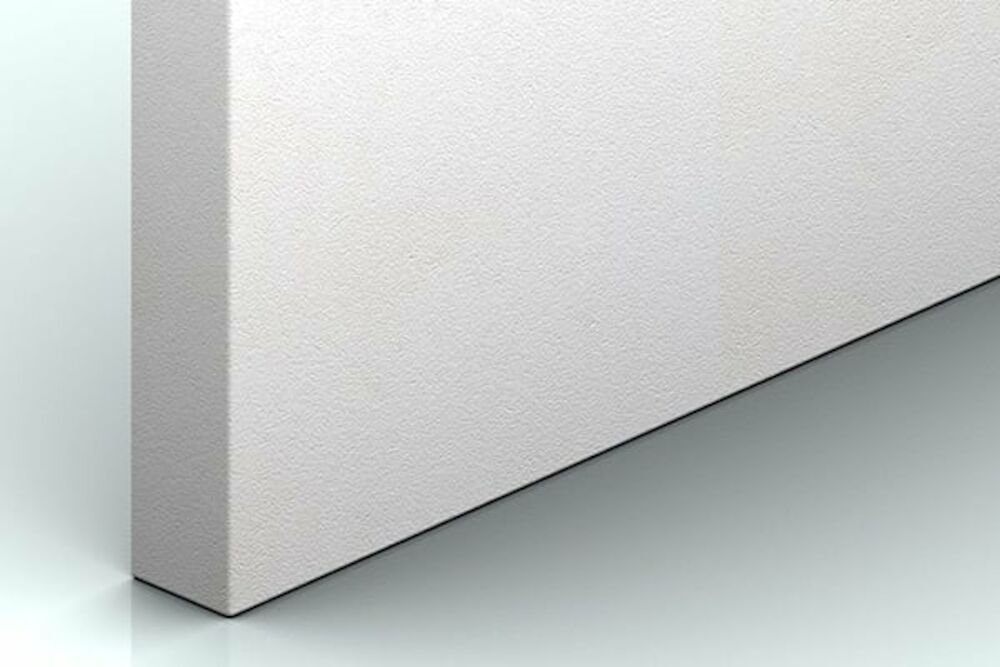

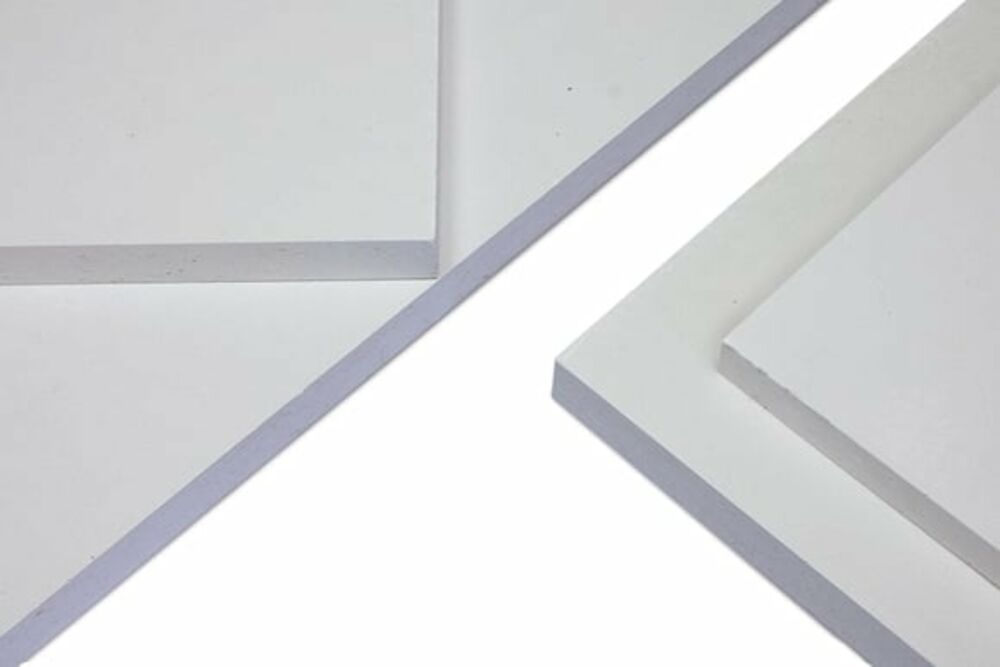

PROMATECT® 100 is off-white in colour. One face is smooth and ready to form a finished surface, able to receive almost any form of architectural/finish treatment. The reverse face is sanded.

PROMATECT® 100 is resistant to the effects of moisture and will not physically deteriorate when used in damp or humid conditions. Performance characteristics are not degraded by age or moisture. However, PROMATECT® 100 is not designed for use in areas subject to continual damp or high temperatures. PROMATECT® 100 is for internal applications only.

Further Information


  • Partitions / Walls (Steel & Timber Stud or Solid / Frameless)
  • Ceilings
  • Floor / Ceilings
  • Structural Steel Protection


  • Single layer systems for walls and ceilings up to FRL -/120/120
  • Systems for FRL -/240/240 Walls and Ceilings Available
  • Systems for FRL up to 120/120/120 for Floor / Ceiling Systems
  • Steel Protection up to FRL 120/-/-
  • High level of finish
  • Most types of architectural finishes can be applied.
  • Non combustible to AS1530.1
Thickness (mm) Dimensions (mm) Boards Per Pallet Weight per board (kg)
15 2500x1200 48 39
20 2500x1200 35 52
  • Other thicknesses and sizes available as special order
Reaction to fire: A1, non-combustible
Use Category: Z₂
Approx. Alkalinity (pH): 7 pH
Approx. Dry Density (kg/m³): 875 kg/m³
Moisture Content Min (%): 1 %
Moisture Content Min (%): 3 %
Approx. Moisture Diffusion Resistance (μ): 3
Approx. Thermal Conductivity @ 20 °C (W/m°K): 0.285 W/m K
Bending Strength Longitudinal (N/mm²): 5 N/mm²
Tensile Strength Longitudinal (N/mm²): 1.21 N/mm²
Compressive Strength (N/mm² perpendicularly to the board surface): 6.6 N/mm²
Storage Conditions: Store in a dry and well-ventilated space, under cover, on a flat surface.
