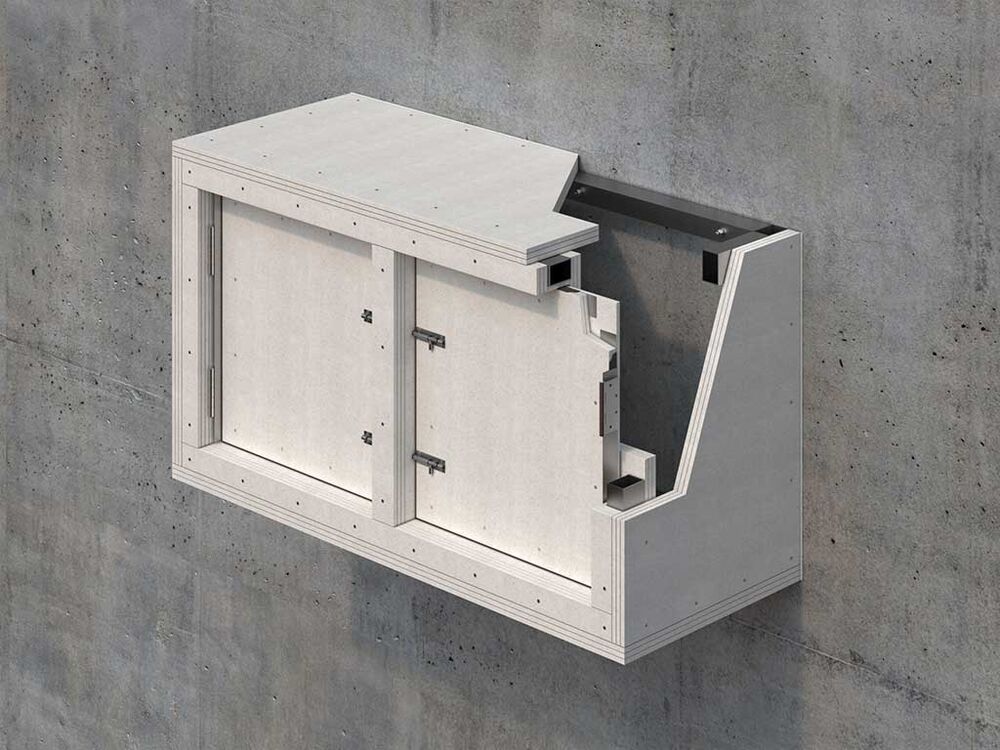

60 minutes fire rated PROMATECT®-H Access panel for non-emergency services - resisting fire from both sides

  • Assembling of a three layer of PROMATECT®-H board, 3 x 12mm thick, form the services encases with RHS section, screw-fixing the board to the steel channel or secured with staple-fixing the board face to the edge.
60 minutes fire rated access panel for non-emergency services PROMATECT-H
60 minutes fire rated access panel for non-emergency services PROMATECT-H

Further Information

Advantages:
  • Lightweight
  • Thermal resistance
  • Impact resistance
  • Fire resistance performance
  • Tested and assessed in accordance with the BS 476: Part 20 & 22: 1987
Application:
  • Commercial, industrial, institutional, residential and high rise constructions, or in the restoration of existing buildings
Fire Resistance: 60 min
Total Thickness: 39 mm
Product: PROMATECT®-H 3 x 12 mm or 4 x 9 mm
Exposure to fire: From both sides
Fire Resistance Rating: FRR -/60/60
Fire Resistance Class: EI 60
Fire Resistance: 60 min
