120 minutes fire rated PROMATECT®-H Vertical access panel for integrity only - resisting fire from both sides

  • Assembling of a single layer of PROMATECT®-H board, 9mm thick, cut to closely fit the opening, screw-fixing on the steel frame where it secure to the masonry or concrete wall around all edge of the opening.

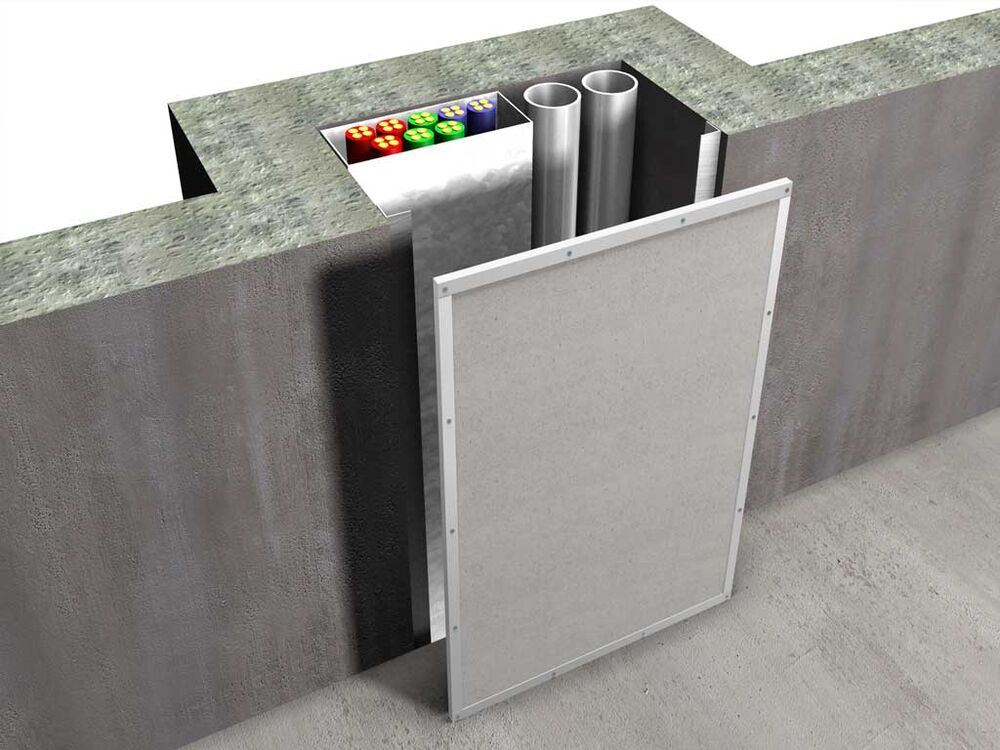

120 minutes fire rated vertical access panel PROMATECT-H
120 minutes fire rated vertical access panel PROMATECT-H

Further Information

Advantages:
  • Lightweight
  • Thermal resistance
  • Impact resistance
  • Fire resistance performance
  • Tested and assessed in accordance with the BS 476: Part 22: 1987
Application:
  • Commercial, industrial, institutional, residential and high rise constructions, or in the restoration of existing buildings
Fire Resistance: 120 min
Total Thickness: 39 mm
Product: PROMATECT®-H 1 x 9mm
Exposure to fire: From both sides
Fire Resistance Rating: FRR -/120/-
Fire Resistance Class: e120
Fire Resistance: 120 min
