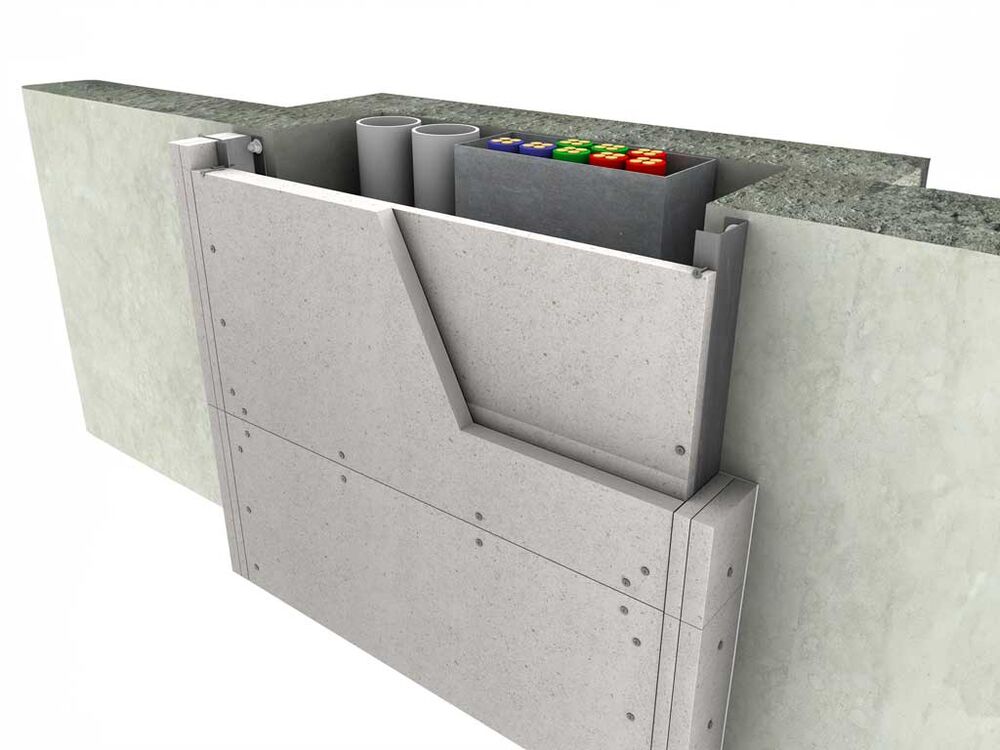

120 minutes fire rated PROMATECT®-H Infill panel system - resisting fire from both sides

  • Assembling of a two layer of PROMATECT®-H board, 2 x 25mm thick, screw-fixing onto the steel channel flange and around all four sides of the channel web, where the channel is secure to the masonry or concrete wall.
60 minutes fire rated infill panel system PROMATECT-H
60 minutes fire rated infill panel system PROMATECT-H

Further Information

Advantages:
  • Lightweight
  • Thermal resistance
  • Impact resistance
  • Fire resistance performance
  • Tested and assessed in accordance with the BS 476: Part 20 & 22: 1987
Application:
  • Commercial, industrial, institutional, residential and high rise constructions, or in the restoration of existing buildings
Fire Resistance: 120 min
Total Thickness: 51 mm
Product: PROMATECT®-H 2 x 25mm
Exposure to fire: From both sides
Fire Resistance Rating: FRR -/120/120
Fire Resistance Class: EI 120
Fire Resistance: 120 min
