240 minutes fire rated PROMATECT®-H Steel stud partition - resisting fire from both sides

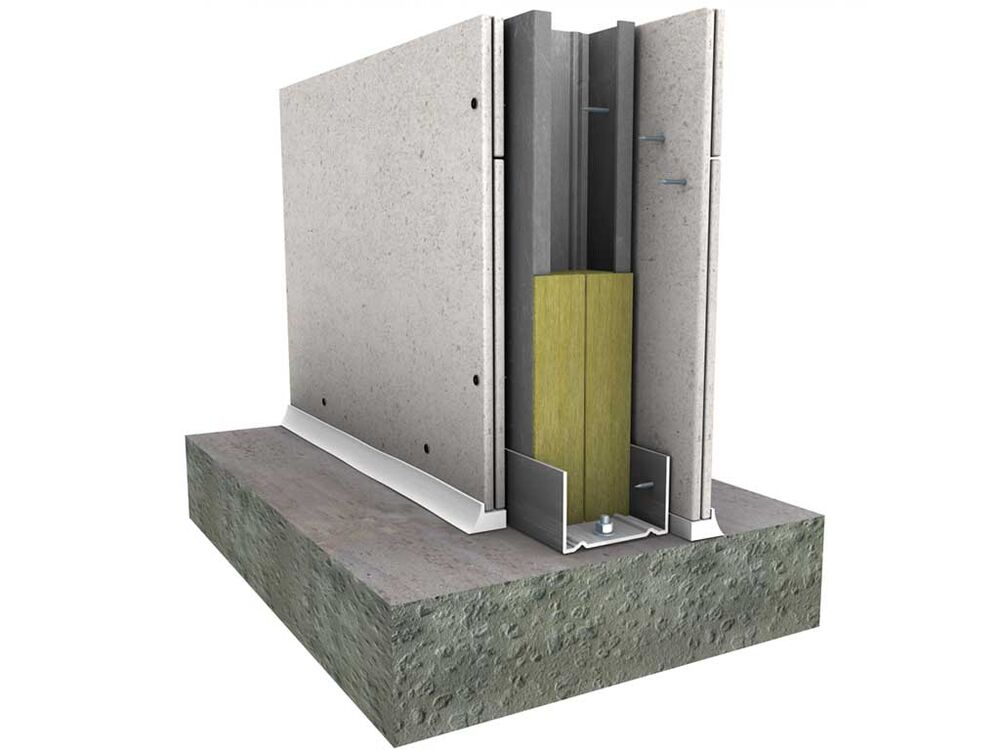

  • Assembling of a two layer of PROMATECT®-H board, 2 x 9mm thick, screwed onto both sides of galvanised steel studs, with mineral wool cavity infill in between the partition wall, for a total system thickness of 136mm.
  • Maximum height 7700mm
  • For higher heights, please consult Promat Technical Department.
240 minutes steel stud partition PROMATECT-H
240 minutes steel stud partition PROMATECT-H

Further Information

Advantages:
  • Time and cost effectiveness
  • Lightweight
  • Thermal resistance
  • Impact resistance
  • Fire resistance performance
  • Tested and assessed in accordance with the BS 476: Part 22: 1987
Application:
  • Commercial, industrial, institutional, residential and high rise constructions, or in the restoration of existing buildings
Fire Resistance: 240 min
Maximum Height: 7700 mm
Total Thickness: 136 mm
Product: PROMATECT®-H 2 x 9mm each side
Exposure to fire: From both sides
Fire Resistance Rating: FRR -/240/240
Fire Resistance Class: EI 240
Fire Resistance: 240 min
