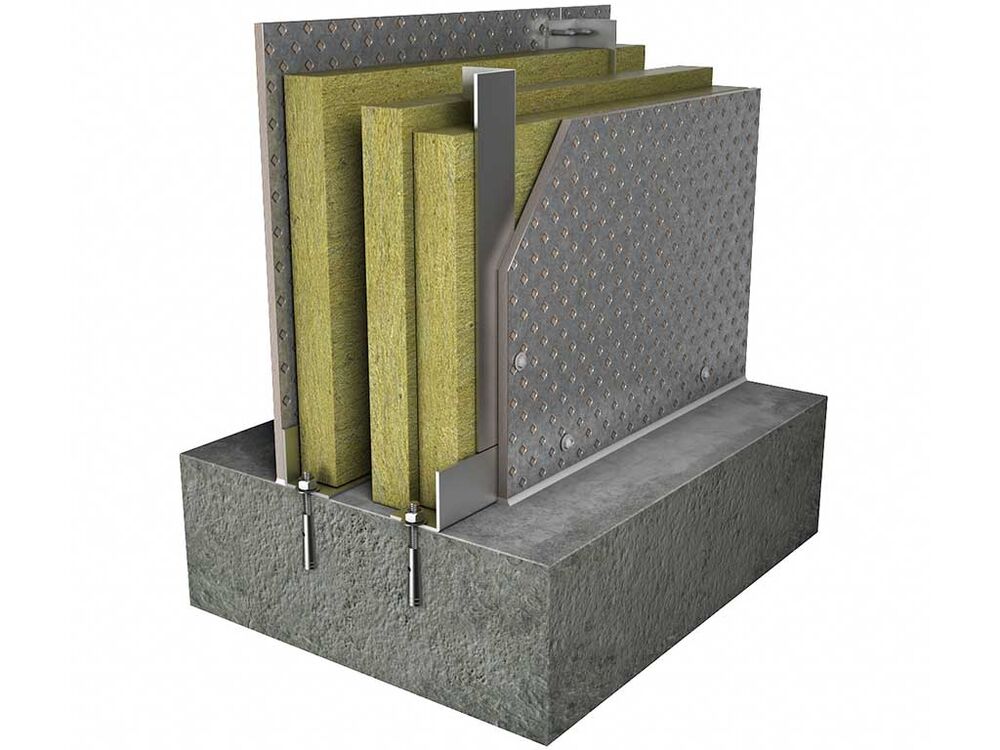

240 minutes fire rated PROMATECT®-S Steel stud partition with angle interval - resisting fire from both sides

  • Assembling of a single layer of PROMATECT®-S board, 9.5mm thick, screwed onto both sides of steel perimeter angle, three layer of mineral wool cavity infill in between the partition wall, for a total system thickness of 164mm.
  • Maximum height 5000mm
  • For higher heights, please consult Promat Technical Department.
240 minutes steel stud partition with angle interval PROMATECT-S
240 minutes steel stud partition with angle interval PROMATECT-S

Further Information

Advantages:
  • Time and cost effectiveness
  • Lightweight
  • Thermal resistance
  • Impact resistance
  • Fire resistance performance
  • Tested and assessed in accordance with the BS 476: Part 22: 1987
Application:
  • Commercial, industrial, institutional, residential and high rise constructions, or in the restoration of existing buildings
Fire Resistance: 240 min
Maximum Height: 5000 mm
Total Thickness: 164 mm
Fire Report Number: BRE CC 201034 Review 4 Issue 1
Product: PROMATECT®-S 1 x 9.5mm each side
Board Thickness: 9.5 mm
Exposure to fire: From both sides
Fire Resistance Rating: FRR -/240/240
Fire Resistance Class: EI 240
Fire Resistance: 240 min
Fire Report Number: BRE CC 201034 Review 4 Issue 1
