120 minutes fire rated PROMATECT®-S Steel stud partition integrity only - resisting fire from one side

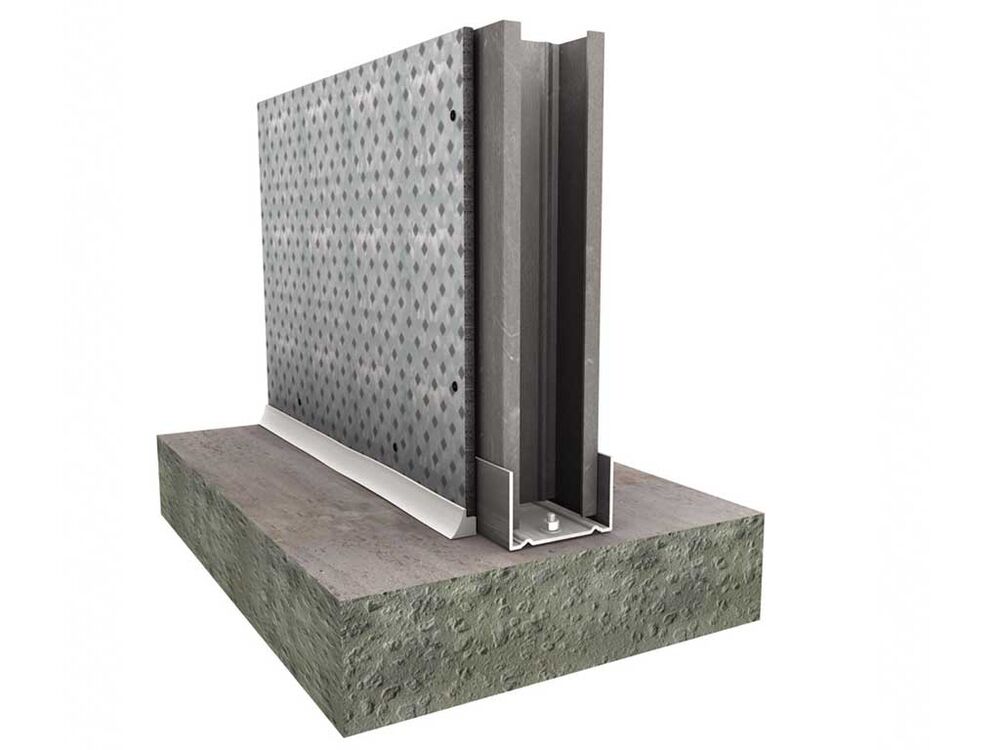

  • Assembling of a single layer of PROMATECT®-S board, 6mm thick, screwed onto exposed sides of galvanised steel studs for a total system thickness of 106mm.
  • Maximum height 4000mm
  • For higher heights, please consult Promat Technical Department.
120 minutes steel stud partition integrity only PROMATECT-S
120 minutes steel stud partition integrity only PROMATECT-S

Further Information

Advantages:
  • Time and cost effectiveness
  • Lightweight
  • Thermal resistance
  • Impact resistance
  • Fire resistance performance
  • Tested and assessed in accordance with the BS 476: Part 22: 1987
Application:
  • Commercial, industrial, institutional, residential and high rise constructions, or in the restoration of existing buildings
Fire Resistance: 120 min
Maximum Height: 4000 mm
Total Thickness: 106 mm
Product: PROMATECT®-S 1 x 6mm one side
Exposure to fire: From one side
Fire Resistance Rating: FRR -/120/-
Fire Resistance Class: e120
Fire Resistance: 120 min
