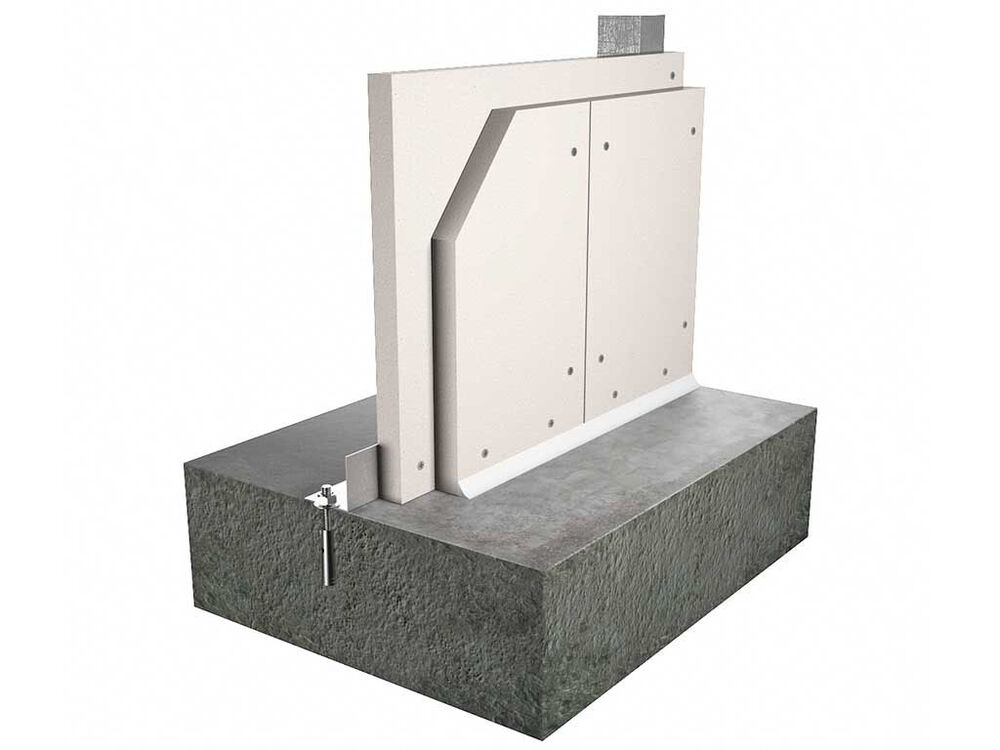

60 minutes fire rated PROMATECT®-H Solid internal partition - resisting fire from both sides

  • Assembling of a two layer of PROMATECT®-H board, 20mm + 15mm thick stagger joints, screwed onto steel perimeter angle for a total system thickness of 85mm.
  • Maximum height 3100mm
  • For higher heights, please consult Promat Technical Department.
60 minutes solid internal partition PROMATECT-H
60 minutes solid internal partition PROMATECT-H

Further Information

Advantages:
  • Time and cost effectiveness
  • Slim walls
  • Lightweight
  • Thermal resistance
  • Impact resistance
  • Fire resistance performance
  • Tested and assessed in accordance with the BS 476: Part 22: 1987
Application:
  • Commercial, industrial, institutional, residential and high rise constructions, or in the restoration of existing buildings
Fire Resistance: 60 min
Maximum Height: 3100 mm
Total Thickness: 85 mm
Product: PROMATECT®-H 20 mm + 15 mm
Exposure to fire: From both sides
Fire Resistance Rating: FRR -/60/60
Fire Resistance Class: EI 60
Fire Resistance: 60 min
