120 minutes fire rated PROMATECT®-H Solid internal partition - resisting fire from both sides

  • Assembling of a two layer of PROMATECT®-H board, 2 x 25mm thick stagger joints, screwed onto steel perimeter angle for a total system thickness of 100mm.
  • Maximum height 5000mm
  • For higher heights, please consult Promat Technical Department.

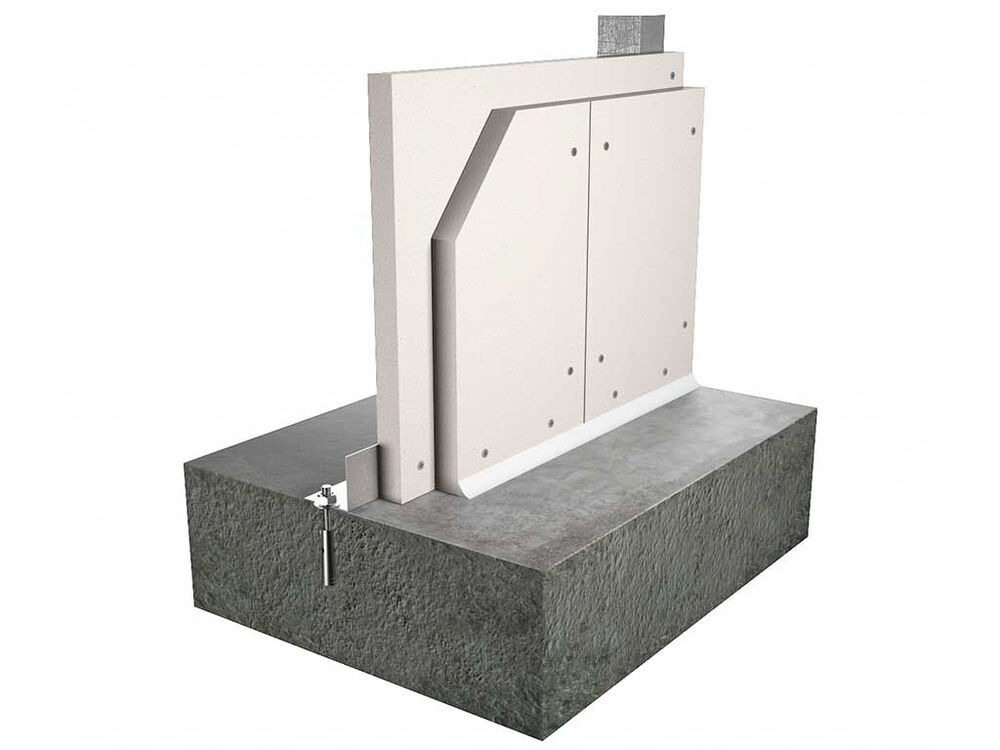

120 minutes solid internal partition PROMATECT-H
120 minutes solid internal partition PROMATECT-H

Further Information

Advantages:
  • Time and cost effectiveness
  • Slim walls
  • Lightweight
  • Thermal resistance
  • Impact resistance
  • Fire resistance performance
  • Tested and assessed in accordance with the BS 476: Part 22: 1987
Application:
  • Commercial, industrial, institutional, residential and high rise constructions, or in the restoration of existing buildings
Fire Resistance: 120 min
Maximum Height: 5000 mm
Total Thickness: 100 mm
Product: PROMATECT®-H 2 x 25mm
Exposure to fire: From both sides
Fire Resistance Rating: FRR -/120/120
Fire Resistance Class: EI 120
Fire Resistance: 120 min
