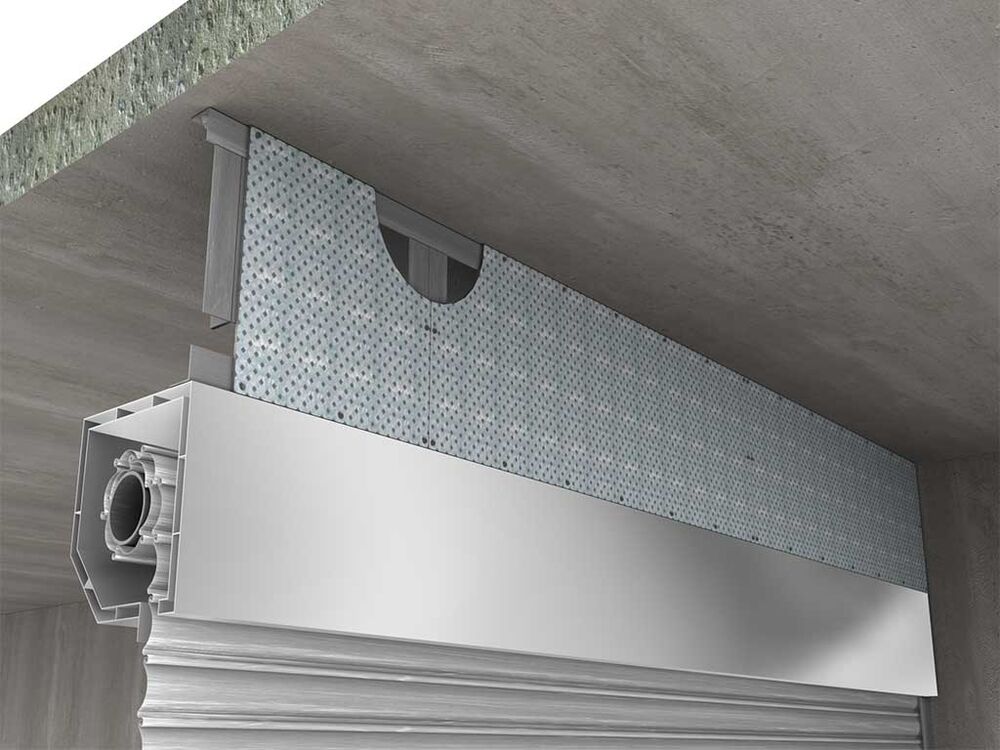

240 minutes fire rated PROMATECT®-S Smoke & fire barrier above roller shutter door for integrity only - resisting fire from both sides

  • Assembling of a single layer of PROMATECT®-S board, 6mm thick, screwed onto one sided of the galvanised steel angle frame for a total system thickness of 56mm.
240 minutes smoke fire barrier above roller shutter door PROMATECT-S
240 minutes smoke fire barrier above roller shutter door PROMATECT-S

Further Information

Advantages:
  • Time and cost effectiveness
  • Lightweight
  • Thermal resistance
  • Impact resistance
  • Fire resistance performance
  • Tested and assessed in accordance with the BS 476: Part 22: 1987
Application:
  • Commercial, industrial, institutional, residential and high rise constructions, or in the restoration of existing buildings
Fire Resistance: 240 min
Total Thickness: 56 mm
Product: PROMATECT®-S 1 x 6mm one side
Exposure to fire: From both sides
Fire Resistance Rating: FRR -/240/-
Fire Resistance Class: e120
Fire Resistance: 240 min
