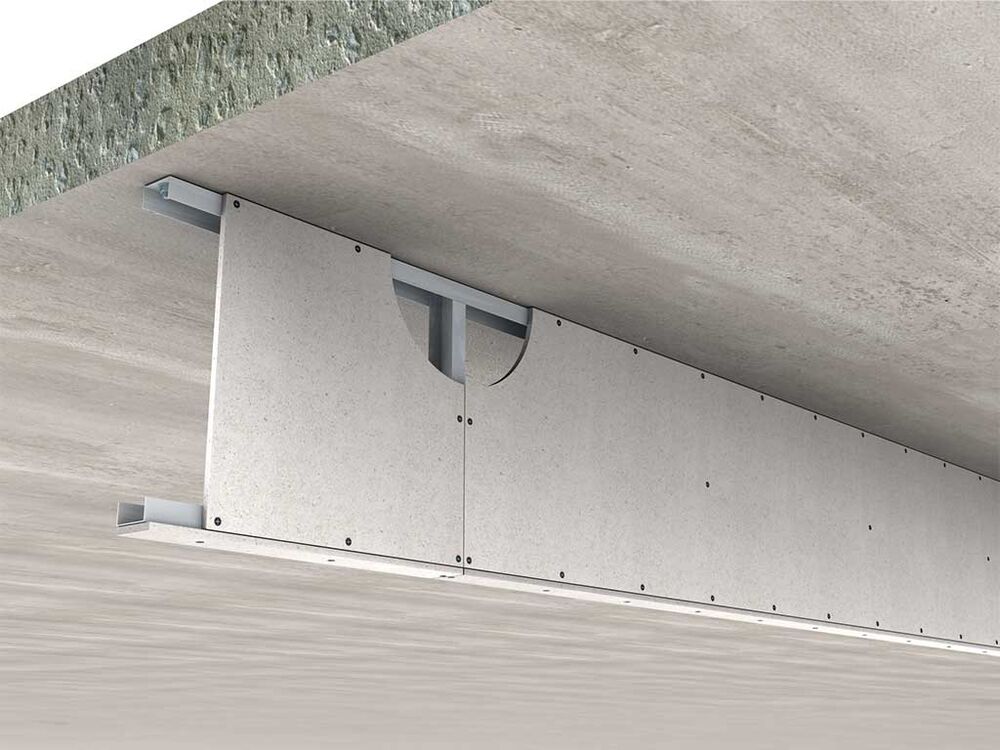

120 minutes fire rated PROMATECT®-H Smoke barrier suspended from concrete soffit - resisting fire from both sides

  • Assembling of a single layer of PROMATECT®-H board, 9mm thick, screw-fixing onto the bottom and the exposed sides of the galvanised steel studs frame, for a total system thickness of 59mm.
120 minutes smoke barrier suspended from concrete soffit PROMATECT-H
120 minutes smoke barrier suspended from concrete soffit PROMATECT-H
120 minutes smoke barrier suspended from concrete soffit PROMATECT-H
120 minutes smoke barrier suspended from concrete soffit PROMATECT-H
120 minutes smoke barrier suspended from concrete soffit PROMATECT-H
120 minutes smoke barrier suspended from concrete soffit PROMATECT-H

Further Information

Advantages:
  • Time and cost effectiveness
  • Lightweight
  • Thermal resistance
  • Impact resistance
  • Fire resistance performance
  • Tested and assessed in accordance with the BS 476: Part 22: 1987
Application:
  • Commercial, industrial, institutional, residential and high rise constructions, or in the restoration of existing buildings
Fire Resistance: 120 min
Total Thickness: 59 mm
Product: PROMATECT®-H 1 x 9mm one side
Exposure to fire: From both sides
Fire Resistance Rating: FRR -/120/-
Fire Resistance Class: e120
Fire Resistance: 120 min
