120 minutes fire rated PROMINA®-60 Smoke barrier - resisting fire from both sides

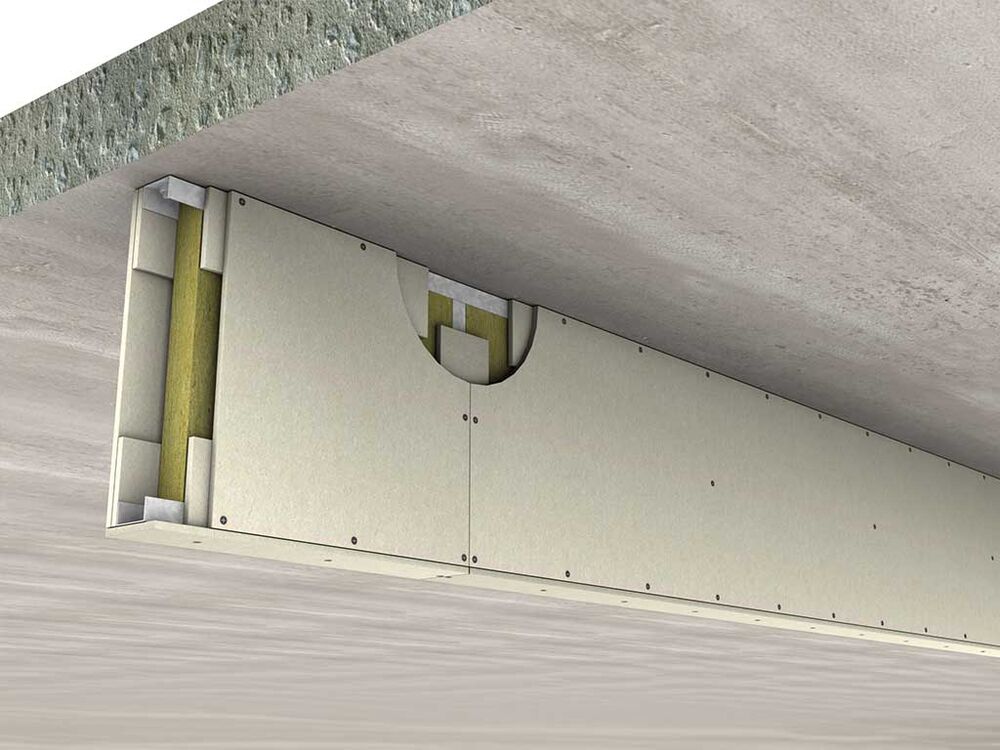

  • Assembling of a single layer of PROMINA®-60 board, 9mm thick, screw-fixing onto both sides and the bottom of the galvanised steel studs frame along with a cover strip, mineral wool cavity infill in between the smoke barrier, for a total system thickness of 86mm.
120 minutes fire rated smoke barrier PROMINA-60
120 minutes fire rated smoke barrier PROMINA-60

Further Information

Advantages:
  • Time and cost effectiveness
  • Lightweight
  • Thermal resistance
  • Impact resistance
  • Fire resistance performance
  • Tested and assessed in accordance with the BS 476: Part 22: 1987
Application:
  • Commercial, industrial, institutional, residential and high rise constructions, or in the restoration of existing buildings
Fire Resistance: 120 min
Total Thickness: 86 mm
Product: PROMINA®-60 1 x 9mm each side
Exposure to fire: From both sides
Fire Resistance Rating: FRR -/120/120
Fire Resistance Class: EI 120
Fire Resistance: 120 min
