120 minutes fire rated PROMINA®-60 Suspended ceiling integrity only - resisting fire from below

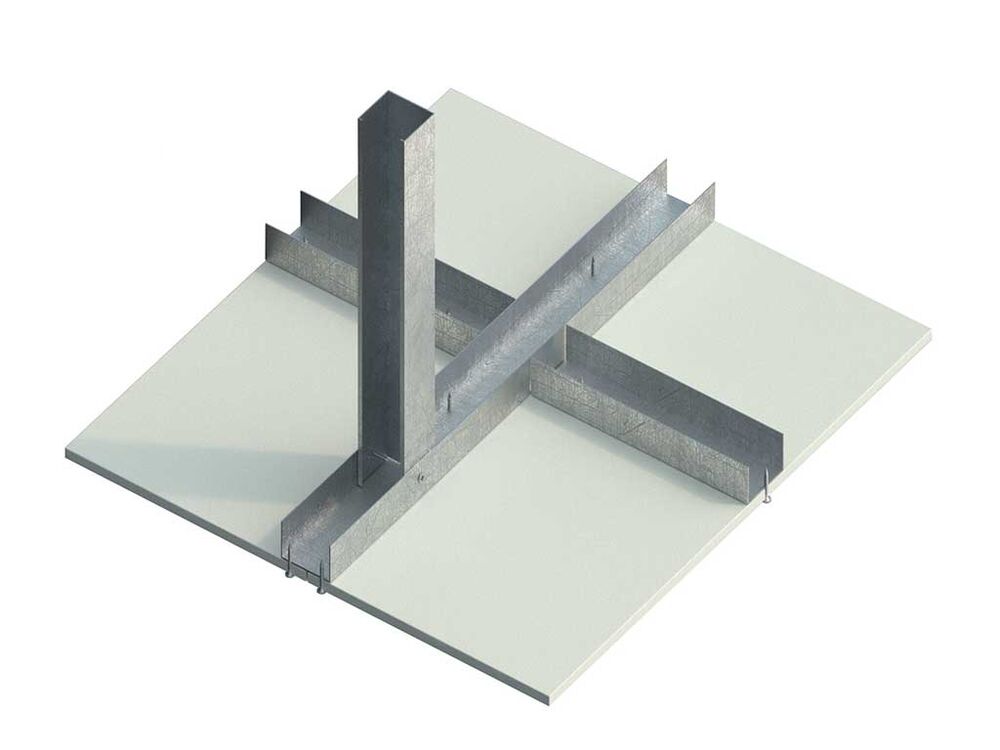

- Assembling of a single layer of PROMINA®-60 board, 9mm thick, screw-fixed beneath the steel channel frame for a total system thickness of 39mm.
Further Information
Advantages:
- Time and cost effectiveness
- Lightweight
- Thermal resistance
- Impact resistance
- Fire resistance performance
- Tested and assessed in accordance with the BS 476: Part 22: 1987
Application:
- Commercial, industrial, institutional, residential and high rise constructions, or in the restoration of existing buildings
Fire Resistance:
120 min
Total Thickness:
39 mm
Product:
PROMINA®-60 1 x 9mm one side
Exposure to fire:
From below
Fire Resistance Rating:
FRR -/120/-
Fire Resistance Class:
e120
Fire Resistance:
120 min
Installation:
Assembling of a single layer of PROMINA®-60 board, 9mm thick, screw-fixed beneath the steel channel frame to form a ceiling.
