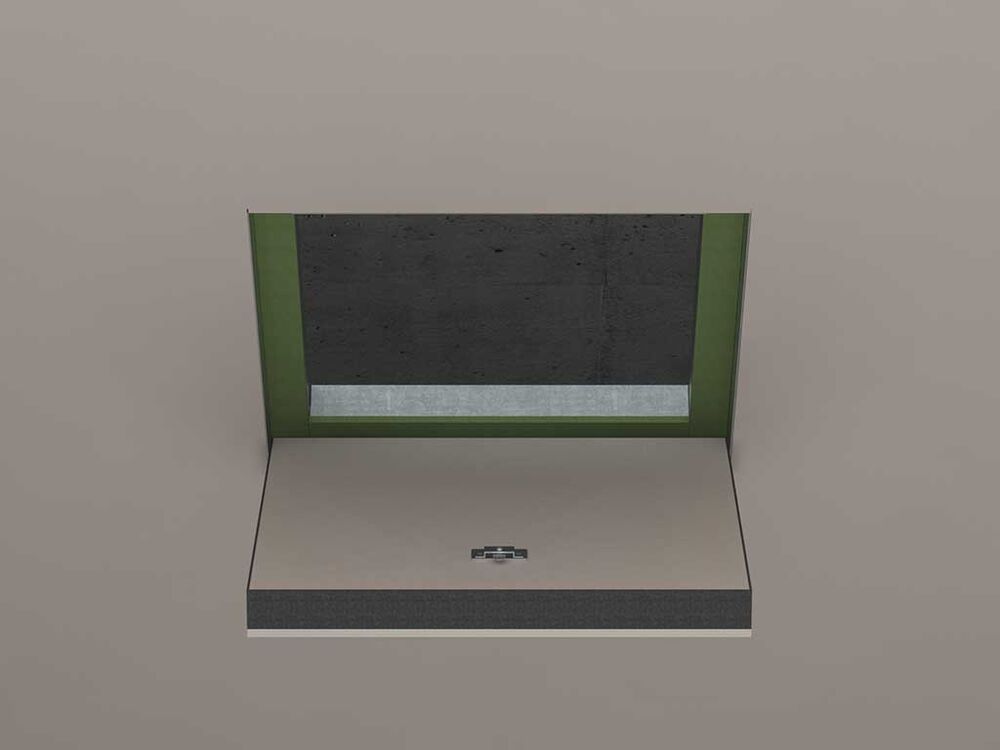

60 minutes fire rated PROMINA®-60 Hinged access panel - resisting fire from above and below

  • The access panels are assembled by bonding a three layer of PROMINA®-60 board, 3 x 12mm thick, forming a 36mm thick access panel and secure with hinge-fixing onto the steel frame. Subsequently, the access panel is closed using a budget lock.
60 minutes fire rated hinged access panel PROMATECT
60 minutes fire rated hinged access panel PROMATECT

Further Information

Advantages:
  • Easy to install
  • Can be finished or decorated to suit the surrounding building elements
  • Lightweight
  • Fire resistance performance
  • Tested and assessed in accordance with the BS 476: Part 22: 1987
Application:
  • Commercial, industrial, institutional, residential and high rise constructions, or in the restoration of existing buildings
Fire Resistance: 60 min
Product: PROMINA®-60 3 x 12mm
Exposure to fire: From above and below
Fire Resistance Rating: FRR -/60/60
Fire Resistance Class: EI 60
Fire Resistance: 60 min

Installation:

The access panels are assembled by bonding a three layer of PROMINA®-60 board, 3 x 12mm thick, forming a 36mm thick access panel and secure with hinge-fixing onto the steel frame.
