120 minutes fire rated PROMATECT® Hinged access panel - resisting fire from above and below

  • The access panels are assembled by bonding a 50mm thick PROMATECT®-L500 board to a 9mm thick PROMATECT®-H board, forming a 59mm thick composed panel and secure with hinge-fixing onto the steel frame. Subsequently, the access panel is closed using a budget lock.

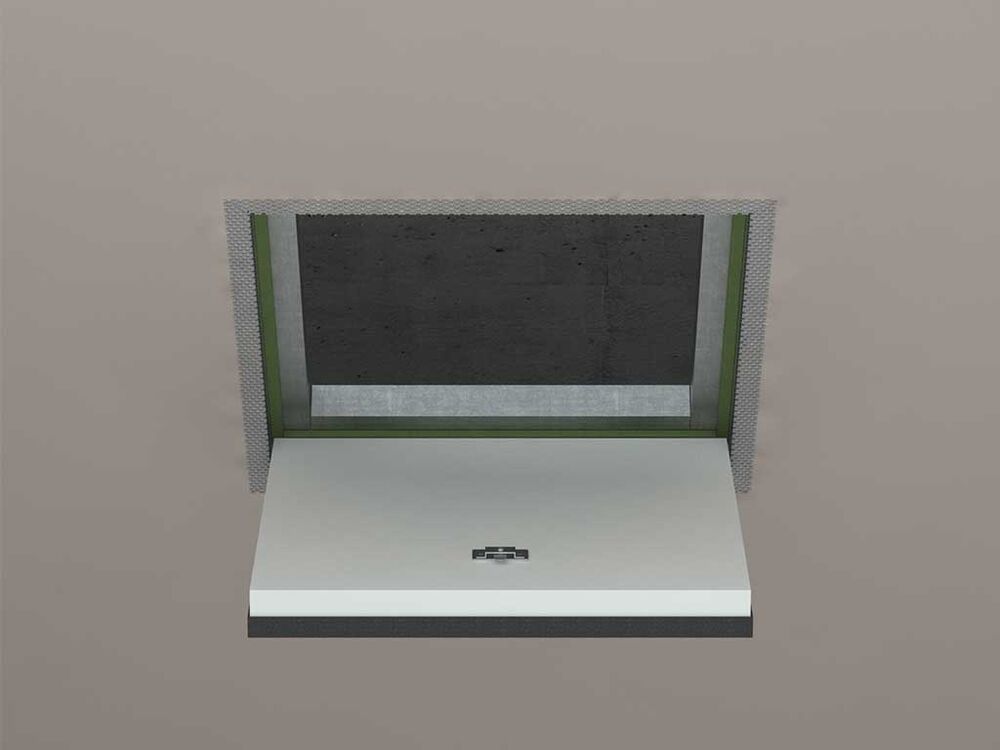

120 minutes fire rated hinged access panel PROMATECT
120 minutes fire rated hinged access panel PROMATECT

Further Information

Advantages:
  • Easy to install
  • Can be finished or decorated to suit the surrounding building elements
  • Lightweight
  • Fire resistance performance
  • Tested and assessed in accordance with the BS 475: Part 20: 1987 abd BS 476: Part 22: 1987
Application:
  • Commercial, industrial, institutional, residential and high rise constructions, or in the restoration of existing buildings
Fire Resistance: 120 min
Product: PROMATECT®-H 1 x 9mm + PROMATECT®-L500 1 x 50mm
Exposure to fire: From above and below
Fire Resistance Rating: FRR -/120/120
Fire Resistance Class: EI 120
Fire Resistance: 120 min

Installation:

The access panels are assembled by bonding a 50mm thick PROMATECT®-L500 board to a 9mm thick PROMATECT®-H board, forming a 59mm thick composed panel and secure with hinge-fixing onto the steel frame.
