PROMASEAL® CIH Collar

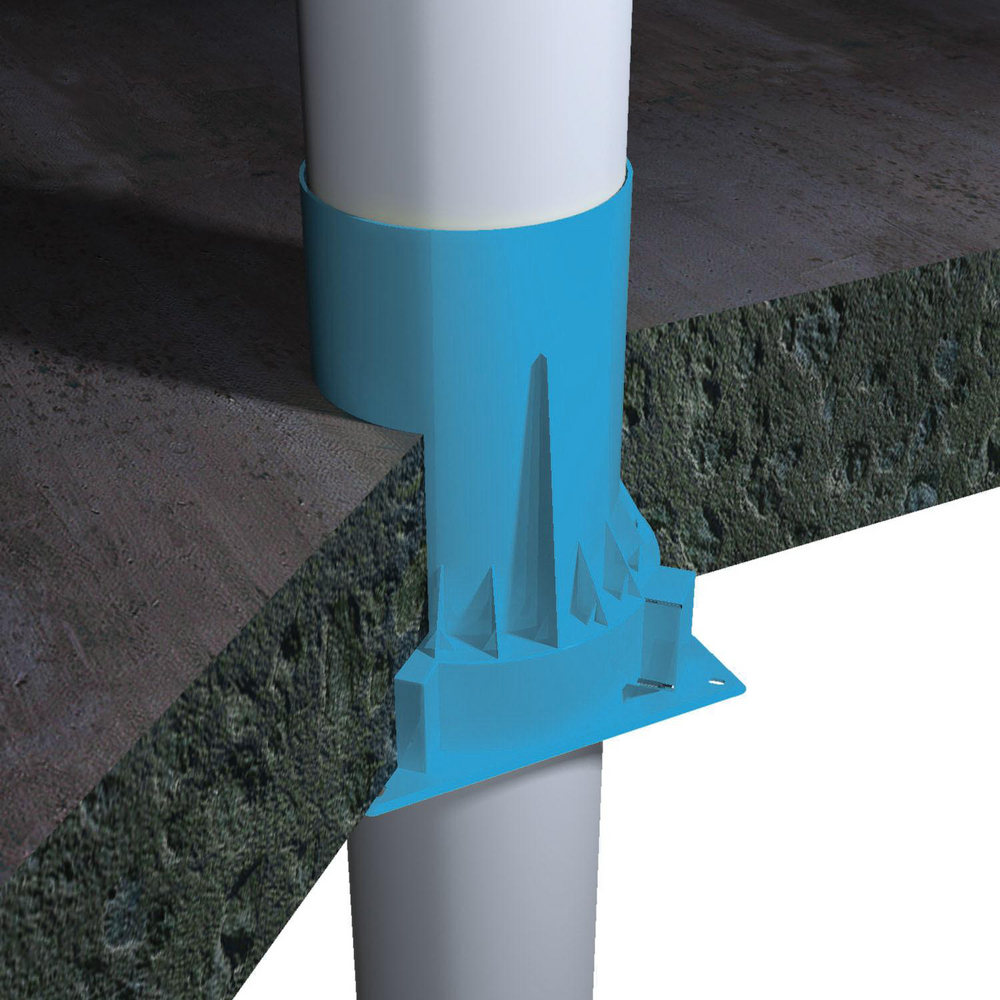

PROMASEAL® CIH Collar is designed to be fixed to formwork prior to the pouring of concrete floor slabs. It has been tested with various uPVC, Raupiano and HDPE pipes.

PROMASEAL® CIH Collar is available in THREE (3) sizes:

  • CIH 65: for pipes up to nominal 65mm
  • CIH 100: for pipes between nominal 40 & 100mm
  • CIH 150: for nominal 150mm

Please check with Promat before installing the collar to ensure the size and type of pipe being installed can be used with the particular size and type of collar.

PROMASEAL® CIH Collar
PROMASEAL® CIH Collar
PROMASEAL® CIH Collar

Further Information

Applications:

  • Plastic Pipe Stack Penetrations through concrete slabs
  • Check the Promat Selector or system certificates for specific pipe sizes tested and FRL's achieved.
  • Dimensions:
Code No. Pipe Nominal Diameter H D1 (ID) D2 (OD) D3 (Flange)
CIH65 40-65mm 250mm 95mm 130mm 154mm
CIH50 80-100mm 250mm 135mm 175mm 198mm
CIH150 150mm 250mm 180mm 230mm 253mm

Benefits:

  • Tested with uPVC, HDPE & Raupiano for 40 to 150mm
  • Tested with Raupiano for 40, 50, 75, 90 and 110mm
  • Sockets / Joiner can be installed within collar for uPVC
  • No pipe required for casting in
  • Multiple pipe size tested for each collar size
  • Removable cap for 65 & 100mm
Approx. Expansion Ratio (550 °C): 1:9
Approx. Expansion Temperature (°C): 185 °C
VOC Content (g/l): 0 g/l
Colour: Blue
Shelf Life (months): 120 months
Storage Conditions: Store in cool and dry conditions.
