PROMASEAL® Wall Collars FCW

PROMASEAL® Wall Collar is designed for insertion into fire resistant wall elements such plasterboard, concrete, masonry and has been tested on uPVC and HDPE pipes.

Similar to the PROMASEAL® Retrofit Collar, this is a split type collar to allow installation to existing pipework.

For installation information go to: https://www.promat.com/en-au/construction/our-know-how/watch-learn/

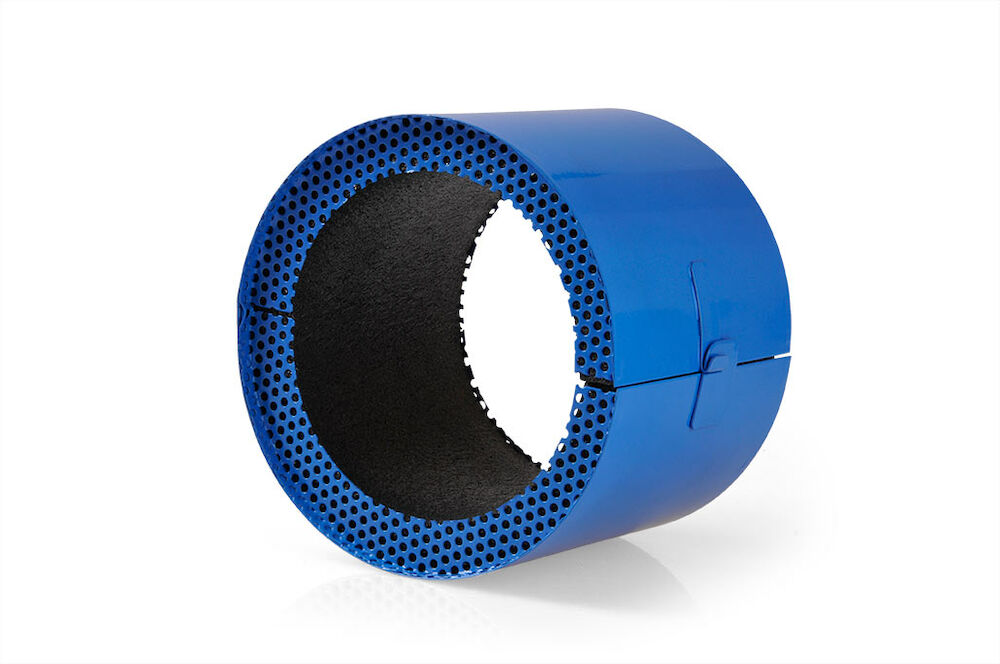

PROMASEAL® Wall Collar FCW

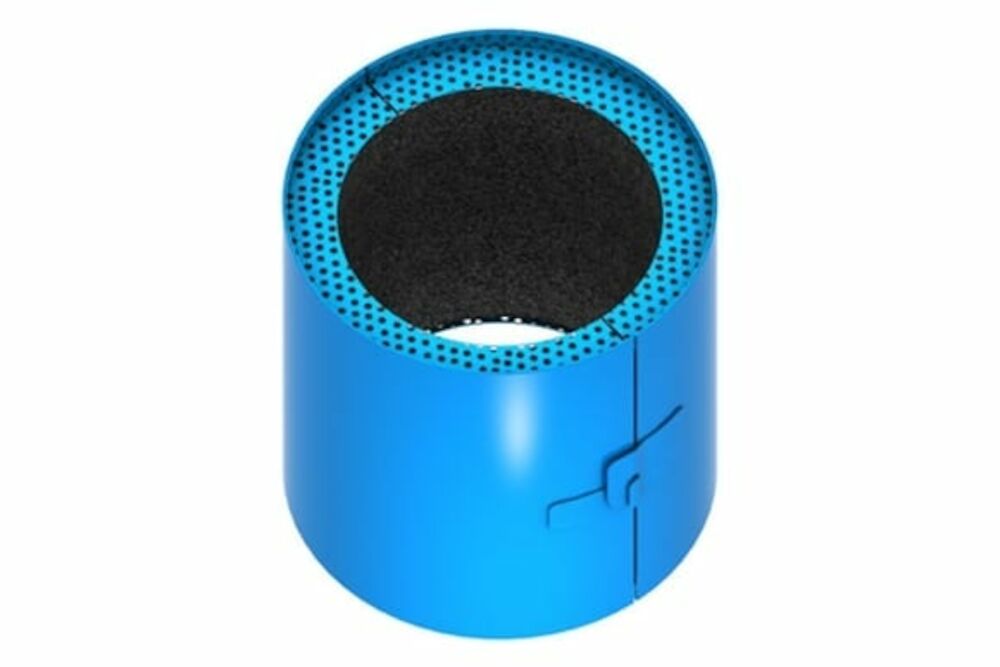

PROMASEAL® Wall Collar

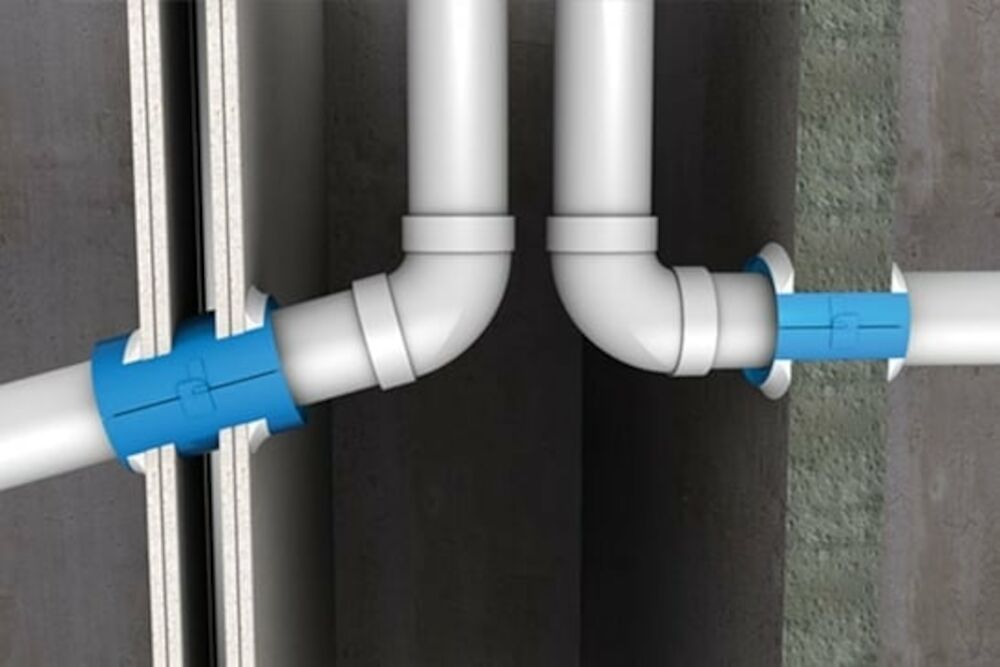

PROMASEAL Wall Collar (FCW) Installation
PROMASEAL® Wall Collar FCW

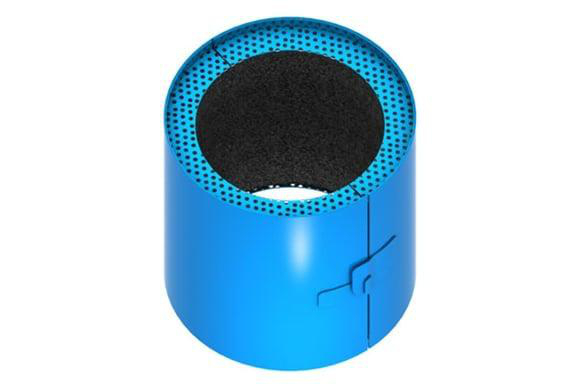

PROMASEAL® Wall Collar
PROMASEAL Wall Collar (FCW) Installation

Further Information

Applications:

  • Service Penetrations in Walls
  • Check the Promat Selector or system certificates for specific pipe sizes tested and FRL's achieved.
  • Dimensions:
Code No. Pipe Nominal Diameter Length D1 (OD) D2 (ID)
FCW40 40mm 120mm 80mm 47mm
FCW50 50mm 120mm 90mm 60mm
FCW65 65mm 120mm 107mm 75mm
FCW100 100mm 120mm 153mm 116mm
FCW150 150mm 120mm 203mm 164mm

Benefits:

  • Two-way protection with one collar
  • Tested for uPVC, HDPE and other pipe types.
  • 40 to 150mm
  • Tested in FR Plasterboard, Shaft and Vent Walls, Hebel/AAC & Speedpanel
Approx. Expansion Ratio (550 °C): 1:9
Approx. Expansion Temperature (°C): 185 °C
VOC Content (g/l): 0 g/l
Colour: Blue
Shelf Life (months): 120 months
Storage Conditions: Store in cool and dry conditions.
