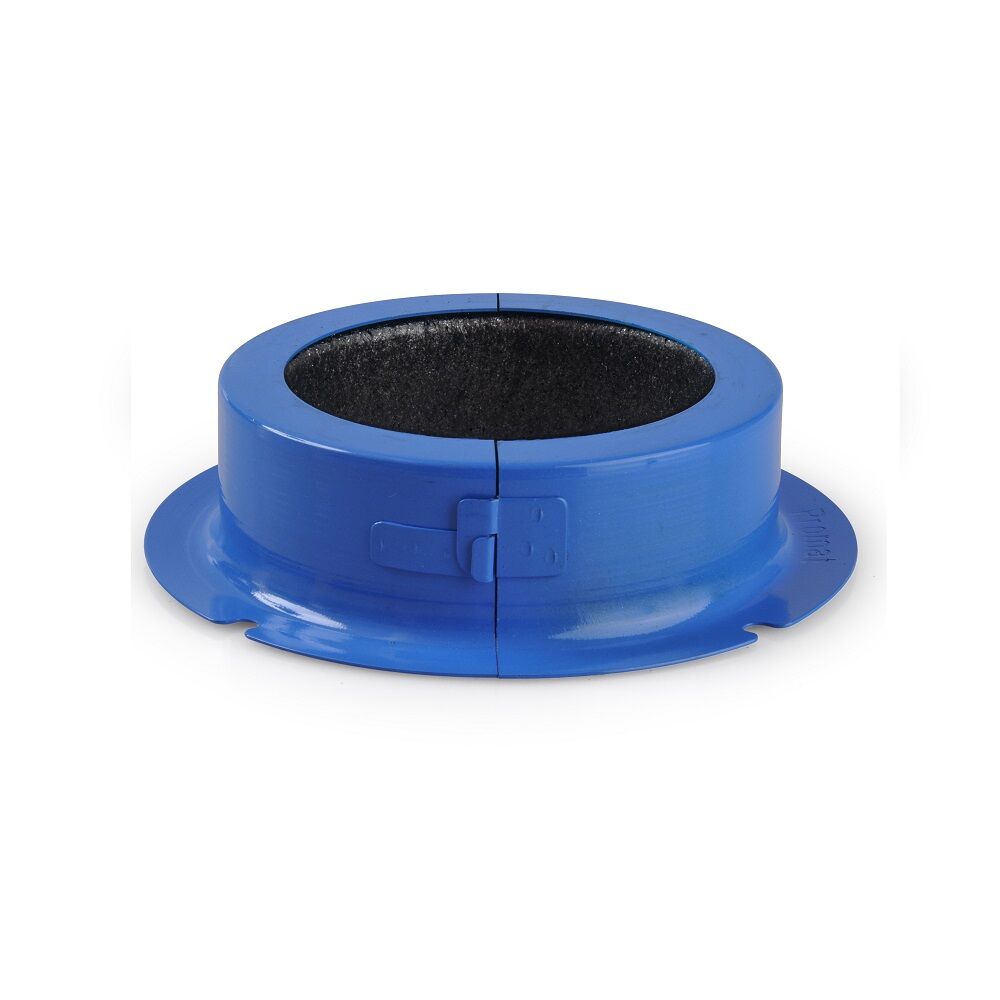

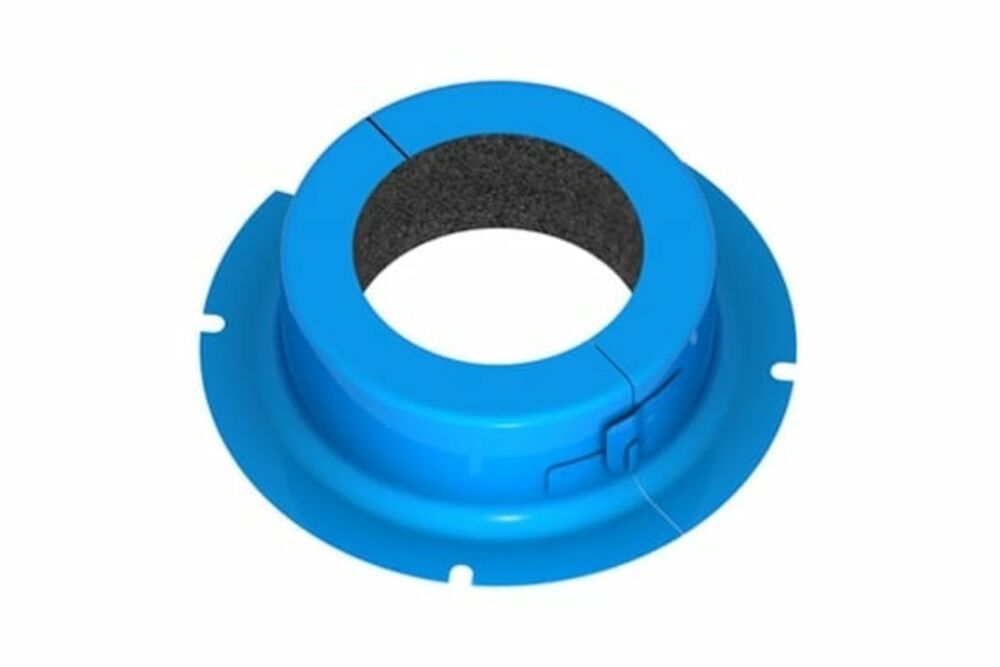

PROMASEAL®-FCS Retrofit Collars

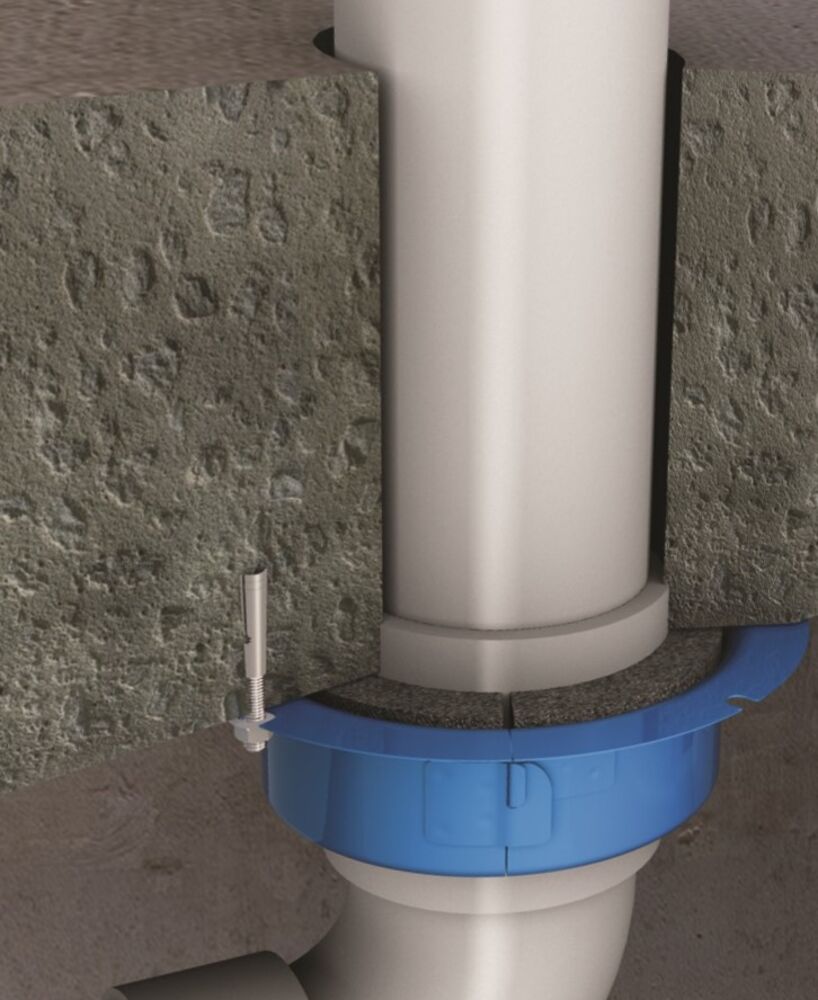

Circular based PROMASEAL® Retrofit Collar (FCS type) is designed to be fitted around installed pipes that pass through floor slabs and have been tested with uPVC up to 100mm diameter. The larger opening within the collars will accommodate uPVC pipe fittings. The split type collar can be retrofitted where necessary. It is available in a range of sizes to suit plastic pipes up to 110mm outside diameter.

For installation information go to: https://www.promat.com/en-au/construction/our-know-how/watch-learn/

Further Information

Applications:

  • uPVC Pipe Penetrations through slabs
  • Raupiano, Cables and Insulated Copper in Walls
  • Check the Promat Selector or system certificates for specific pipe sizes tested and FRL's achieved.
  • Dimensions:
Code No. Pipe Nominal Diameter H D1 D2 D3 (Flange)
FCS40 40mm 43mm 56mm 84mm 131mm
FCS50 50mm 43mm 70mm 98mm 145mm
FCS65 65mm 43mm 84mm 113mm 161mm
FCS100 100mm 53mm 127mm 167mm 214mm

Benefits:

  • Suitable for installation over sockets / joiners (uPVC only)
  • Tested with uPVC (inc pressure pipe) & Raupiano (100mm Wall Only) plastic pipes as well as Postmix and beer lines
  • Suitable for protecting cables and insulated copper pipes (Wall Only)
  • Available in 40, 50, 65 and 100mm
Approx. Expansion Ratio (550 °C): 1:9
Approx. Expansion Temperature (°C): 185 °C
VOC Content (g/l): 0 g/l
Colour: Blue
Shelf Life (months): 120 months
Storage Conditions: Store in cool and dry conditions.
