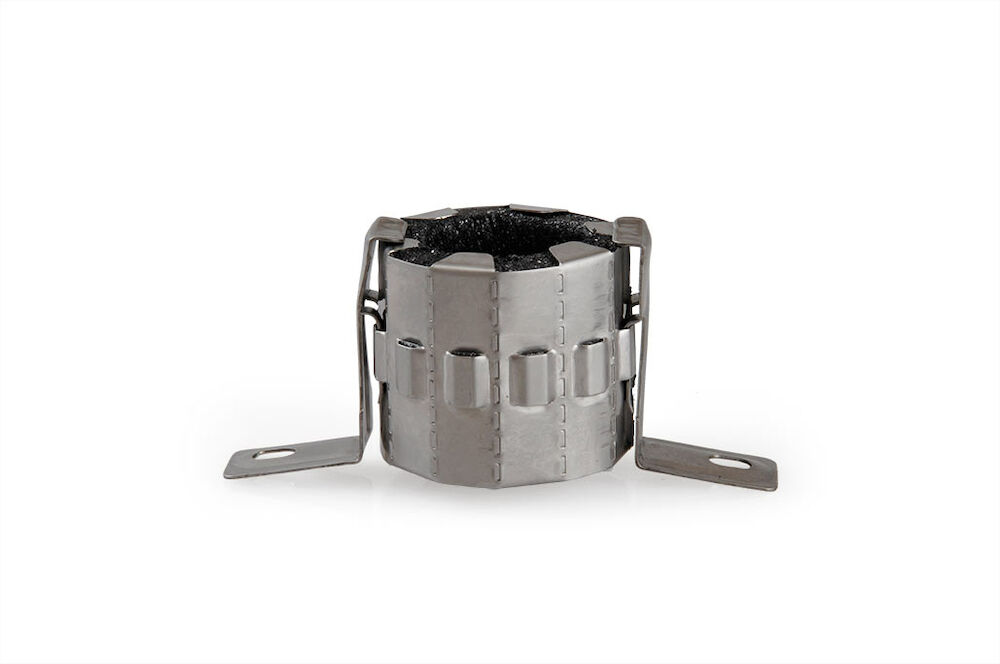

PROMASEAL® Conduit Collar

PROMASEAL® Conduit Collar is designed for retrofitting around small (<32mm) plastic conduit pipes that pass through fire floor or wall slabs. It comes in one size (32mm) and can be used on smaller diameter conduits without modification. The collar is fixed to the floors/walls with two brackets.

Insulation criteria will vary depending on types of the plastic pipes and the penetrating building element through which the collar passes.

The collar is supplied pre-made with an internal diameter of 32mm, however no change is required to the collar for pipes of smaller diameters.

PROMASEAL® Conduit Collar

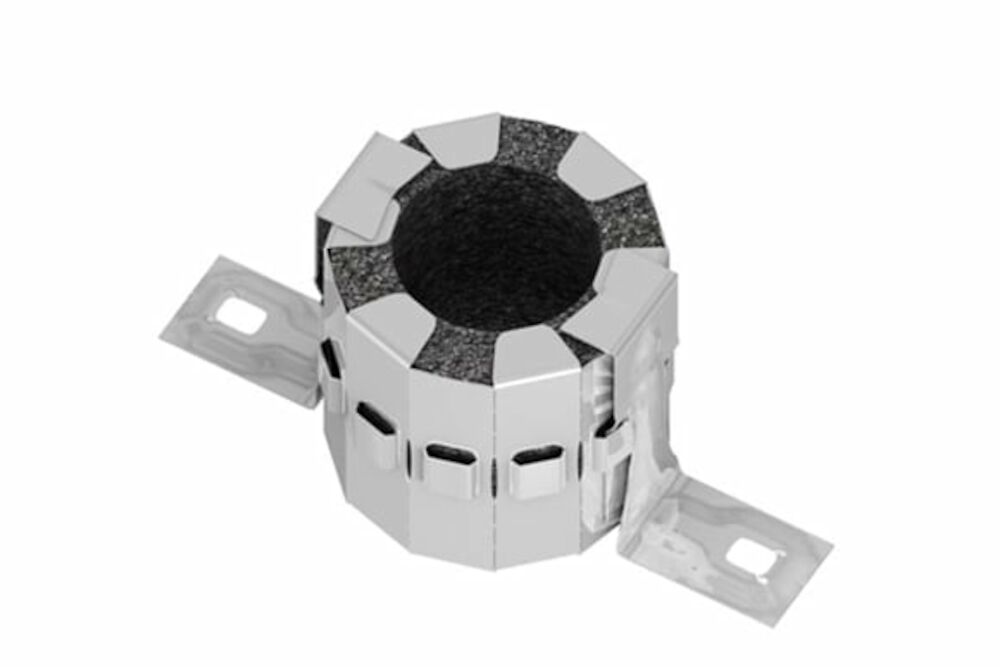

PROMASEAL® CFC

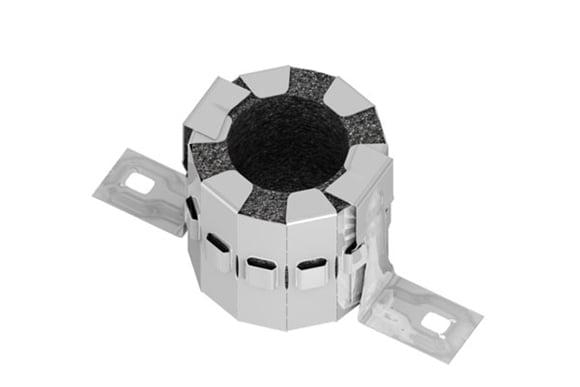

PROMASEAL® CFC

Further Information

Applications:

  • Fire Collar for plastic pipe and other service penetrations
  • Tested in walls (Plasterboard / Speedpanel / AAC / Hebel / Concrete)
  • Tested in concrete slabs & Promat SYSTEMFLOOR-FR Floor/Ceiling
  • See Promat Selector for full range of applications & uses

Benefits:

  • Suitable for pipes from 16 to 32mm
  • Tested with large variety of pipes including PEX, uPVC, PB, PEX/Al/PEX, Cables, Conduits and many others
  • One size collar for all pipe sizes from 16 to 32mm
Approx. Expansion Ratio (550 °C): 1:9
Approx. Expansion Temperature (°C): 185 °C
VOC Content (g/l): 0 g/l
Shelf Life (months): 120 months
Storage Conditions: Store in cool and dry conditions.
