120 minutes fire rated Partition (A) - PROMINA®-60

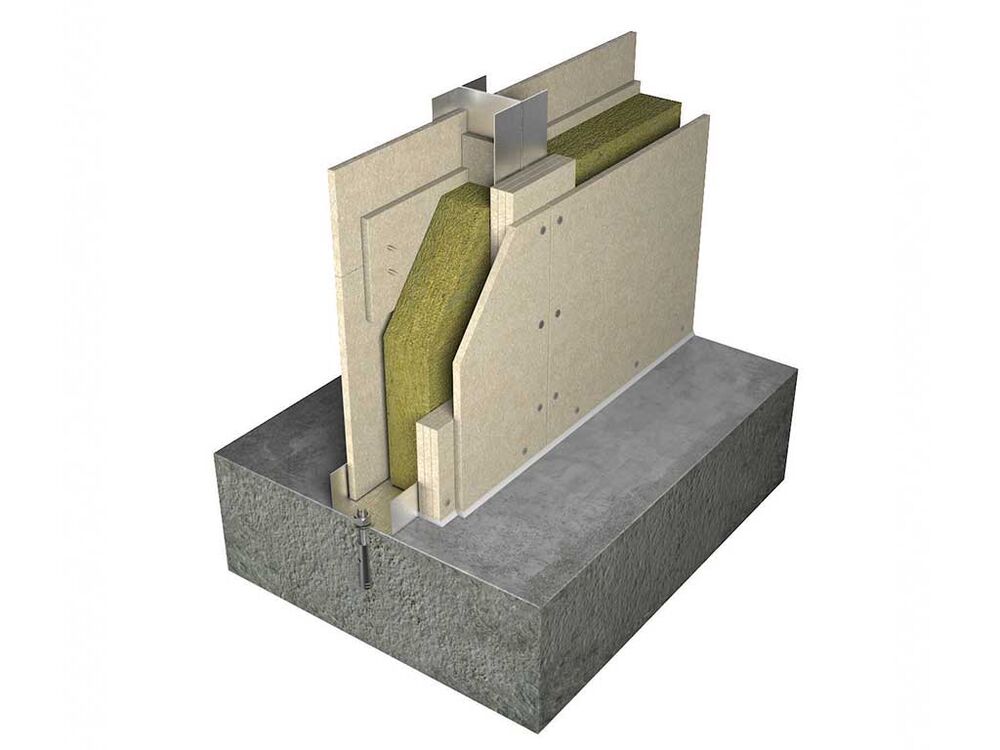

  • Assembling of a single layer of PROMINA®-60 board, 9mm thick, screwed onto both sides of galvanised steel studs along with a three layer of cover strips, mineral wool cavity infill in between the partition wall, for a total system thickness of 114mm.
120 minutes fire rated shaft wall partition (A) PROMINA-60
120 minutes fire rated shaft wall partition (A) PROMINA-60

Further Information

Advantages:
  • Time and cost effectiveness
  • Lightweight
  • Thermal resistance
  • Impact resistance
  • Fire resistance performance
  • Tested and assessed in accordance with the BS 476: Part 21: 1987
Application:
  • Commercial, industrial, institutional, residential and high rise constructions, or in the restoration of existing buildings
Fire Resistance: 120 min
Thickness: 114 mm
Product: PROMINA®-60 1 x 9mm
Exposure to fire: Both Sides
Fire Resistance Level: FRL -/120/120
Fire Resistance: 120 min
