360 minutes fire rated Self-Support Duct (E) - PROMATECT®-S

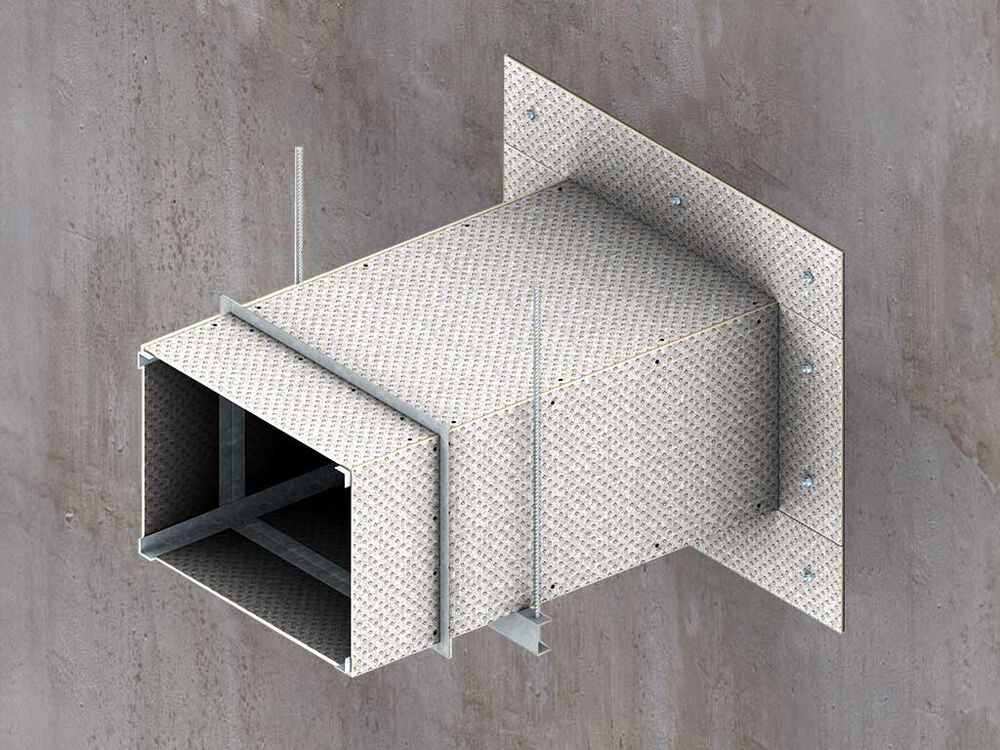

  • Assembling a self-supporting duct with a layer of PROMATECT®-S board, 9.5mm thick, forming an encasement by securing the board to the steel angles at the corner joints and to the steel flanges at the board joints using tek-screws.
240 minutes fire rated steel duct cladding system integrity only PROMATECT-S
240 minutes fire rated steel duct cladding system integrity only PROMATECT-S

Further Information

Advantages:

  • Good thermal properties
  • Excellent mechanical and thermal characteristics
  • Fire resistance performance
  • Tested and assessed in accordance with the BS 476: Part 24: 1987

Application:

  • Commercial, industrial, institutional, residential and high rise constructions, or in the restoration of existing buildings

Fire Resistance:

360 min

Product:

PROMATECT®-S 1 x 9.5mm

Exposure to fire:

Internal and external

Fire Resistance Level:

FRL 360/360/-
Fire Resistance: 360 min
Exposure to fire: Internal and external
Installation Method: Self-supporting duct
