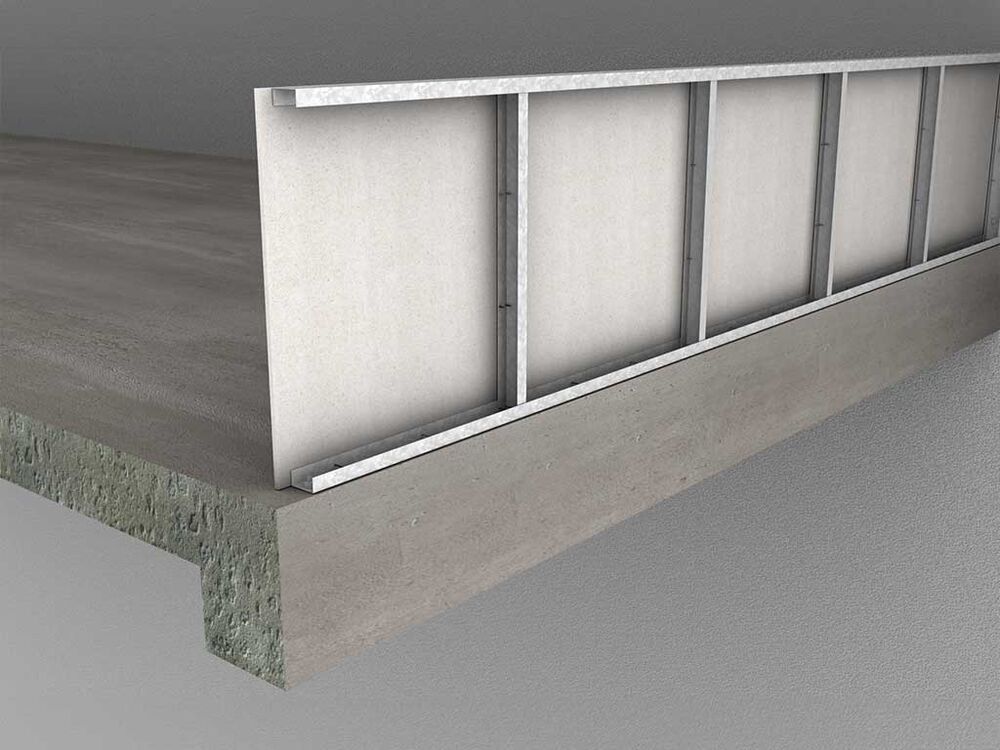

120 minutes fire rated PROMATECT®-H Fire barrier system or Parapet wall system integrity only - resisting fire from both sides

  • Assembling of a single layer of PROMATECT®-H board, 9mm thick, screw-fixed on single side of the steel channel flange for a total system thickness of 60mm.

Further Information

Advantages:
  • Time and cost effectiveness
  • Lightweight
  • Thermal resistance
  • Impact resistance
  • Fire resistance performance
  • Tested and assessed in accordance with the BS 476: Part 22: 1987
Application:
  • Commercial, industrial, institutional, residential and high rise constructions, or in the restoration of existing buildings
Fire resistance: 120 min
Thickness: 60 mm
Product: PROMATECT®-H
Board Thickness: 9 mm
Exposure to fire: Both Sides
Fire Resistance Level: FRL -/120/-
Fire Resistance Class: e120
Fire resistance: 120 min
