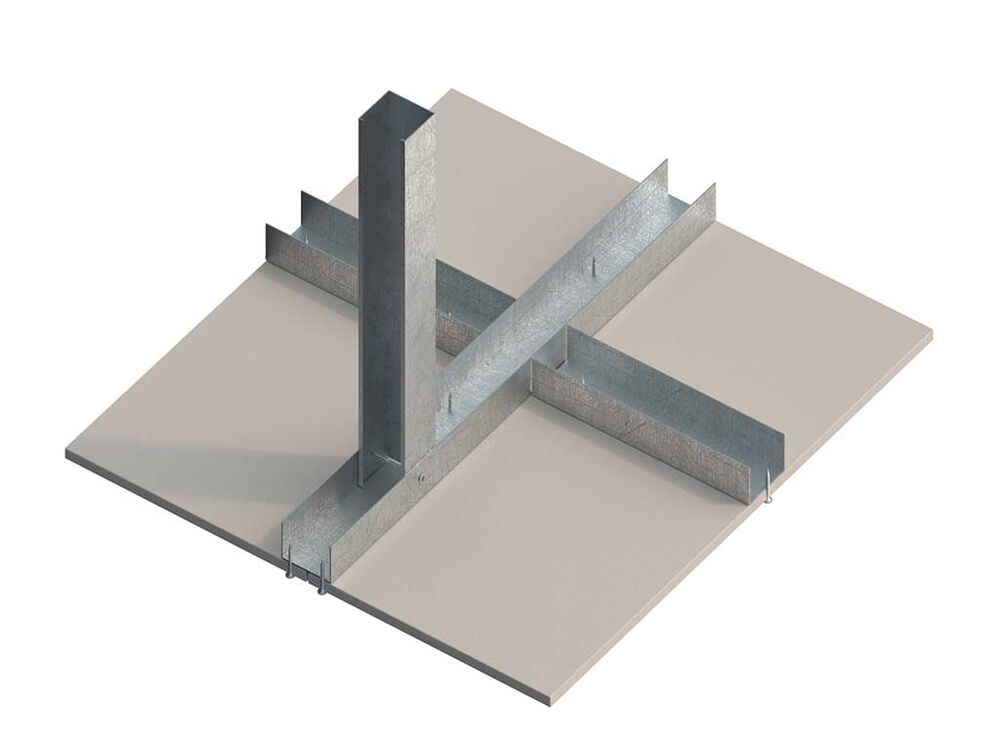

240 minutes fire rated PROMATECT®-H Suspended ceiling concealed grid type - resisting fire from above and below

  • Assembling of a single layer of PROMATECT®-H board, 9mm thick, screw-fixed underside of the steel grid system for a total system thickness of 36mm.
240 minutes fire rated suspended ceiling concealed grid type PROMATECT-H
240 minutes fire rated suspended ceiling concealed grid type PROMATECT-H

Further Information

Advantages:
  • Time and cost effectiveness
  • Lightweight* Thermal resistance
  • Impact resistance
  • Fire resistance performance
  • Tested and assessed in accordance with the BS 476: Part 22: 1987
Application:
  • Commercial, industrial, institutional, residential and high rise constructions, or in the restoration of existing buildings
Fire resistance: 240 min
Thickness: 36 mm
Product: PROMATECT®-H
Board Thickness: 9 mm
Exposure to fire: Both Sides
Fire Resistance Level: FRL -/240/-
Fire Resistance Class: e120
Fire resistance: 240 min

Installation:

Assembling of a single layer of PROMATECT®-H board, 9mm thick, screw-fixed underside of the steel grid system for a total system thickness of 36mm.
