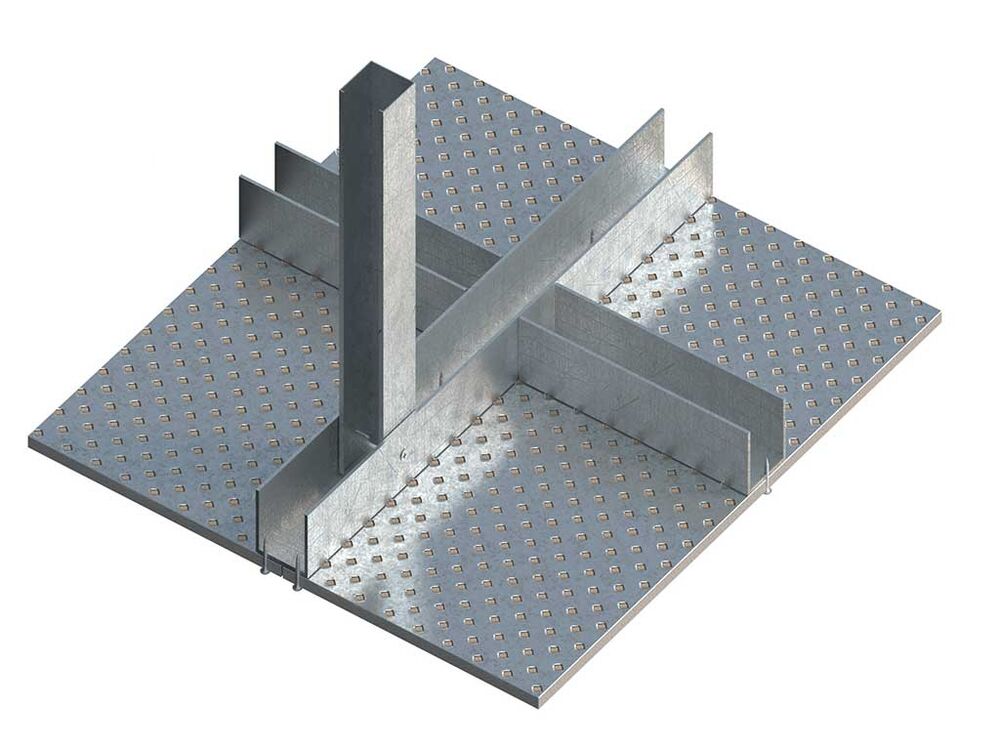

120 minutes fire rated PROMATECT®-S Suspended ceilings concealed grid type - resisting fire from above and below

  • Assembling of a single layer of PROMATECT®-S board, 6mm thick, screw-fixed underside of the steel grid system for a total system thickness of 56mm.
120 minutes fire rated suspended ceilings concealed grid type PROMATECT-S
120 minutes fire rated suspended ceilings concealed grid type PROMATECT-S

Further Information

Advantages:
  • Time and cost effectiveness
  • Lightweight* Thermal resistance
  • Impact resistance
  • Fire resistance performance
  • Tested and assessed in accordance with the BS 476: Part 22: 1987
Application:
  • Commercial, industrial, institutional, residential and high rise constructions, or in the restoration of existing buildings
Fire resistance: 120 min
Thickness: 56 mm
Product: PROMATECT®-S
Board Thickness: 6 mm
Exposure to fire: Both Sides
Fire Resistance Level: FRL -/120/-
Fire Resistance Class: e120
Fire resistance: 120 min

Installation:

Assembling of a single layer of PROMATECT®-S board, 6mm thick, screw-fixed underside of the steel grid system for a total system thickness of 56mm.
