SUPALUX®

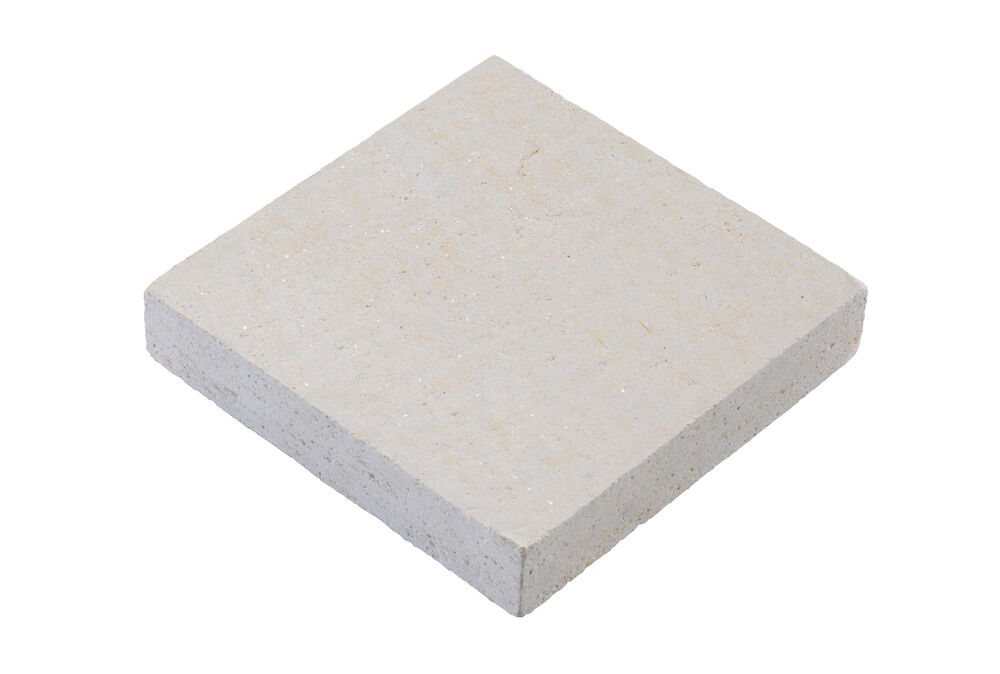

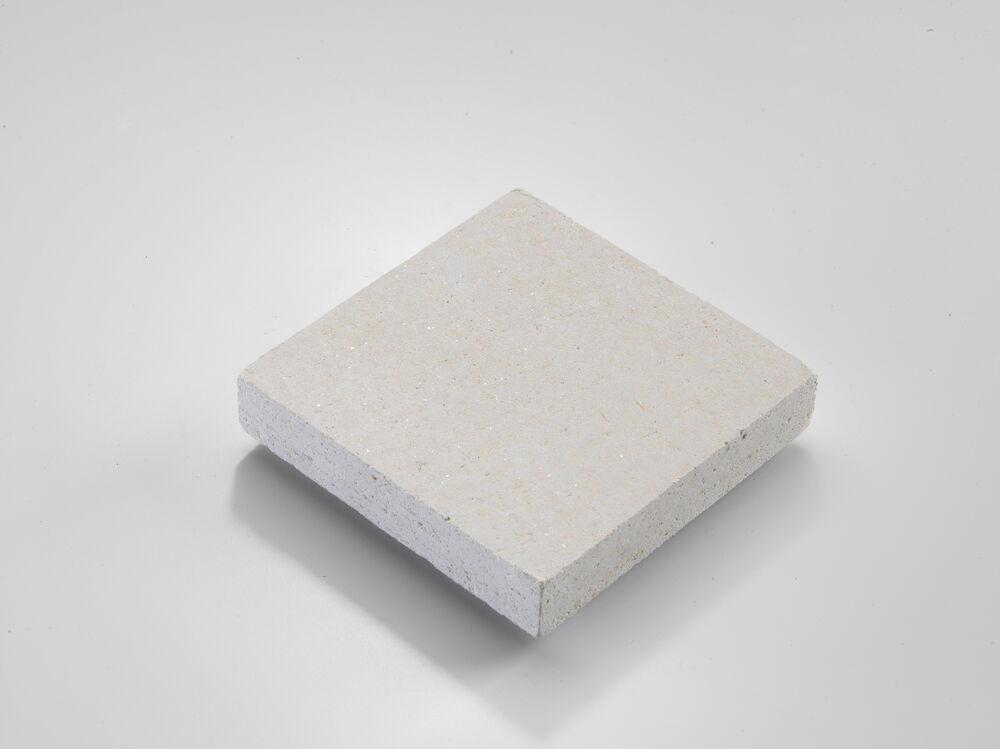

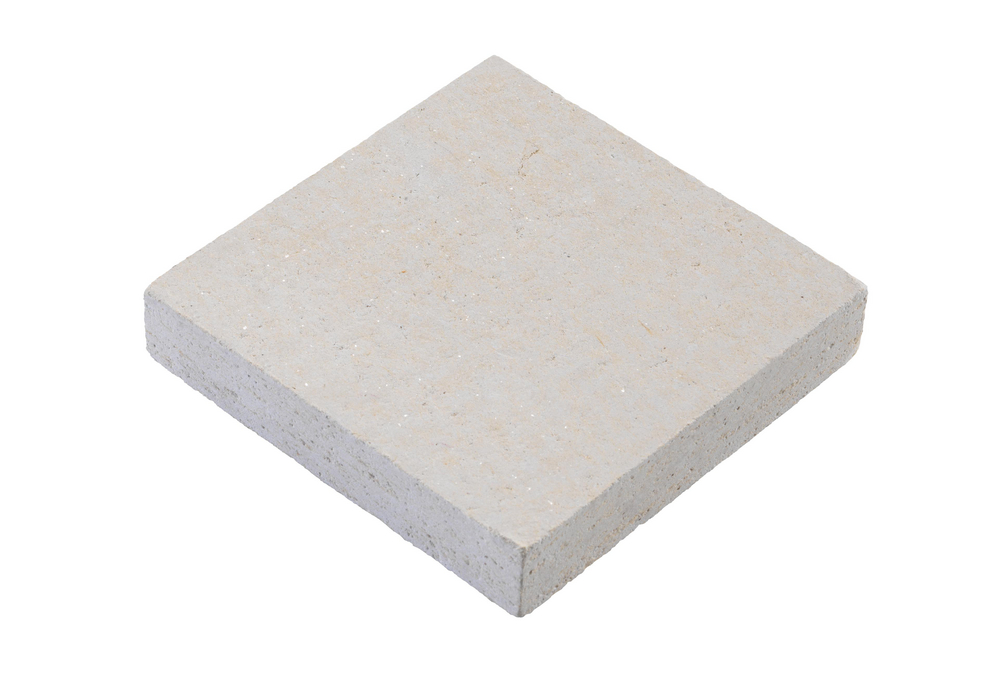

SUPALUX® is a non-combustible calcium silicate board reinforced with selected fibres and fillers. It is formulated without inorganic fibres and does not contain formaldehyde.

SUPALUX® is off-white in colour and has a smooth finish on one face with a sanded reverse face. SUPALUX® can be left undecorated or easily finished with paints, wallpapers or tiles. SUPALUX® is resistant to the effects of moisture and will not physically deteriorate when used in damp or humid conditions. Performance characteristics are not degraded by age or moisture. SUPALUX® is also produced as bevelled edge panels for suspended ceilings using a concealed grid system

SUPALUX®

Further Information

Applications:

  • Structural steel fire protection
  • Internal drywalls
  • Internal lining to external walls
  • Suspended and self-supporting hanger free ceilings
  • Self-supporting airduct or cladding to steel sheet metal ducts
  • Enclosures to E&M services
  • Smoke screens
  • Flame barrier
  • Parapet & spandrel walls
  • Upgrading fire performance of reinforced concrete
  • Upgrading fire performance of masonry construction

Benefits:

  • 30 - 240 minutes fire resistance
  • 30 plus years proven performance
  • Damp or humid conditions
  • High temperature environments (up to 80°C)
  • Slim constructions
  • Multiple applications
  • Early installation for faster build

Reaction to fire: A1, non-combustible
Use Category: Y, Z1, Z2
Approx. Dry Density (kg/m³): 950 kg/m³
Moisture Content Min (%): 6 %
Approx. Thermal Conductivity @ 20 °C (W/m°K): 0.17 W/m K
Bending Strength Longitudinal (N/mm²): 4.5 N/mm²
Tensile Strength Longitudinal (N/mm²): 0.99 N/mm²
Compressive Strength (N/mm² perpendicularly to the board surface): 9.3 N/mm²

Please note
All physical and mechanical values are averages based on standard production and tested according to internal procedures. The typical values are given for guidance. The figures can change dependent on the test methods used. If a particular value is of prime importance for a specification, please consult Promat Technical Department.
