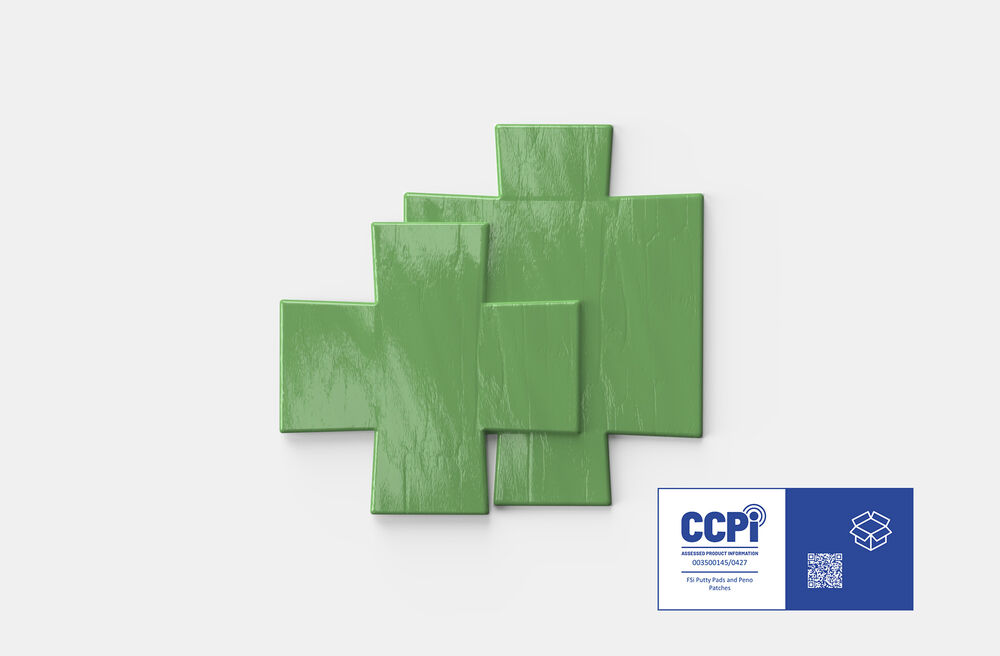

NS Putty® Pads

NS Putty® Pads are pre-cut ablative pads designed for easy application around single and double electrical sockets where fire resistance must be upheld in the event of a fire.

Further Information

Applications:

  • To reinstate fire resistance through walls where single and/or double plastic or metal socket back boxes require fire resistance
  • Where single and/or double plastic or metal socket back boxes require improved acoustic performance

Benefits:

  • Tested in accordance with BS EN 1366-3: 2021 (Fire resistance tests for service installations - Penetration seals)
  • Warringtonfire Approvals WF 524291b/R and WF 524291a
  • Used for protection of plastic and metal back boxes
  • Pre-cut and easy to apply, and supplied in preformed shape to fit most common socket boxes
  • No cure time required
  • Dry fit system
  • Halogen-free, resists fungi and vermin
  • Offers a cold smoke seal
  • High tack adhesion, pliable and mouldable with excellent self-bonding properties
  • No ancillary materials required
  • Acoustic performance to XXXXXdb
Approx. Expansion Temperature (°C): 180 °C
Solids Content (%): 90 %
Use Category: X, Y1, Y2, Z1, Z2
Colour: Green
Storage Temperature Min (°C): 5 °C
Storage Temperature Max (°C): 35 °C
