PROMATECT®-H
Safe, secure, fire resistant mineral board to protect concrete beams and columns, slabs and walls
PROMATECT®-H complies with UK fire and building regulations
It provides up to 30 - 240 minutes fire resistance when tested to EN13381-3: 2015
Easy to specify
Performance is achieved through the use of only two thicknesses (12mm and 25mm)
Easy to install
Can withstand damp or humid conditions without physically deteriorating or losing its fire protection performance

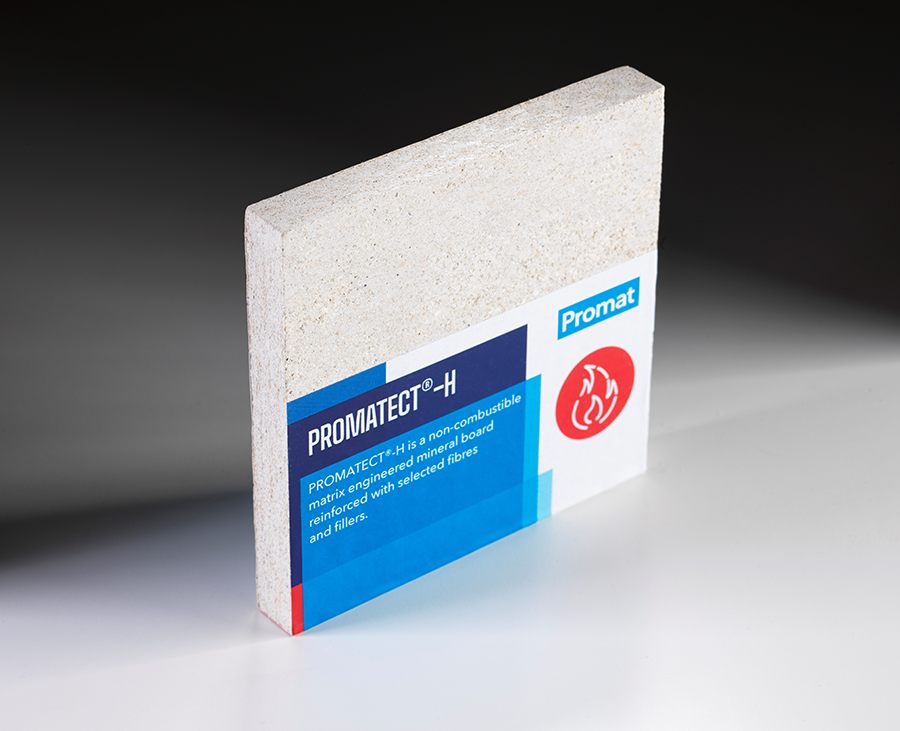

PROMATECT®-H is a non combustible matrix engineered calcium silicate board reinforced with selected fibres and fillers, and does not contain formaldehyde.
Used in the protection of concrete columns and beams, and to upgrade concrete slabs and walls it is off-white in colour and has a smooth finish on one face with a sanded reverse face. The board can be left undecorated or easily finished with paints, wallpapers or tiles.
It is resistant to the effects of moisture and will not physically deteriorate when used in damp or humid conditions.
Resources to help you work with PROMATECT®-H in your project
Why specify PROMATECT®-H on your project?
Why specify PROMATECT®-H on your project?
- Reliable solution for your project - specifying PROMATECT®-H gives you confidence your project will comply with UK fire and building regulations
- Provides 30 - 240 minutes fire resistance when tested to EN13381-3: 2015
- Protect concrete beams and columns, slabs and walls, and preserve their loadbearing capabilities.
Why install PROMATECT®-H on your project?
Why install PROMATECT®-H on your project?
- Proven solution for your project - can withstand damp or humid conditions without physically deteriorating, or losing any of its fire protection performance
- Easy to install - frameless system minimises space needed to install
- It’s a dry process - meaning you can work easily around other trades
When it comes to protecting what really matters - we don't compromise.
Further Information
Application:
- Protection of concrete columns and beams
- Upgrade of concrete slabs
- Upgrade of concrete walls
Benefits:
- 30 - 240 minutes fire resistance when tested to EN13381-3: 2015
- Fire Reaction Class: A1 Non Combustible EN13501-1
- Damp or humid conditions
- High temperature environments (up to 80°C)
- Slim constructions
- Early installation for faster build
- Performance characteristics are not degraded by age or moisture
Technical Data and Properties:
Fire Reaction Class: A1, non-combustible
Use category: Y, Z1, Z2
Alkalinity: 12 pH
Dry Density: 870 kg/m³
Water vapour diffusion resistance factor (μ): 20
Thermal Conductivity at 20°C: 0.175 W/m K
Flexural Strength Longitudinal: 7.6 N/mm²
Tensile Strength Longitudinal: 4.8 N/mm²
Compressive strength: 9.3 N/mm²
Downloads
2 documents found
New
Technical Datasheet
TDS 174 - PROMATECT®-H upgrade of the fire resistance of concrete structures.
TDS 174 - PROMATECT®-H upgrade of the fire resistance of concrete structures.
New
Safety Datasheet
Promatect-H SDS
