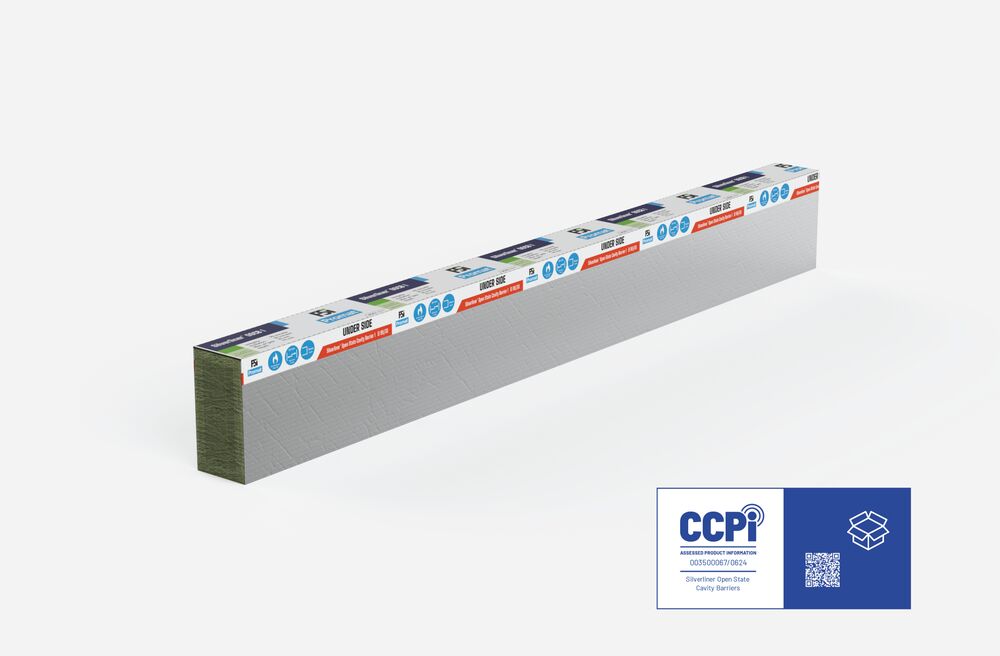

Silverliner® OSCB

Silverliner® Open State Cavity Barrier (OSCB) has been developed to protect the voids between the outer façade and the inner construction element of the building. The product is designed for use in a ventilated façade, and allows for 25mm or 50mm linear air gap to ensure movement of air and drain any moisture within the facade. The aluminium foil restricts fibre migration and offers a class ‘0’ rating. In the event of a fire the intumescent outer edge of the product will expand and close the ventilation gap between the product and the façade preventing the passage of fire and smoke from one compartment to another.

The Silverliner® Open State Cavity Barrier range is numbered from OSCB1 - OSCB5 dependent upon void range, air gap and fire performance. Please see the TDS for full information.

Further Information

Applications:

  • Between the inner substrate and the external building envelope
  • In conjunction with Paraflam® where vertical Cavity Barriers are required
  • Where movement of air and moisture is required
  • Systems to cover void ranges from 2mm - 550mm

Benefits:

  • Tested in accordance with ASFP TGD19 “Open State” Cavity Barrier used in External Envelope or Fabric of Buildings
  • Fire resistance of up to EI120
  • IFCC Approval - IFCC 1672
  • Assumed working life of 25 years
  • Non-combustible core
  • ‘Dry fit’ solution, no cure time
  • Fast installation using brackets
