PROMASTOP®-IM Cbox 125 Fire stopping circular box - Product handling guideline

PROMASTOP®-IM Cbox 125 Fire stopping circular box - Product handling guideline

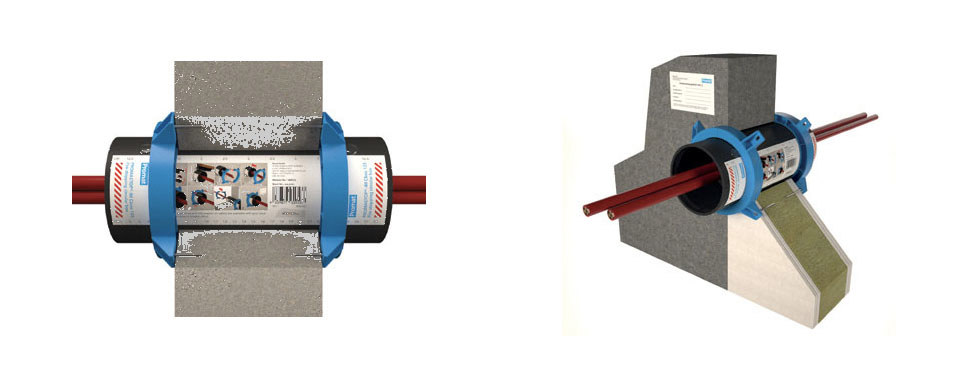

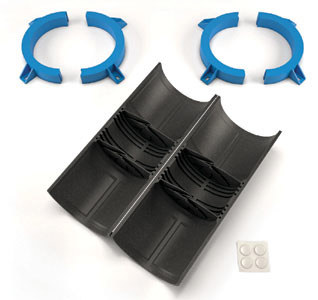

PROMASTOP®-IM Cbox 125 is an injection moulded, easy to install fire stopping cable penetration system for flexible walls, rigid walls and rigid floors.

General information

  • PROMASTOP®-IM Cbox 125 is classified up to EI 120;
  • The system is designed to be used for cables up to a diameter of 21 mm and cable bundles with a maximum diameter of 100 mm;
  • PROMASTOP®-IM Cbox 125 is designed to allow easy installation of additional cables;
  • A cold gas sealing is already integrated in the system;
  • Use category: type X;

System installation details

Please refer to ETA, classification report or handbook for installation details on cables.

Safety information

Safety information sheet available on request.

PROMASTOP®-IM Cbox 125 Fire stopping circular box - Product handling guideline
PROMASTOP®-IM Cbox 125 Fire stopping circular box - Product handling guideline
PROMASTOP®-IM Cbox 125 Fire stopping circular box - Product handling guideline
PROMASTOP®-IM Cbox 125 Fire stopping circular box - Product handling guideline

For more installation details refer to classification report or ETA.

The products must be applied in accordance with regulations for construction material in general and fire stopping in particular, with the applicable national test certificates and approvals and in accordance with applicable national building regulations. Products may only be applied by trained professionals with adequate knowledge and only after thorough review of the installation guidelines, safety data sheets, national test certificates and approvals. For additional information on how and where to use this product please refer to the Promat handbook or contact your local Promat office. All the relevant documents can be obtained free of charge from the local Promat office. For Non European Union countries separate guidelines are relevant. If required please contact us.
