240 minutes fire rated Building Services Enclosure - SUPALUX®

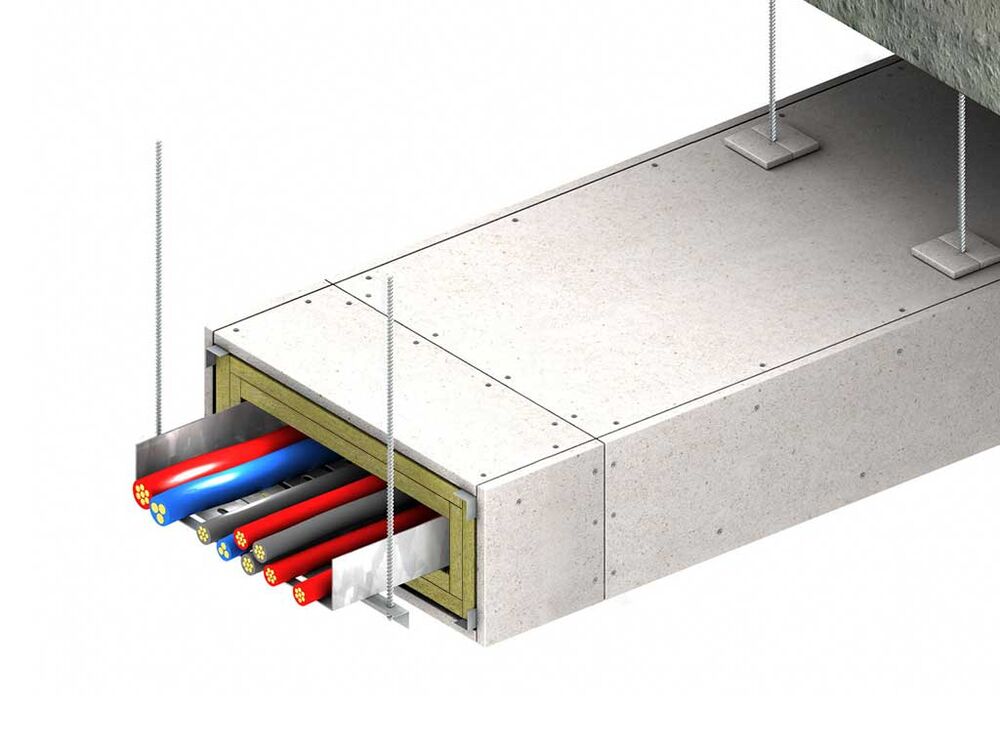

  • Assembling a building services enclosure with a layer of SUPALUX® board, 25mm thick, to form an encasement by securing the board to the steel angle at corner joints and to the channel collar frame at the board joints using screws. Infill the encasement with 2 layer of mineral wool insulation. Cover strips over the hanger rod penetration junction.
240 minutes fire rated Mechanical and Electrical building services enclosure protection SUPALUX
240 minutes fire rated Mechanical and Electrical building services enclosure protection SUPALUX

Further Information

Advantages:

  • Good thermal properties
  • Excellent mechanical and thermal characteristics
  • Tested and assessed in accordance with the BS 476: Part 20: 1987

Application:

  • Commercial, industrial, institutional, residential and high rise constructions, or in the restoration of existing buildings

Fire Resistance:

240 min

Product:

SUPALUX® 1 x 25mm

Exposure to fire:

Internal and external

Fire Resistance Level:

REI -/240/240
Fire Resistance: 240 min
Exposure to fire: Internal and external
Installation Method: Building services
